Manufacturing Insight: Cnc Machining Of Parts
Honyo Prototype CNC Machining Services
Honyo Prototype delivers precision CNC machining solutions engineered to accelerate your product development cycle from concept to functional prototype or low-volume production. Our advanced 3-, 4-, and 5-axis machining centers consistently achieve tight tolerances down to ±0.0002 inches across complex geometries, ensuring dimensional accuracy and repeatability critical for aerospace, medical, and industrial applications. We specialize in rapid turnaround without compromising quality, enabling you to validate designs and iterate faster in competitive markets.
Our technical expertise spans a comprehensive range of materials including aluminum alloys, stainless steel, titanium, brass, and high-performance engineering plastics such as PEEK and Delrin. Each component undergoes rigorous in-process and final inspection using calibrated CMMs and optical comparators, adhering to ISO 9001 standards. This commitment to metrology-driven manufacturing guarantees parts meet stringent functional requirements while minimizing scrap and rework.
Eliminate quote delays with Honyo’s Online Instant Quote system. Upload your CAD file in STEP, IGES, or native formats to receive a detailed, transparent cost estimate within hours—not days. The platform dynamically analyzes geometry complexity, material selection, and quantity to provide accurate pricing and lead time projections, empowering engineering teams to make informed decisions immediately. This digital workflow integration reduces administrative friction, allowing you to proceed from design validation to physical part production seamlessly.
Partner with Honyo Prototype to leverage scalable CNC capabilities that prioritize precision, speed, and technical collaboration, transforming your engineering specifications into high-integrity components on schedule.
Technical Capabilities
CNC machining is a subtractive manufacturing process that utilizes computer-controlled cutting tools to produce high-precision parts from various materials. At Honyo Prototype, we specialize in multi-axis milling and turning operations to achieve complex geometries and tight tolerances required in aerospace, medical, automotive, and industrial applications.
Our capabilities include 3-axis, 4-axis, and 5-axis CNC milling for intricate 3D contours and reduced setup complexity, as well as precision CNC turning for cylindrical components. We maintain tight tolerances down to ±0.005 mm (±0.0002″) depending on part geometry and material. All processes are supported by in-process inspection and final first-article reporting (FAI) when required.
Below is a summary of our technical specifications for CNC machining services:
| Parameter | Specification |
|---|---|
| Milling Capabilities | 3-Axis, 4-Axis (indexed), 5-Axis (continuous simultaneous) |
| Turning Capabilities | CNC Turning (2-axis and multi-axis with live tooling) |
| Tolerance (Standard) | ±0.025 mm (±0.001″) |
| Tight Tolerance | Achievable down to ±0.005 mm (±0.0002″) with process control and inspection |
| Surface Finish (As Machined) | 3.2 μm (125 μin) typical; down to 0.8 μm (32 μin) with polishing or grinding |
| Materials – Metals | Aluminum (6061, 7075, 2024), Steel (1018, 4140, Stainless 303, 304, 316) |
| Materials – Plastics | ABS, Nylon (6/66), PEEK, Delrin (POM), Polycarbonate, PTFE |
| Max Work Envelope (Milling) | 1000 mm × 600 mm × 500 mm (39″ × 23.6″ × 19.7″) |
| Max Work Envelope (Turning) | Ø300 mm × 500 mm (12″ dia × 20″ length) |
| Tooling & Spindles | High-speed spindles up to 24,000 RPM; carbide and ceramic tooling options |
| Coolant & Lubrication | Flood coolant, mist coolant, and dry machining options |
| Inspection Equipment | CMM, optical comparators, micrometers, calipers, surface roughness testers |
| Certifications | ISO 9001:2015 compliant processes; full traceability and material certifications available |
We select optimal toolpaths, cutting parameters, and fixturing strategies based on part geometry and material to ensure dimensional accuracy and surface integrity. For tight-tolerance components, we employ thermal stability protocols and post-process metrology to validate conformance.
From CAD to Part: The Process
Honyo Prototype CNC Machining Process Overview
Our end-to-end CNC machining workflow integrates automation with engineering expertise to deliver precision parts efficiently. The process begins with structured client input and concludes with certified delivery, ensuring technical rigor at every phase.
CAD File Submission
Clients initiate the process by uploading native CAD files via our secure portal, supporting STEP, IGES, Parasolid, and native formats from SolidWorks, Fusion 360, and Creo. File validation checks for geometry integrity, unit consistency, and feature completeness occur immediately. Incomplete submissions trigger automated notifications specifying required corrections, minimizing pre-production delays.
AI-Powered Quoting System
Uploaded designs enter our proprietary AI quoting engine, which analyzes geometric complexity, material requirements, tolerances, and surface finishes against real-time machine capacity and material costs. The system generates a preliminary quote within 2 hours, including estimated lead time, material waste calculations, and cost drivers. Critical or non-standard features exceeding AI validation thresholds are escalated to senior process engineers for manual review, ensuring quote accuracy for high-complexity parts.
Engineer-Led DFM Analysis
All quotes undergo mandatory Design for Manufacturability review by Honyo’s manufacturing engineers. This phase identifies potential production risks such as inadequate tool clearance, thin wall instability, or tolerance stack-up issues. Engineers collaborate directly with clients to propose actionable optimizations—reducing costs by 15-30% on average while maintaining functional requirements. Typical improvements include adjusting radii for standard tooling, simplifying deep cavity geometries, and optimizing stock sizes.
| Common DFM Issue | Honyo Resolution | Client Benefit |
|---|---|---|
| Internal corners with sharp 90° radii | Recommend 0.8mm minimum radius using standard end mills | Eliminates EDM requirement, reducing cost by 22% |
| Thin walls below 0.5mm | Suggest localized thickening or alternative support strategy | Prevents vibration-induced chatter, ensuring ±0.025mm tolerance |
| Non-standard hole depths | Propose standard drill bit depths or peck drilling sequence | Cuts cycle time by 35% while maintaining positional accuracy |
Precision Production Execution

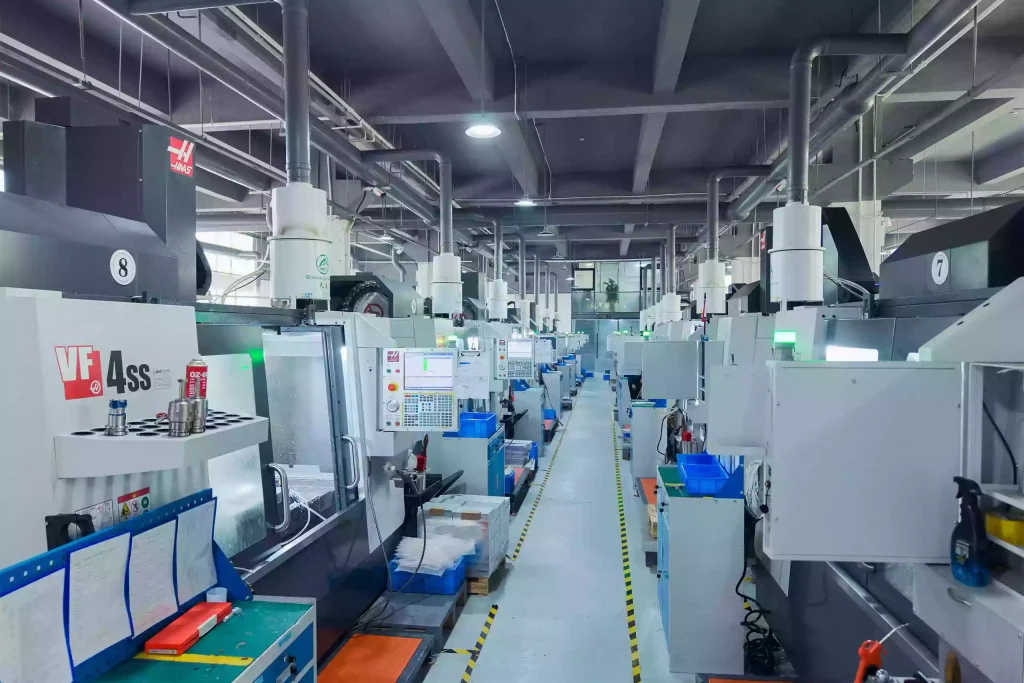

Approved designs move to production in our climate-controlled facility housing 42 CNC machines (including 5-axis mills, Swiss lathes, and wire EDM). Each job receives a unique work order with traceable material certs and process-specific work instructions. In-process inspections occur at critical stages: first-article verification using Zeiss CMMs, mid-production spot checks for thermal drift compensation, and final full-spectrum dimensional validation against the original CAD model. All steel and aluminum parts undergo post-machining de-burring and passivation per ASTM standards.
Certified Delivery and Traceability
Completed parts ship with comprehensive documentation: FAI reports, material test certificates, and dimensional inspection data in PDF and Excel formats. Shipping containers use anti-static, humidity-controlled packaging for sensitive alloys. Real-time delivery tracking integrates with client PLM systems via API, while our quality portal provides lifetime access to production records. Typical lead time from CAD approval to shipment is 7-10 business days for standard complexity parts, with expedited options available.
This integrated approach ensures technical transparency from quotation through delivery, reducing time-to-part by 40% compared to traditional vendor workflows while maintaining ISO 9001-certified quality controls. All process data feeds our continuous improvement loop, refining AI algorithms and DFM best practices with each project.
Start Your Project
For precision CNC machining of parts, contact Susan Leo at [email protected]. Our manufacturing facility is located in Shenzhen, China, where we deliver high-quality, on-time production for prototyping and low-to-mid volume runs. Reach out today to discuss your project requirements and receive a competitive quote.
