Manufacturing Insight: Cnc Machines Lathe
Precision CNC Turning Solutions for Complex Components
Honyo Prototype delivers advanced CNC lathe machining services engineered to transform raw materials into high-precision rotational components with exceptional repeatability. Our modern facility integrates state-of-the-art multi-axis CNC lathes, including live-tooling and Y-axis capabilities, enabling complex geometries, tight-tolerance features, and secondary operations in a single setup. We specialize in turning critical parts for aerospace, medical, automotive, and industrial sectors, supporting materials ranging from aluminum and titanium to exotic alloys and engineered plastics. Every process adheres to rigorous quality standards, ensuring dimensional accuracy down to ±0.0001″ and superior surface finishes that meet stringent industry requirements.
Streamlined Procurement with Real-Time Quoting
Accelerate your prototyping and low-volume production timelines through Honyo Prototype’s Online Instant Quote system. Upload CAD files in minutes to receive detailed, transparent pricing and lead time estimates without manual intervention—eliminating procurement delays while maintaining full technical validation by our engineering team. This seamless integration of precision manufacturing expertise and digital efficiency ensures your CNC turning projects move from design to delivery faster, with zero compromise on quality.
Technical Capabilities
CNC Lathe Technical Specifications for Precision Machining

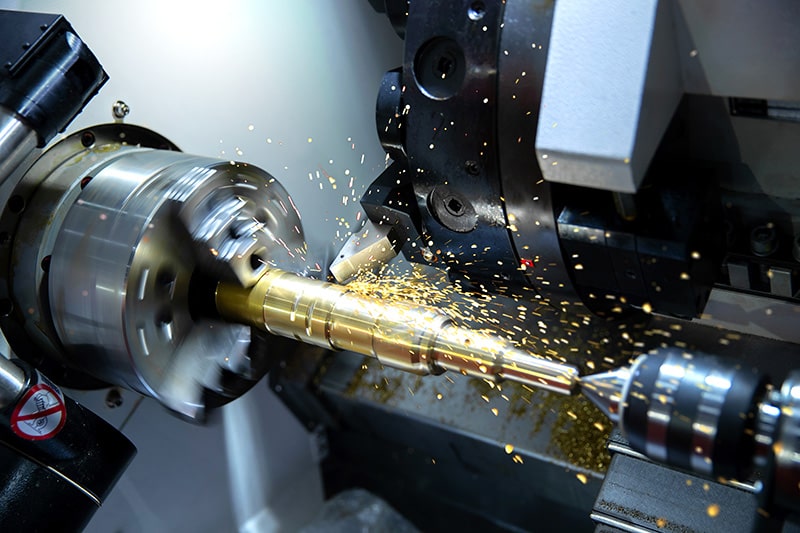

CNC lathes are advanced machine tools used for turning operations, where a workpiece rotates while a cutting tool moves parallel and perpendicular to the axis of rotation to create cylindrical parts. When integrated with milling capabilities (often referred to as CNC turning centers or mill-turn machines), they support multi-axis operations including 3, 4, and 5-axis functionality. These machines are ideal for achieving tight tolerances and complex geometries across a range of materials such as aluminum, steel, ABS, and nylon.
Below is a summary of key technical specifications relevant to high-precision CNC lathe and mill-turn systems:
| Feature | Specification Description |
|---|---|
| Machine Type | CNC Turning Center with Milling Capability (Mill-Turn) |
| Axis Configuration | 3-Axis (X, Z, C); 4-Axis (adds B or Y); 5-Axis (X, Z, C, Y, B) for complex mill-turn ops |
| Spindle Speed | Up to 10,000 RPM (standard), up to 20,000 RPM for high-speed aluminum and plastic turning |
| Turret Stations | 8–12 stations with live tooling support for milling, drilling, tapping |
| Live Tooling Power | 3–7 kW motor power, 6,000–12,000 RPM for milling operations |
| Bar Capacity | 20–75 mm diameter (depending on model) |
| Positioning Accuracy | ±0.005 mm |
| Repeatability | ±0.002 mm |
| Typical Tolerance Range | ±0.01 mm for general features; down to ±0.005 mm for critical dimensions |
| Surface Finish | Ra 0.8–3.2 µm (machined), achievable down to Ra 0.4 µm with fine finishing passes |
| Work Envelope (Turning) | Max. turning diameter: 500 mm; Max. turning length: 1,000 mm (varies by model) |
| Control System | Fanuc, Siemens, or Heidenhain with multi-axis interpolation and tool compensation |
| Coolant System | High-pressure through-tool coolant (up to 70 bar) for improved chip control and tool life |
| Materials Supported | Aluminum (6061, 7075), Steel (1018, 4140, Stainless 303/316), ABS, Nylon (6/66), PEEK |
| Aluminum Machining | High-speed cutting with carbide tools; excellent chip evacuation and thermal management |
| Steel Machining | Moderate feed/speeds; requires rigid setup and coolant; suitable for hardened steels |
| Plastic Machining (ABS/Nylon) | Low cutting forces; specialized tooling to prevent melting or burring; dry or air cooling |
| Tool Change Time | < 1 second between live tools |
| Automation Compatibility | Integrated with bar feeders, gantry loaders, and robotic cells for 24/7 operation |
This configuration enables Honyo Prototype to deliver high-precision turned and milled components with tight geometric tolerances, excellent surface quality, and repeatability across diverse engineering materials. Applications include aerospace fittings, medical components, automotive shafts, and industrial connectors requiring both rotational and off-axis features.
From CAD to Part: The Process
Honyo Prototype CNC Lathe Manufacturing Process Overview
Honyo Prototype executes a streamlined, technology-driven workflow for CNC lathe projects, ensuring precision, efficiency, and client transparency from initial design to final delivery. Our end-to-end process integrates advanced automation with expert engineering oversight to mitigate risks and optimize manufacturability.
Upload CAD
Clients initiate the process by uploading native CAD files (STEP, IGES, or native SOLIDWORKS) via our secure online portal. Our system performs an immediate validation check for file integrity, unit consistency, and geometric completeness. For lathe-specific geometries, the platform flags potential issues such as non-axisymmetric features, underspecified tolerances on diameters/lengths, or inaccessible undercuts early in the workflow. This step ensures the design aligns with fundamental turning principles before proceeding.
AI-Powered Quoting Engine
Uploaded CAD data feeds into our proprietary AI quoting system, which rapidly generates a preliminary cost and lead time estimate. The AI analyzes material utilization (e.g., bar stock vs. plate), calculates machine runtime based on feature complexity (facing, turning, threading, grooving), and factors in toolpath efficiency. Crucially, it cross-references real-time shop floor data—machine availability, current queue depth, and material costs—to deliver a market-accurate quote within 2 hours. Human engineers review all AI outputs to validate assumptions, particularly for multi-axis live-tooling operations or secondary processes like milling on the lathe.
Engineering-Led DFM Analysis
Following quote acceptance, our manufacturing engineers conduct a rigorous Design for Manufacturability (DFM) review. This is not an automated checklist but a collaborative assessment focusing on lathe-specific optimizations:
Verification of chucking/jaw setups and part stability during high-RPM operations
Adjustment of tolerances to match achievable turning capabilities (e.g., ±0.0005″ for critical diameters vs. ±0.005″ for non-functional faces)
Redesign suggestions for features like deep grooves or thin walls prone to chatter
Material waste reduction via bar length optimization or nested part layouts
Clients receive a detailed DFM report with annotated CAD markups and actionable recommendations, typically within 24 hours. This step routinely prevents 30–50% of potential production delays by resolving conflicts before machining begins.
Precision Production Execution

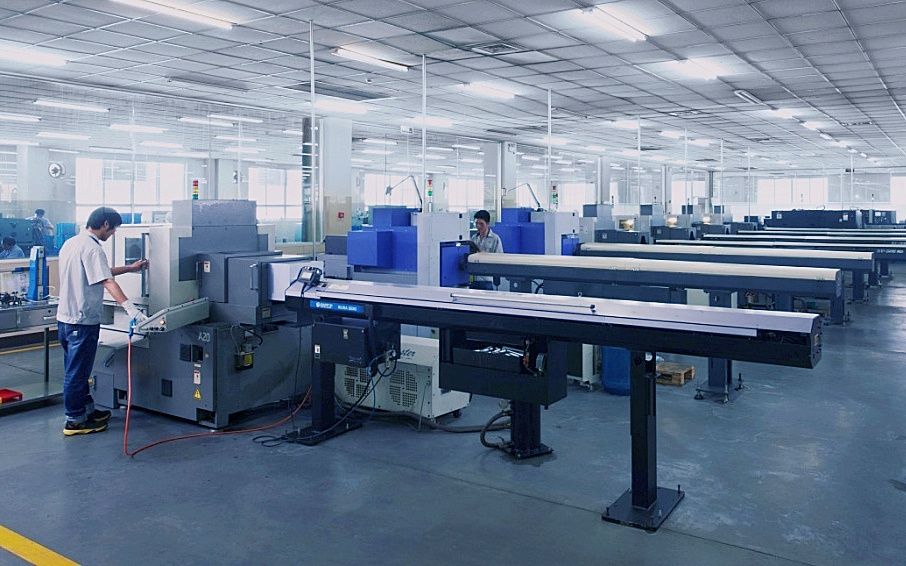

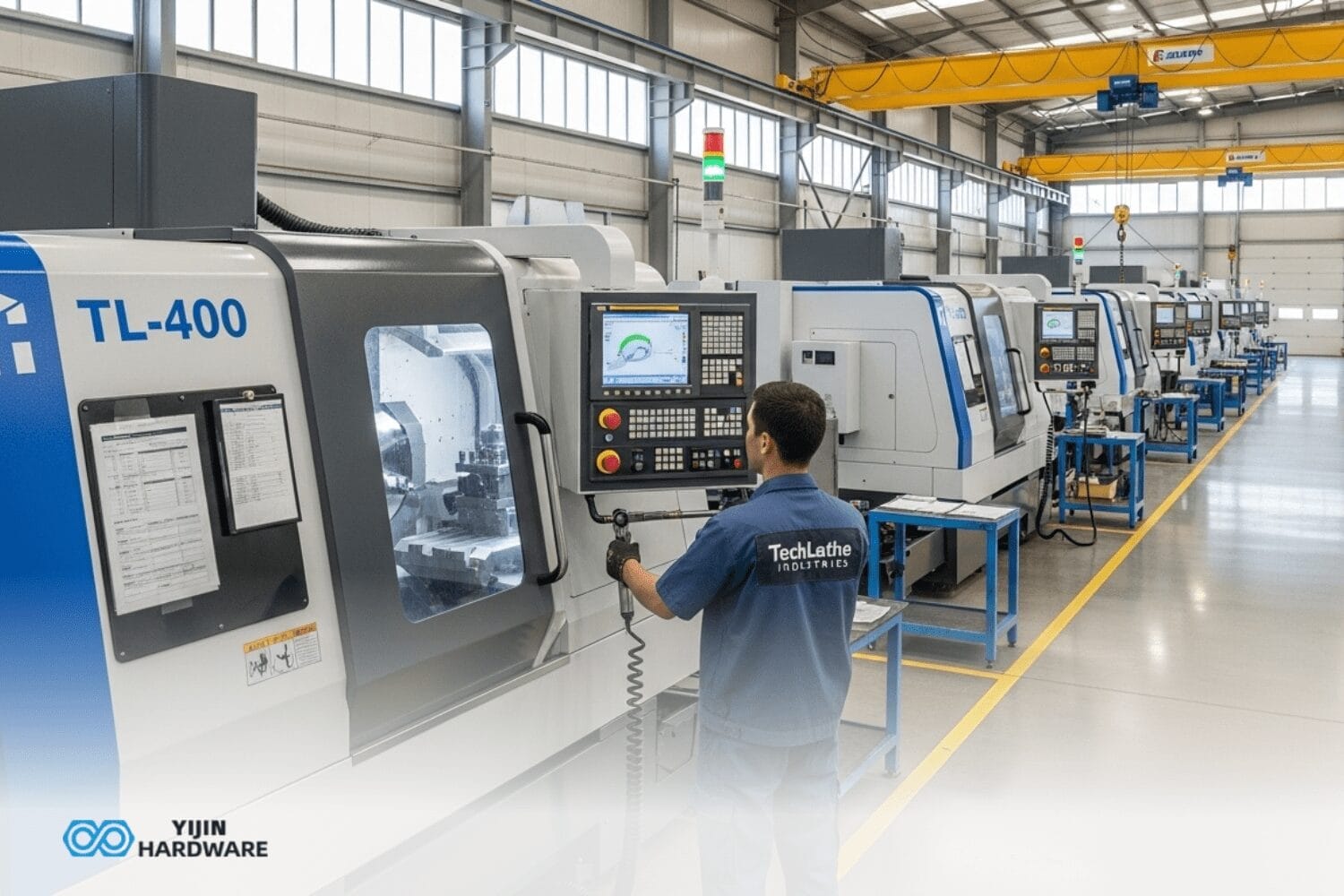

Approved designs move to our CNC lathe cells, which include advanced Swiss-type, multi-axis, and vertical turning centers. Key production phases include:
CAM Programming: Engineers generate optimized toolpaths using Mastercam, validating G-code via simulation to avoid collisions and ensure smooth spindle transitions.
Setup & First-Article Inspection: Dedicated technicians perform in-process checks using CMM, optical comparators, and surface roughness testers against AS9102 or client-specific FAI templates. Critical dimensions (e.g., bearing seats, thread pitch) undergo 100% verification.
Batch Production: Statistical process control (SPC) monitors key parameters like tool wear and dimensional drift. For high-volume runs, automated bar feeders and robotic part handling maintain consistency.
Quality-Controlled Delivery
All components undergo final inspection per ISO 2768-mK or client-specified standards before packaging. Dimensional reports, material certificates (e.g., EN AW-6061 T6), and surface finish data accompany shipments. Parts are vacuum-sealed with VCI corrosion inhibitors for sensitive alloys and shipped via DHL/FedEx with real-time tracking. Expedited delivery options include same-day dispatch for urgent RFQs, supported by our 98.5% on-time delivery rate.
Process Performance Metrics
| Stage | Avg. Duration | Key Quality Gate |
|——-|—————|——————|
| CAD Upload to Quote | <2 hours | File validation success rate: 99.2% |
| DFM Approval | 24 hours | Client revision rate: <15% |
| Production (1–100 pcs) | 3–7 days | FAI pass rate: 96.7% |
| Delivery | 1–2 days post-inspection | On-time shipment: 98.5% |
This integrated approach ensures lathe components meet stringent aerospace, medical, and industrial specifications while minimizing time-to-part. Honyo’s fusion of AI efficiency and human engineering expertise delivers predictable outcomes for complex turning projects.
Start Your Project
Looking for precision CNC lathe machining services? Contact Susan Leo at [email protected] to discuss your project requirements.
Honyo Prototype operates a fully equipped manufacturing facility in Shenzhen, specializing in high-accuracy CNC turning solutions for prototyping and low-volume production.
Our CNC lathe capabilities include:
Turning diameters from 1 mm to 300 mm
Maximum turning length: 500 mm
Materials: Aluminum, steel, stainless steel, brass, plastics, and more
Tolerances down to ±0.005 mm
We support industries including automotive, medical, electronics, and industrial equipment with fast turnaround and strict quality control.
For quotes or technical inquiries, reach out to Susan Leo directly at [email protected].
| Service Type | Capability | Lead Time |
|---|---|---|
| Prototype CNC Lathe | 1–50 pcs | 5–7 days |
| Production Runs | 50–500+ pcs | 7–12 days |
| Materials | Metal & engineering plastics | Custom options |
All parts machined in-house at our Shenzhen factory. ISO-compliant processes and inspection reports available upon request.
Contact us today at [email protected] to optimize your component manufacturing.
