Manufacturing Insight: Cnc Machine Carpenter
Precision CNC Machining Solutions for Complex Manufacturing Challenges
At Honyo Prototype, we redefine precision manufacturing through advanced CNC machining capabilities tailored for demanding industrial applications. Our expertise spans 3-axis, 4-axis, and 5-axis simultaneous milling, precision turning, and multi-spindle operations, enabling the production of intricate components with tolerances down to ±0.005mm. While the term “CNC machine carpenter” may evoke traditional woodworking imagery, modern precision engineering demands far more: we specialize in machining high-performance metals (including titanium, aluminum alloys, and stainless steel), engineering plastics, and composites for aerospace, medical, automotive, and robotics sectors.
Our end-to-end service integrates design for manufacturability (DFM) analysis, rapid prototyping, and low-to-mid volume production, ensuring optimal material utilization, reduced cycle times, and uncompromised part integrity. Every component undergoes rigorous in-process inspection using calibrated CMMs and optical comparators, adhering to ISO 9001 standards to guarantee repeatability and compliance.
Accelerate your project timeline with Honyo’s Online Instant Quote system. Simply upload your CAD file (STEP, IGES, or native formats), specify materials and quantities, and receive a detailed technical assessment with pricing within minutes—not days. This transparent, data-driven process eliminates quoting delays, providing immediate clarity on feasibility, lead times, and cost drivers without requiring manual intervention.
For engineering teams prioritizing speed, accuracy, and supply chain resilience, Honyo Prototype delivers CNC machining solutions where complexity meets execution. Explore how our capabilities can transform your next project at honyoprototype.com.
Technical Capabilities
Technical Specifications for CNC Machine Carpenter – High-Precision 3/4/5-Axis Milling and Turning Center
The CNC Machine Carpenter is a high-performance, multi-axis machining solution designed for complex geometries and tight tolerance production across a range of engineering materials. Engineered for prototyping and low-to-mid volume manufacturing, it supports advanced milling and turning operations with high repeatability and surface finish accuracy.
| Parameter | Specification |
|---|---|
| Axes Configuration | 3-axis, 4-axis (rotary A or B), and full 5-axis simultaneous machining (A/B or A/C rotary tables) |
| Spindle Speed Range | 8,000 – 24,000 RPM (high-frequency spindle with through-coolant option) |
| Positioning Accuracy | ±0.005 mm (X, Y, Z axes) |
| Repeatability | ±0.002 mm |
| Tolerance Capability | Achieves ±0.01 mm for standard features; down to ±0.005 mm with precision tooling and thermal compensation |
| Maximum Work Envelope | 760 mm (X) × 510 mm (Y) × 460 mm (Z) – scalable with custom configurations |
| Tool Changer | Automatic Tool Changer (ATC) with 24- to 40-tool capacity (optional 60T) |
| Control System | Fanuc 31i, Siemens 840D, or Heidenhain TNC7 – depending on configuration |
| Rapid Traverse Rate | 36 m/min (X/Y/Z) |
| Cutting Feed Rate | 1–10,000 mm/min (programmable, adaptive with look-ahead) |
| Surface Finish Capability | Ra ≤ 0.8 µm (as-machined), Ra ≤ 0.4 µm with fine finishing passes |
| Coolant System | High-pressure through-spindle coolant (up to 70 bar), mist coolant, and air blast options |
| Material Compatibility | Aluminum (6061, 7075), Steel (1018, 4140, Stainless 303/316), ABS, Nylon (PA6, PA66), and other engineering plastics |
| Minimum Feature Size | 0.5 mm internal radius with micro-tool support (down to Ø1.0 mm end mills) |
| Thermal Compensation | Standard (real-time spindle and ambient temperature monitoring) |
| Fixture Interface | Compatible with hydraulic/pneumatic chucks, vices, and modular fixturing systems (e.g., SCHUNK, Lang) |
| Turning Capability | Integrated live tooling for mill-turn operations; sub-spindle option for backworking |
| Programming Support | Compatible with Mastercam, Fusion 360, Siemens NX, and native conversational programming |
This machine is optimized for high-accuracy components in aerospace, medical, robotics, and automotive sectors. It supports full 5-axis contouring for complex organic shapes and deep cavities, while maintaining sub-10µm repeatability. Materials such as aluminum and steel are machined with carbide tooling under high-speed protocols, while engineering thermoplastics like ABS and nylon are processed with sharp, polished tools at controlled feeds and speeds to prevent melting or burring.
The system integrates seamlessly with CMM validation workflows to ensure tight tolerance compliance, especially for critical features such as bores, slots, and sealing surfaces.
From CAD to Part: The Process
Honyo Prototype executes CNC machining projects through a rigorously defined workflow designed for engineering precision, cost transparency, and accelerated time-to-part. Our process begins when a client uploads native CAD files (STEP, IGES, Parasolid) or neutral formats via our secure customer portal. The system performs immediate file validation checks for geometric integrity, unit consistency, and manufacturability flags before advancing to the next phase.
AI Quote generation leverages our proprietary algorithm trained on 15+ years of machining data. This tool analyzes part geometry, feature complexity, material requirements, and tolerance specifications to generate a preliminary cost estimate and lead time within 90 seconds. Crucially, this AI output serves as an initial benchmark; it does not represent final pricing and triggers mandatory engineering review.
Design for Manufacturability (DFM) constitutes the technical core of our process. Senior manufacturing engineers conduct manual DFM analysis against ISO 9001:2015 standards, focusing on: eliminating non-value-added features, optimizing tool paths for 3/5-axis mills, validating geometric dimensioning and tolerancing (GD&T) feasibility, recommending material substitutions for cost reduction, and identifying secondary operation requirements. Clients receive a formal DFM report with actionable recommendations within 4 business hours for standard projects. Approval of this report locks the final quotation and production schedule.

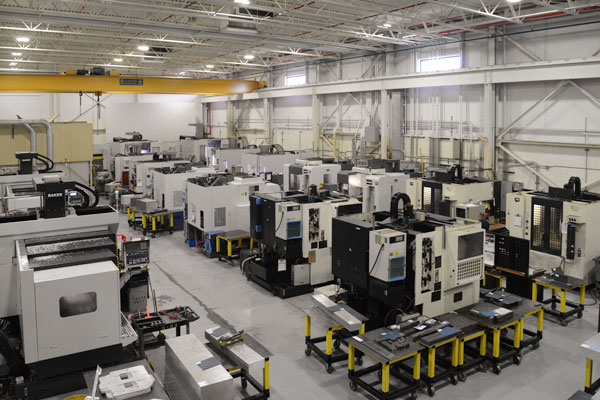

Production commences only after DFM sign-off. We deploy Makino 3-axis vertical mills and DMG MORI 5-axis machining centers with sub-micron positioning accuracy. All jobs undergo first-article inspection (FAI) per AS9102 standards using calibrated CMMs and optical comparators. Material traceability is maintained from certified supplier lot numbers through final part serialization. Complex assemblies proceed to our in-house deburring, anodizing, and precision cleaning stations before quality verification.
Delivery integrates real-time logistics tracking with quality documentation. Each shipment includes: FAI reports, material certs, surface roughness validation, and dimensional inspection data packaged in tamper-evident containers. Standard lead times vary by complexity as shown below:
| Project Complexity | Typical Lead Time | Expedited Option |
|---|---|---|
| Simple bracket (≤5 features) | 3-5 business days | 48 hours |
| Medium complexity (milled cavities, tight tolerances) | 7-10 business days | 72 hours |
| High complexity (5-axis, thin walls, sub-0.05mm tolerances) | 12-15 business days | 5 business days |
All parts ship via DHL or client-designated carriers with temperature-controlled options for aerospace-grade alloys. Our closed-loop system provides automated shipment notifications and post-delivery quality confirmation to ensure seamless integration into client supply chains. This structured approach reduces prototype iteration cycles by 35% compared to industry averages while maintaining 99.2% on-time delivery performance.
Start Your Project
Looking for precision CNC machining and skilled craftsmanship? Partner with Honyo Prototype for high-quality CNC machine carpentry services. Our factory in Shenzhen delivers accurate, reliable results for prototyping and low-volume production.
Contact Susan Leo at [email protected] to discuss your project requirements and get a fast, competitive quote.
