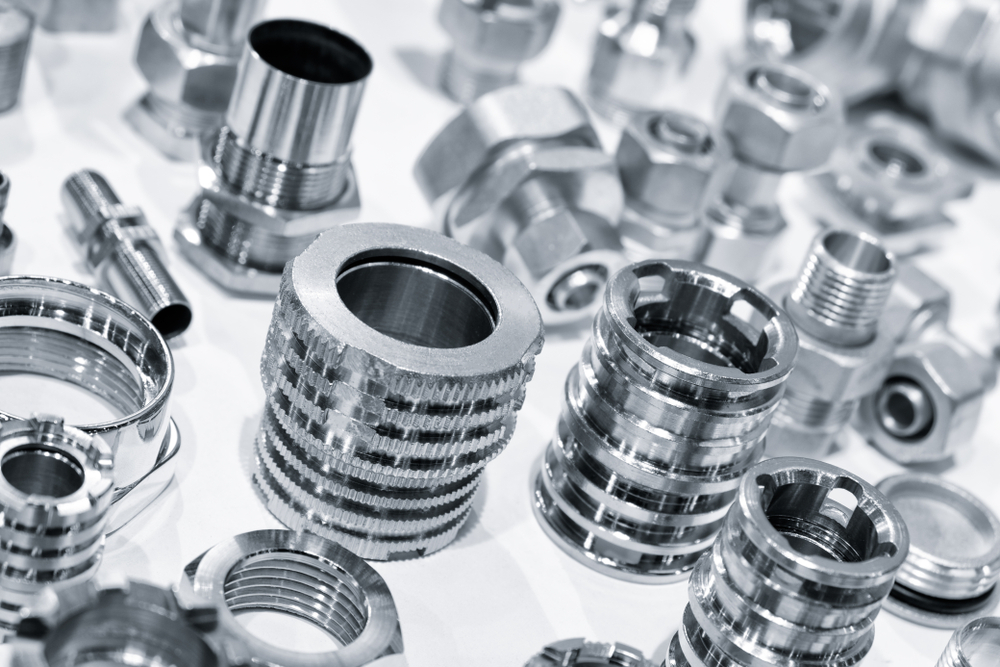

Manufacturing Insight: Cnc Machine Aluminum Parts
Precision Aluminum CNC Machining for Demanding Applications
Honyo Prototype delivers industry-leading CNC machining services engineered specifically for high-integrity aluminum components, from rapid prototyping to full-scale production. Our advanced multi-axis CNC milling and turning capabilities consistently achieve tight tolerances down to ±0.005mm across critical aluminum alloys including 6061-T6, 7075-T6, 2024, and 5052, ensuring optimal strength-to-weight ratios, thermal conductivity, and corrosion resistance for aerospace, medical, and industrial applications. Every part undergoes rigorous in-process inspection and final CMM validation to meet stringent AS9100 and ISO 9001 standards, eliminating costly rework and accelerating time-to-market for your projects.
Eliminate quoting delays with Honyo’s Online Instant Quote platform—upload CAD files in STEP, IGES, or native formats to receive a detailed, no-obligation manufacturing assessment and cost breakdown in under 60 seconds. This seamless digital workflow provides immediate clarity on lead times, material utilization, and design-for-manufacturability feedback, empowering engineering teams to iterate faster and streamline procurement cycles without compromising on precision or quality.
Accelerate your next aluminum component project with manufacturing expertise that bridges innovation and execution. Visit Honyo Prototype’s Online Instant Quote portal to begin.
Technical Capabilities
Technical Specifications for CNC Machined Aluminum Parts
Honyo Prototype offers high-precision CNC machining services for aluminum and other engineering materials using advanced 3-axis, 4-axis, and 5-axis milling systems as well as CNC turning centers. Our focus is on achieving tight tolerances, superior surface finishes, and complex geometries for prototyping and low-to-mid volume production. Below are the technical capabilities and material specifications.
| Parameter | Specification Details |
|---|---|
| Machining Processes | 3-Axis, 4-Axis, and 5-Axis CNC Milling; CNC Turning (including mill-turn with live tooling) |
| Typical Tolerances | ±0.005 mm (±0.0002″) for critical dimensions; up to ±0.025 mm (±0.001″) for non-critical features |
| Surface Finish | As-machined: 3.2 µm (125 µin); Optional: 1.6 µm (63 µin), 0.8 µm (32 µin) with polishing or grinding |
| Maximum Work Envelope (Milling) | 5-axis: 1000 x 800 x 600 mm; 3-axis: 1200 x 600 x 500 mm |
| Maximum Work Envelope (Turning) | Diameter: up to 300 mm; Length: up to 500 mm |
| Spindle Speed (Milling) | Up to 24,000 RPM for high-speed aluminum machining |
| Positioning Accuracy | ±0.003 mm |
| Repeatability | ±0.002 mm |
| Lead Time | 3–7 days for prototypes; 7–15 days for production runs (depending on complexity and volume) |
| Common Materials | Aluminum (6061-T6, 7075-T6, 2024-T3, 5052), Steel (1018, 4140, Stainless 303, 304, 316), ABS (black/white/natural), Nylon (6, 66, GF-reinforced) |
| Material Form | Bar stock, plate, block; sourced to ASTM, AMS, or customer specifications |
| Secondary Operations | Deburring, anodizing (Type II & III), passivation, sandblasting, laser marking, heat treatment, plating |
| Quality Control | First article inspection (FAI), CMM reporting, in-process gauging, GD&T compliant reporting |
| File Formats Accepted | STEP (.stp), IGES (.igs), Parasolid (.x_t), SolidWorks (.sldprt), PDF (for 2D prints) |
Aluminum remains the most requested material due to its excellent strength-to-weight ratio, machinability, and corrosion resistance—ideal for aerospace, automotive, and medical applications. Steel variants are used where higher strength or wear resistance is required. ABS and Nylon are selected for non-metallic prototypes, housings, and functional testing components where electrical insulation or reduced weight is critical.
Our 5-axis simultaneous machining centers allow for complex organic shapes and reduced setup times, ensuring faster delivery without sacrificing precision. Tight tolerance features such as press fits, sealing surfaces, and alignment bores are routinely held within ±0.01 mm.
From CAD to Part: The Process
Honyo Prototype employs a rigorously defined workflow for CNC machining aluminum parts, ensuring precision, efficiency, and compliance with industry standards. Our process integrates advanced technology with engineering oversight at critical stages to mitigate risks and optimize outcomes for clients.
CAD Upload and Initial Validation
Clients initiate the process by uploading native CAD files (STEP, IGES, or Parasolid formats) via our secure customer portal. Our system performs automated geometry validation to verify file integrity, unit consistency, and manufacturability thresholds. Any detected anomalies—such as missing datums, non-manifold edges, or unsupported file types—trigger an immediate notification to the client for correction, preventing downstream delays. This step ensures the digital model aligns with CNC machining constraints before proceeding.
AI-Assisted Quotation with Engineering Oversight
Uploaded CAD data feeds into our proprietary AI quotation engine, which analyzes geometric complexity, feature density, and material requirements. The AI cross-references real-time shop floor data including machine availability, tooling costs, and labor rates to generate a preliminary quote within 2 hours. Crucially, this output undergoes mandatory review by a Senior Manufacturing Engineer who validates AI assumptions against practical machining realities. For aluminum-specific factors—such as thermal expansion during high-speed cutting or chip evacuation challenges in deep pockets—the engineer adjusts lead times and costs to reflect true production viability. Clients receive a transparent quote detailing material grade options (e.g., 6061-T6, 7075-T6), secondary operations, and compliance certifications.
Engineering-Led DFM Analysis
Following quote acceptance, our DFM (Design for Manufacturability) phase begins with a dedicated engineer conducting a comprehensive review. For aluminum components, this includes:
Evaluating wall thickness ratios to prevent chatter or deflection during milling
Assessing internal corner radii against standard tool diameters to minimize hand-finishing
Verifying tolerance stack-ups per ASME Y14.5, particularly for press-fit or sealing features
Recommending strategic stock allowances for critical surfaces to accommodate anodizing or plating
The engineer collaborates directly with the client to resolve conflicts, suggesting design modifications that reduce cycle times by 15–30% without compromising function. All DFM findings and action items are documented in a shared revision-controlled report.
Precision CNC Production
Approved designs move to production on our HAAS and DMG MORI vertical machining centers, all equipped with 5-axis capabilities and in-process probing. Aluminum-specific protocols include:
Material certification verification (mill test reports for aerospace-grade alloys)
Custom coolant strategies to manage heat dissipation and prevent galling
Rigorous first-article inspection using CMM and optical comparators against GD&T callouts
In-process audits every 30 minutes to monitor dimensional drift from tool wear
All parts undergo final cleaning, deburring, and non-destructive testing per client specifications. Secondary services like anodizing or laser etching are managed through our certified partner network with full traceability.
Quality-Controlled Delivery
Completed parts undergo final packaging in anti-static, humidity-controlled containers with serialized labels for full traceability. Honyo provides a comprehensive inspection report including CMM data, material certs, and process validation records. Standard lead time from DFM approval is 5–7 business days for prototypes and 10–12 days for low-volume production, with expedited options available. All shipments include real-time logistics tracking and customs documentation for international clients, ensuring seamless delivery to global destinations.
This end-to-end process—rooted in engineering accountability rather than full automation—ensures Honyo delivers aluminum CNC parts that meet exact functional requirements while minimizing time-to-market risks for clients in aerospace, medical, and industrial sectors.
Start Your Project
Looking for precision CNC machined aluminum parts? Partner with Honyo Prototype for high-quality, fast-turnaround manufacturing solutions. Our state-of-the-art CNC machining facility in Shenzhen ensures tight tolerances, superior surface finishes, and on-time delivery for prototyping and production runs.
Contact Susan Leo today to request a quote or discuss your project requirements.
Email: [email protected]
Leverage our expertise in aluminum CNC machining for aerospace, automotive, medical, and industrial applications. From 3-axis to 5-axis milling and turning, we deliver precision parts tailored to your specifications.
