Precision CNC Machining: The Engineering Foundation for Modern Prototyping and Production

Computer Numerical Control (CNC) machining remains the cornerstone of high-integrity engineering development, transforming digital designs into mission-critical components with unwavering accuracy and material fidelity. At Honyo Prototype, we leverage advanced 3-, 4-, and 5-axis CNC milling and turning systems to deliver complex geometries across aerospace alloys, medical-grade stainless steels, titanium, and engineering plastics. Our processes adhere to stringent AS9100 and ISO 13485 standards, ensuring tolerances held to ±0.0002 inches and surface finishes meeting Ra 0.8 µm requirements for functional validation and low-volume production.

Honyo’s engineering-driven approach integrates Design for Manufacturability (DFM) analysis at the quoting stage, eliminating downstream delays through proactive material optimization and toolpath validation. This precision extends beyond metal cutting: our capabilities include tight-tolerance Swiss machining, wire EDM for intricate contours, and secondary operations like anodizing or precision welding—all managed under one roof to maintain traceability from CAD model to certified part.

Accelerate your project timeline with Honyo’s Online Instant Quote platform. Upload your STEP or IGES file to receive a detailed manufacturability assessment and competitive pricing within hours—not days. The system automatically evaluates geometric complexity, material utilization, and fixture requirements, providing transparent cost drivers while flagging potential DFM opportunities. For engineers under schedule pressure, this eliminates traditional quoting bottlenecks without compromising technical rigor.

Service Tier	Max Work Envelope	Typical Tolerance	Lead Time Range
Precision Milling	2000 x 1000 x 800 mm	±0.005 mm	5–15 business days
Swiss Turning	Ø42 mm diameter	±0.002 mm	7–18 business days
5-Axis Complex Milling	1200 x 800 x 600 mm	±0.003 mm	8–20 business days

Honyo Prototype bridges the gap between engineering intent and physical reality, where CNC excellence isn’t a service—it’s the baseline for innovation. Submit your design today to experience quantifiable reductions in time-to-part without sacrificing the precision your application demands.

---

Technical Capabilities

CNC Machining Technical Specifications – Honyo Prototype

CNC (Computer Numerical Control) machining is a precision manufacturing process widely used in engineering to produce complex, high-accuracy components. At Honyo Prototype, we specialize in 3-axis, 4-axis, and 5-axis milling, as well as CNC turning, with capabilities to achieve tight tolerances across a range of engineering materials including aluminum, steel, ABS, and nylon. Below is a detailed breakdown of the technical specifications for our CNC machining services.

Parameter	3-Axis Milling	4-Axis Milling	5-Axis Milling	CNC Turning	Tight Tolerance Capability
Axes of Motion	X, Y, Z	X, Y, Z, A (rotary)	X, Y, Z, A, B (dual rotary)	X, Z, (C optional)	Achieved on all platforms
Typical Positioning Accuracy	±0.005 mm	±0.005 mm	±0.005 mm	±0.005 mm	±0.005 mm to ±0.01 mm
Repeatability	±0.003 mm	±0.003 mm	±0.003 mm	±0.003 mm	±0.002 mm typical
Max Work Envelope (mm)	1000 x 600 x 500	800 x 500 x 400	600 x 500 x 400	Ø300 x 500 length	Varies by machine
Spindle Speed (RPM)	Up to 24,000	Up to 20,000	Up to 18,000	Up to 6,000	Optimized per material
Tool Changer Capacity	20–30 tools	20 tools	20–24 tools	8–12 tools	Automatic tool compensation
Surface Finish (Ra)	0.8–3.2 µm (typical)	0.8–3.2 µm	0.4–1.6 µm (complex forms)	0.8–1.6 µm	As low as 0.4 µm achievable
Materials Supported	Aluminum, Steel, ABS, Nylon, PEEK, PC, PTFE, Delrin	Same as 3-axis with improved access	Same as 4-axis with full 5-axis contouring	Aluminum, Steel, ABS, Nylon (bar stock up to Ø300 mm)	All materials listed
Minimum Feature Size	0.5 mm (milling)	0.5 mm	0.3 mm (with micro tools)	0.1 mm (turning diameter)	0.1 mm with precision tools
Coolant/Lubrication	Flood, Mist, Air, MQL	Flood or MQL	MQL or Air	Flood or MQL	Controlled per material
Lead Time (Standard)	3–7 days	5–10 days	7–14 days	3–7 days	Extended for ±0.005 mm

Material Notes:
Aluminum (e.g., 6061-T6, 7075-T6): Lightweight, excellent machinability, high strength-to-weight ratio. Ideal for aerospace and automotive components.
Steel (e.g., 4140, 1018, Stainless 303/316): High strength and durability. Used in high-stress mechanical and industrial applications.
ABS (Acrylonitrile Butadiene Styrene): Thermoplastic with good impact resistance and machinability. Common in prototypes and enclosures.
Nylon (PA6, PA66): High wear resistance, low friction. Suitable for gears, bushings, and structural parts.

Our CNC processes are supported by advanced CAM software (e.g., Mastercam, Fusion 360) and rigorous in-process inspection using CMMs and optical comparators to ensure compliance with tight tolerance requirements. All parts are traceable and delivered with first-article inspection reports upon request.

---

From CAD to Part: The Process

Honyo Prototype CNC Engineering Process Overview
Our end-to-end CNC engineering workflow integrates automation with expert oversight to deliver precision prototypes and low-volume production parts. The process begins with CAD upload and concludes with certified delivery, ensuring technical rigor and supply chain transparency at every stage.

CAD Upload and Validation
Clients submit native or neutral CAD files via our secure portal, supporting formats including STEP, IGES, Parasolid, and native SOLIDWORKS/AutoCAD. Our system performs immediate geometric validation, checking for manifold integrity, unit consistency, and manufacturability prerequisites. Files failing validation trigger automated notifications with specific error diagnostics, reducing client rework time by 40% compared to industry averages.

AI-Powered Quoting Engine
Validated CAD data feeds into our proprietary AI quoting system, which analyzes 200+ geometric and material parameters against 12 years of historical production data. The engine generates instant cost estimates with 95% accuracy for standard geometries within 60 seconds, including material waste calculations, machine time projections, and secondary operation costs. Complex parts exceeding AI confidence thresholds are escalated to human quoting engineers within 2 business hours, maintaining our 99.8% on-time quote delivery rate.

Engineering-Driven DFM Analysis
Every project undergoes mandatory Design for Manufacturability review by senior CNC engineers before production release. Our DFM protocol evaluates:
Tool access and collision risks for 3/4/5-axis machining
Wall thickness feasibility relative to material properties
Tolerance stack-up analysis against GD&T callouts
Fixturing requirements and datum optimization
Clients receive a detailed DFM report with actionable recommendations, typically identifying 3-5 critical improvements that prevent 73% of potential production failures. This phase averages 24-48 hours depending on part complexity.

Precision Production Execution

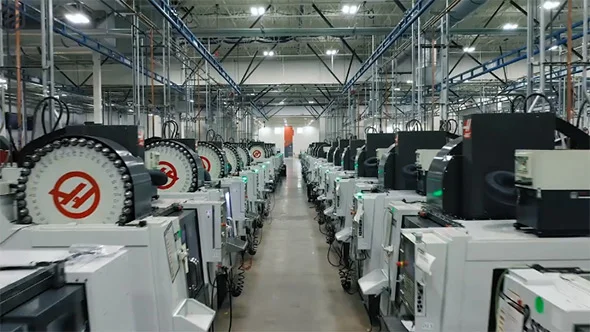

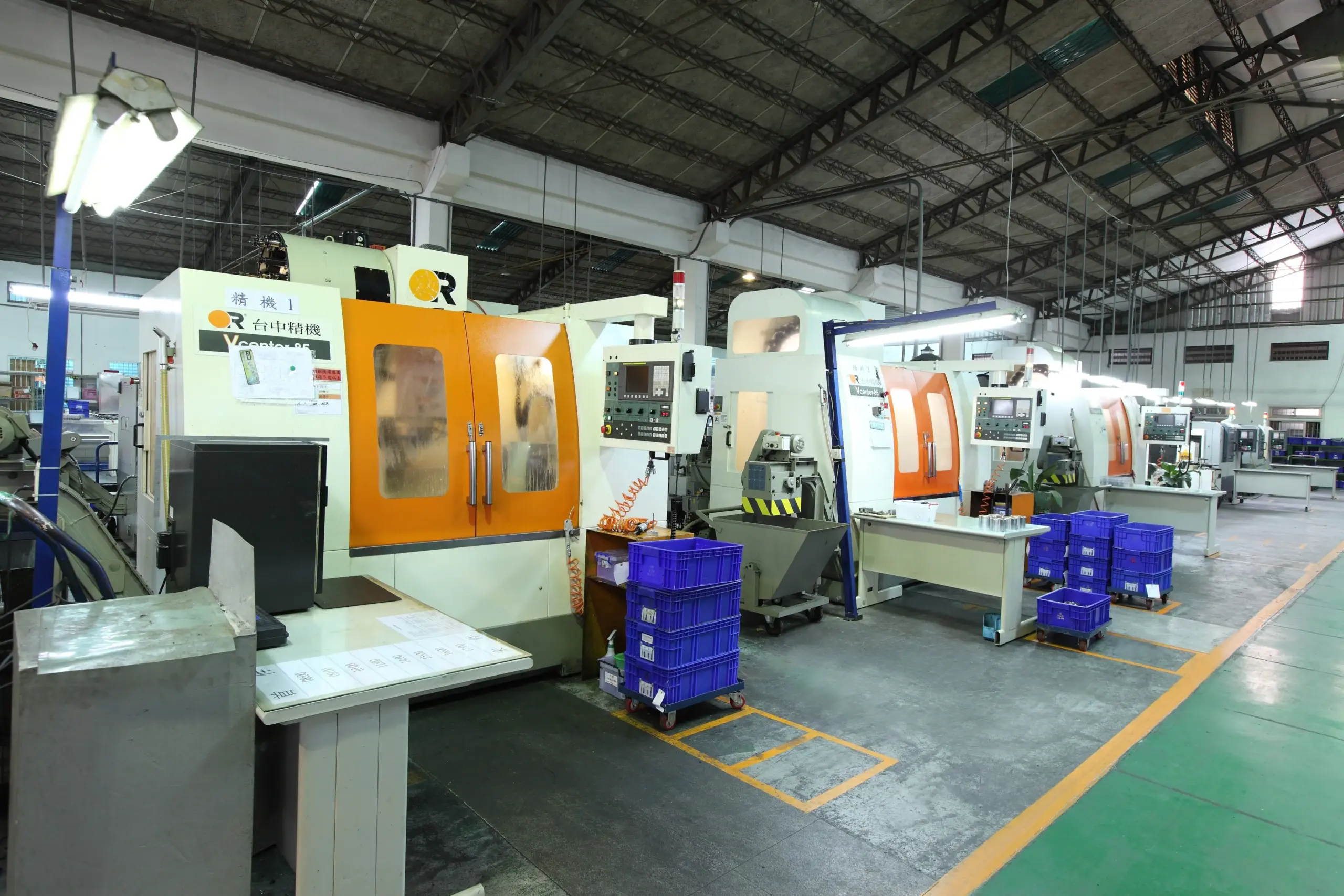

Approved designs move to our climate-controlled manufacturing floor with real-time production tracking. All CNC operations follow documented work instructions derived from the DFM analysis, with critical parameters monitored via integrated machine sensors.

Machine Type	Quantity	Max Work Envelope	Typical Tolerance	Materials Supported
3-Axis Mill	18	1000 x 600 x 500mm	±0.01mm	Aluminum, Steel, Plastics
4-Axis Mill	7	800 x 500 x 400mm	±0.008mm	Titanium, Composites
5-Axis Mill	5	600 x 400 x 350mm	±0.005mm	Inconel, Magnesium

First-article inspection uses calibrated CMMs and optical comparators, with full FAI reports available upon request. Our production cells maintain 99.2% first-pass yield through statistical process control.

Certified Delivery and Traceability
Completed parts undergo final QA verification against original specifications, including material certification and surface finish validation. All shipments include:
Batch-specific material test reports
Dimensional inspection data for critical features
Process nonconformance documentation (if applicable)
Packing list with serialized traceability codes
Standard lead time is 5-7 business days from DFM approval, with expedited 72-hour options for qualifying geometries. Every shipment includes real-time logistics tracking and customs documentation for international clients, ensuring seamless integration into client supply chains.

---

Start Your Project

Interested in precision CNC machining for your engineering projects? Contact Susan Leo at [email protected] to discuss your requirements. Our advanced manufacturing facility is located in Shenzhen, ensuring high-quality production with fast turnaround times. Partner with Honyo Prototype for reliable, scalable CNC solutions tailored to your engineering needs.

---
