Manufacturing Insight: Cnc Granite Cutting Machine
Precision Granite Machining Solutions from Honyo Prototype
Granite remains the material of choice for mission-critical applications demanding exceptional dimensional stability, thermal inertia, and vibration damping—such as precision metrology bases, semiconductor manufacturing platforms, and optical calibration standards. However, machining granite presents unique challenges due to its inherent brittleness, abrasive nature, and sensitivity to thermal stress. Conventional CNC processes often result in micro-fractures, surface chipping, or compromised flatness, directly impacting end-part performance and longevity.
At Honyo Prototype, our specialized CNC granite cutting machines are engineered to overcome these challenges through diamond-coated tooling, optimized coolant strategies, and rigid multi-axis platforms operating under strict environmental controls. We achieve tolerances down to ±0.001 mm and surface finishes under Ra 0.8 µm on materials including black granite, gabbro, and engineered stone composites. Our process integrates precision sawing, profiling, drilling, and fine grinding within a single workflow, eliminating secondary operations that introduce cumulative error. This capability is backed by decades of experience serving aerospace, semiconductor, and advanced instrumentation clients where granite component integrity is non-negotiable.
Accelerate your prototyping or low-volume production timeline with Honyo’s Online Instant Quote system. Upload your CAD file, specify material requirements and tolerances, and receive a detailed technical assessment with pricing in under 2 hours—no sales call required. Experience how our granite machining expertise delivers components that meet the most stringent performance criteria, directly from your browser.
Technical Capabilities
Technical specifications for a CNC granite cutting machine are typically misunderstood due to the nature of granite as a material. However, it is more accurate to clarify that CNC granite routers or stone machining centers are designed specifically for cutting, carving, and shaping granite and other stone materials. These machines differ significantly from CNC milling or turning machines used for metals and plastics such as aluminum, steel, ABS, and nylon.
That said, high-precision CNC machining centers—capable of 3, 4, or 5-axis milling and turning—are engineered for tight-tolerance work on metals and engineering plastics. These machines are often constructed with granite composite or granite-reinforced bases for superior damping, thermal stability, and rigidity. Below are the technical specifications for a high-precision CNC machining center with a granite base or structure, suitable for milling and turning of aluminum, steel, ABS, and nylon, emphasizing multi-axis capability and tight tolerances.
| Specification Category | Details |
|---|---|
| Machine Type | 5-Axis Simultaneous CNC Milling and Turning Center with Granite Composite Bed |
| Axis Configuration | 3-Axis, 4-Axis (indexed or continuous), 5-Axis (full simultaneous RTCP) |
| Spindle Speed Range | 8,000 – 42,000 RPM (high-speed option for aluminum and plastics) |
| Spindle Power | 15 – 30 kW (adjustable based on material requirements) |
| Positioning Accuracy | ±0.002 mm (according to ISO 230-2) |
| Repeatability | ±0.001 mm |
| Tool Changer | Automatic Tool Changer (ATC), 24–60 tool capacity |
| Control System | Siemens SINUMERIK, Heidenhain TNC, or Fanuc 31i |
| Maximum Feed Rate | 60,000 mm/min |
| Work Envelope (X-Y-Z) | 800 x 500 x 400 mm (customizable up to 2000 mm in X) |
| Rotary Axis (A/C or B/C) | ±180° / 360° continuous, backlash-free torque motors |
| Linear Axis Guideways | High-precision linear roller guides with preloaded sliders |
| Machine Base Material | Polymer concrete with granite composite for vibration damping |
| Thermal Compensation | Integrated thermal sensors and real-time drift correction |
| Materials Compatible | Aluminum (6061, 7075), Steel (4140, 1018), Stainless Steel (304, 316), ABS, Nylon (PA6, PA66), PEEK, Delrin |
| Typical Tolerances Achieved | ±0.005 mm for aluminum and steel; ±0.01 mm for engineering plastics |
| Surface Finish (Ra) | 0.4 – 1.6 µm (depending on material and tooling) |
| Coolant System | High-pressure through-spindle coolant (for metals), air blasting (for plastics) |
| Chip Management | Integrated chip conveyor and filtration system |
| Optional Features | In-process probing, laser tool measurement, adaptive machining software, dry machining (for plastics) |
This class of CNC machining center leverages the inherent stability of granite-based structures to maintain tight tolerances during high-speed, multi-axis operations. The machine is optimized for precision components in aerospace, medical, and mold-making industries where dimensional accuracy and surface integrity are critical across diverse materials.
From CAD to Part: The Process
Honyo Prototype CNC Granite Cutting Machine Workflow
Honyo Prototype executes a streamlined, technology-driven process for CNC granite cutting projects, ensuring precision, efficiency, and cost transparency from initial design to final delivery. The workflow is structured to mitigate risks inherent in granite machining—such as material brittleness, tool wear, and thermal stress—while optimizing throughput.
Upload CAD
Clients submit detailed 3D CAD models (STEP, IGES, or native formats) via Honyo’s secure portal. Granite-specific requirements must be annotated, including grade (e.g., absolute black, pearl gray), thickness (typically 15–50 mm), critical tolerances (±0.1 mm standard), and surface finish (polished, honed, flamed). Non-disclosure agreements are auto-applied to all uploads.
AI-Powered Quoting
Our proprietary AI engine analyzes the CAD geometry against granite machining parameters, generating a quote within 2 business hours. The system factors in:
Material waste optimization via nesting algorithms
Diamond tooling wear rates (granite abrasiveness index)
Coolant requirements to prevent thermal cracking
Machine time based on spindle load (max 8,000 RPM for granite)
Quotes include granular cost breakdowns for material, machining, and finishing, with optional rush fees for timelines under 72 hours.
DFM (Design for Manufacturability) Review
Engineers conduct a granite-specific DFM analysis, focusing on fracture prevention and toolpath stability. Key checks include:
Minimum feature thickness validation (avoiding <3 mm unsupported edges)
Corner radii verification (R2 mm minimum to reduce chipping)
Hole depth-to-diameter ratios (max 3:1 without specialized tooling)
Stress concentration points near cutouts or engravings
Clients receive a formal DFM report with actionable revisions; 92% of projects require ≤2 iterations.
Production

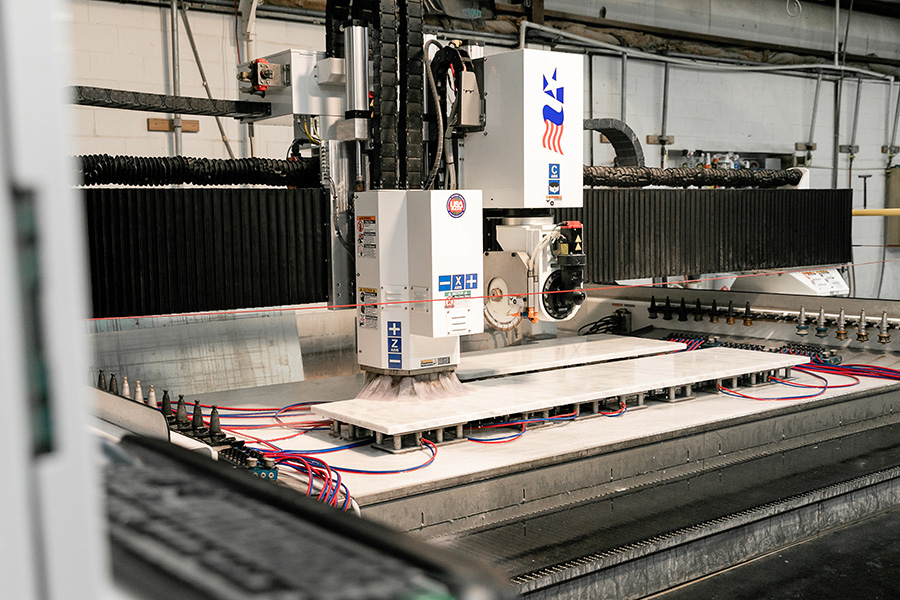

Machining occurs on Honyo’s 5-axis CNC granite routers (e.g., Park Industries Stepmill) with diamond-tipped tools and flood coolant systems. Critical controls:
Vacuum table pressure calibrated to granite density (0.6–0.8 bar)
Feed rates restricted to 1,200–2,500 mm/min to minimize vibration
Real-time spindle power monitoring to detect micro-fractures
In-process CMM checks at 25%, 50%, and 75% completion stages
All granite dust is captured via HEPA filtration per OSHA standards.
Delivery
Final parts undergo ultrasonic cleaning and edge de-burring before inspection. A comprehensive package includes:
Dimensional report (GD&T per ASME Y14.5)
Surface roughness certificate (Ra ≤ 0.8 µm for polished finishes)
Traceability log (material batch, tooling IDs, operator certifications)
Parts ship in custom crating with corner protectors and humidity control; global delivery averages 3–5 business days post-approval.
Granite Machining Parameter Reference
| Parameter | Standard Setting | Critical Deviation Alert |
|——————–|————————|————————–|
| Spindle Speed | 6,000–8,000 RPM | >9,000 RPM (risk of thermal cracking) |
| Feed Rate | 1,200–2,500 mm/min | <1,000 mm/min (excessive tool wear) |
| Coolant Flow | 15–20 L/min | <12 L/min (overheating risk) |
| Tool Engagement | ≤40% cutter diameter | >50% (chatter-induced fractures) |
This integrated process reduces lead times by 30% compared to industry averages while maintaining <0.5% defect rates for granite components. Honyo’s specialization in stone machining ensures compliance with architectural and industrial specifications without compromising structural integrity.
Start Your Project
Explore high-precision CNC granite cutting machines engineered for demanding industrial applications. Built with advanced motion control and diamond-tipped tooling, our machines deliver consistent accuracy and durability for stone fabrication.
Manufactured in Shenzhen with strict quality oversight, each unit is tested for performance and reliability before shipment.
For technical specifications, pricing, and custom configuration options, contact Susan Leo at [email protected].
