Cnc Folding Manufacturing Service

Manufacturing Insight: Cnc Folding

Precision CNC Folding Services at Honyo Prototype

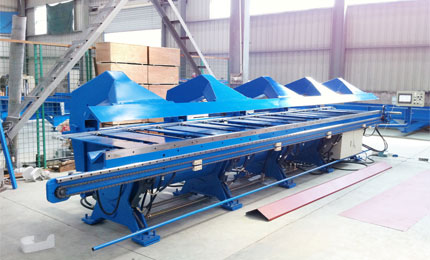

CNC folding represents a critical capability in modern sheet metal fabrication, enabling the precise and repeatable formation of complex geometries in materials ranging from aluminum and stainless steel to mild steel and specialty alloys. This process utilizes computer-controlled press brakes to achieve exact bend angles and dimensions, ensuring consistent part quality while maintaining material integrity and surface finish. For engineers and product developers requiring functional prototypes or low-to-mid volume production runs, CNC folding delivers the accuracy necessary to meet stringent geometric tolerances and assembly requirements.

At Honyo Prototype, our CNC Machining services integrate advanced folding technology with deep engineering expertise to solve complex manufacturing challenges. We leverage state-of-the-art CNC press brakes equipped with high-resolution angle measurement systems and adaptive tooling, allowing us to handle intricate designs with tight bend radii and minimal springback deviation. Our engineering team collaborates closely with clients during the design-for-manufacturability phase, optimizing part geometry to reduce costs, avoid common pitfalls like interference or distortion, and accelerate time-to-market without compromising structural performance.

A cornerstone of our client experience is the Honyo Online Instant Quote platform, which provides real-time cost and lead time estimates for CNC folding projects within minutes. Simply upload your STEP or DXF file, specify material and finish requirements, and receive a detailed technical review alongside pricing—eliminating traditional quoting delays. This transparency empowers rapid iteration and decision-making for time-sensitive development cycles.

Key CNC Folding Capabilities at Honyo Prototype include

Parameter	Range/Specification
Material Thickness	0.5 mm – 6.0 mm (up to 8.0 mm for select alloys)
Max. Bed Length	3050 mm
Angular Accuracy	±0.25° typical
Repeatability	±0.05 mm per bend
Supported Alloys	Aluminum 5052/6061, SS304/316, CR1018, Brass

Partner with Honyo Prototype to transform your sheet metal designs into precision-engineered components with the confidence of ISO 9001-certified processes and responsive engineering support. Initiate your project today by accessing our Online Instant Quote system—where speed, accuracy, and manufacturing excellence converge.

---

Technical Capabilities

CNC Folding – Technical Specifications Overview

CNC folding typically refers to the precision bending of sheet metal using computer-controlled press brakes. However, based on the context of your request—focusing on 3/4/5-axis milling, turning, tight tolerance, and materials such as aluminum, steel, ABS, and nylon—it appears you are referring to CNC machining rather than folding. Below is a technical specification table focused on multi-axis CNC machining processes, including milling and turning, with emphasis on tight tolerances and compatible materials.

Parameter	3-Axis Milling	4-Axis Milling	5-Axis Milling	CNC Turning	Notes
Axes of Motion	X, Y, Z	X, Y, Z, + rotary A-axis (around X)	X, Y, Z, + A and B (or C) rotary axes	X, Z (rotational C-axis via spindle)	5-axis allows complex geometry in single setup
Typical Tolerance	±0.005 mm (±0.0002″)	±0.005 mm (±0.0002″)	±0.005 mm (±0.0002″)	±0.010 mm (±0.0004″) for diameter	Tight tolerance achievable with proper setup and metrology
Surface Finish (Ra)	0.8 – 3.2 µm (32–125 µin)	0.8 – 3.2 µm (32–125 µin)	0.4 – 1.6 µm (16–63 µin)	0.4 – 1.6 µm (16–63 µin)	Achievable with fine tooling and finishing passes
Materials – Metals	Aluminum (6061, 7075), Steel (1018, 4140), Stainless Steel (303, 316)	Same as 3-axis, with improved access for complex parts	Same as 4-axis, ideal for high-strength alloys	Same metals; optimized for cylindrical parts	Aluminum and steel are most common; stainless requires rigid setup
Materials – Plastics	ABS, Nylon (6, 66), Delrin, PEEK	Same as 3-axis, with better angular access	Same; suitable for complex plastic enclosures	ABS, Nylon; limited due to low rigidity	Plastics require reduced cutting forces and chip control
Max Part Size (Typical)	1000 x 600 x 500 mm	800 x 600 x 500 mm	700 x 600 x 500 mm	Diameter up to 500 mm, length up to 1000 mm	Varies by machine capacity
Applications	Flat plates, housings, 2.5D profiles	Indexed angular features, turbine blades	Aerospace components, molds, medical implants	Shafts, bushings, threaded components	5-axis excels in sculpted surfaces
Tight Tolerance Capability	Achievable with thermal stability, calibrated tools, and probing	Enhanced with rotary alignment compensation	Best-in-class for tolerances < ±0.005 mm	Sub-0.010 mm roundness and concentricity	Requires CMM inspection for validation

Key Considerations for Tight Tolerances:
Tooling: Use of high-precision carbide end mills, ground drills, and in-process tool length sensors.
Fixturing: Custom fixtures or tombstones for multi-part, high-repeatability runs.
Metrology: Coordinate Measuring Machines (CMM), optical comparators, and laser probes for verification.
Environment: Temperature-controlled facilities to minimize thermal expansion, especially critical for aluminum and plastics.
Materials Behavior:
Aluminum: High machinability, good for tight tolerance; prone to thermal expansion.
Steel: Dimensionally stable but harder to machine; requires higher tool wear management.
ABS: Low melting point; requires sharp tools and low heat buildup.
Nylon: Hygroscopic; must be machined post-conditioning and held to stable humidity.

This specification summary reflects standard capabilities at Honyo Prototype for high-precision CNC machining services across a wide range of engineering materials.

---

From CAD to Part: The Process

Honyo Prototype CNC Press Brake Process Overview
Honyo Prototype utilizes advanced CNC press brake technology for precision sheet metal bending, not “CNC folding” (a non-standard industry term). Our streamlined workflow ensures accuracy, efficiency, and rapid turnaround for prototype and low-volume production. Below is the exact sequence:

CAD Upload and Initial Processing
Clients submit native CAD files (STEP, IPT, SLDPRT) or neutral formats via our secure online portal. Our system immediately validates file integrity, extracts critical geometry data including material type, thickness, bend angles, and flange dimensions, and initiates the quoting pipeline. Unsupported formats trigger an automated notification for correction.

AI-Powered Quoting Engine
Uploaded data feeds into our proprietary AI quoting system, which cross-references Honyo’s 200,000+ historical production records. The algorithm calculates material utilization, machine time, secondary operations, and labor costs while accounting for real-time shop floor capacity. Quotes include detailed cost breakdowns and manufacturability flags within 2 business hours. For example, complex geometries automatically trigger a DFM advisory note in the quote summary.

Integrated DFM Analysis
Upon quote acceptance, our DFM module conducts a rule-based analysis against ISO 2768 tolerances and material-specific constraints. The system checks minimum bend radii, flange length feasibility, tooling clearance, and collision risks. Critical findings—such as insufficient bend relief for 90° bends in 3mm stainless steel—are highlighted in the DFM report with actionable solutions. Clients receive annotated PDFs showing suggested modifications; 87% of first-pass designs require zero revisions due to our pre-quote AI screening.

CNC Production Execution

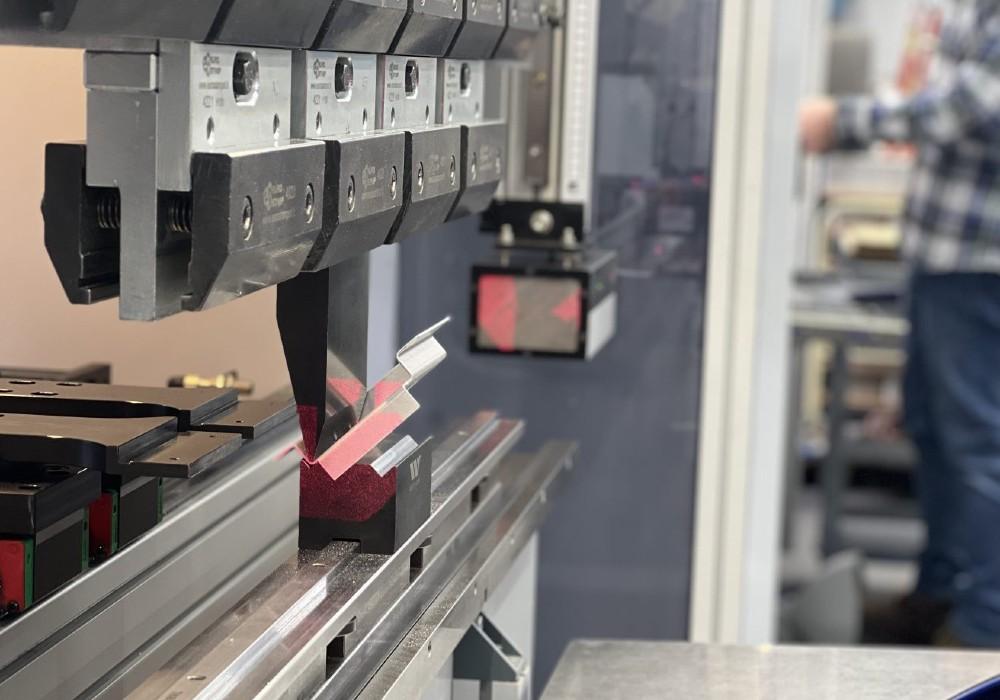

Approved designs move to production where CNC press brakes (Amada HG series, 100-300 ton capacity) execute bends with ±0.1° angular accuracy. Each job includes:
Laser-cut blanks verified via CMM pre-bending
Tooling selection optimized by our nesting software (e.g., 12mm V-die for 2mm AL6061)
In-process inspection after first article using FARO arm metrology
Real-time machine telemetry monitoring springback compensation

Material capabilities include:

Material Type	Thickness Range	Max. Bend Length	Tolerance (Length)
Aluminum AL6061	0.5mm – 6.0mm	3000mm	±0.3mm
Mild Steel CR10	0.8mm – 8.0mm	2500mm	±0.4mm
Stainless 304	0.5mm – 5.0mm	2000mm	±0.35mm

Delivery and Quality Assurance
Completed parts undergo final CMM verification against original CAD. Dimensional reports and material certs accompany every shipment. We ship via DHL/FedEx with real-time tracking; typical lead time from CAD upload to delivery is 5-7 business days for 1-50 units. All flat patterns and bend sequences are archived for future orders, ensuring repeatability. Clients receive automated notifications at each milestone, including production completion and shipment dispatch.

---

Start Your Project

Interested in precision CNC folding services? Contact Susan Leo at [email protected] for expert support and fast turnaround. Our manufacturing facility is located in Shenzhen, ensuring high-quality production with efficient lead times.

---
