Manufacturing Insight: Cnc Block
Precision CNC Machining for Prototype & Production Blocks
At Honyo Prototype, we transform raw material blocks into mission-critical components with uncompromising precision and efficiency. Our advanced CNC machining capabilities—including 3-, 4-, and 5-axis milling, turning, and multi-tasking centers—deliver complex geometries in metals, engineering plastics, and composites to tolerances as tight as ±0.0002 inches. Specializing in rapid prototyping and low-to-mid volume production, we support industries from aerospace to medical device development with rigorous quality control, ISO 9001-certified processes, and expert engineering collaboration from design validation through final inspection.
Accelerate your development cycle with Honyo’s Online Instant Quote platform. Upload your CAD file, specify material and finish requirements, and receive a detailed manufacturability analysis with competitive pricing in under 60 seconds—no sales calls or email delays. This seamless integration of technical expertise and digital workflow eliminates quoting bottlenecks, empowering engineers and procurement teams to move from concept to machined block faster than industry standards allow. Trust Honyo to convert your raw stock into certified, ready-to-assemble components with the speed and precision your projects demand.
Technical Capabilities
CNC block machining involves precision material removal using computer-controlled tools to produce complex geometries with high accuracy. Honyo Prototype specializes in multi-axis CNC milling (3, 4, and 5-axis) and CNC turning for tight-tolerance components across a range of engineering materials including Aluminum, Steel, ABS, and Nylon. Our advanced machining capabilities support both prototyping and low-to-mid volume production with tolerances down to ±0.002 mm (±0.0001″) depending on geometry and material.
| Feature | Specification Details |
|---|---|
| Machining Processes | 3-Axis, 4-Axis, and 5-Axis CNC Milling; CNC Turning (including live tooling) |
| Tolerance Capability | Standard: ±0.025 mm (±0.001″) Tight Tolerance: ±0.005 mm (±0.0002″) achievable with process control |
| Surface Finish | As-machined: 3.2 μm (125 μin) Polished/Post-processed: Down to 0.4 μm (16 μin) |
| Max Work Envelope (Milling) | 5-Axis: 1000 x 800 x 600 mm (39.4 x 31.5 x 23.6 in) 3/4-Axis: Up to 1200 x 750 x 500 mm |
| Max Turning Diameter | 300 mm (11.8 in) Max Length: 500 mm (19.7 in) |
| Spindle Speed (Milling) | Up to 24,000 RPM (High-speed options available for Aluminum and plastics) |
| Positioning Accuracy | ±0.005 mm (±0.0002″) |
| Repeatability | ±0.003 mm (±0.0001″) |
Material Compatibility:
| Material | Typical Applications | Machinability | Max Tolerance (Typical) | Notes |
|---|---|---|---|---|
| Aluminum (6061, 7075) | Aerospace, Automotive, Enclosures | Excellent | ±0.01 mm | High strength-to-weight; good corrosion resistance; ideal for 5-axis complex parts |
| Steel (1018, 4140, Stainless 304/316) | Industrial, Medical, Tooling | Moderate | ±0.005 mm | High durability; suitable for tight-tolerance turning and milling; post-process treatments available |
| ABS | Prototypes, Housings, Jigs & Fixtures | Very Good | ±0.05 mm | Easy to machine; low melting point; excellent for functional prototypes |
| Nylon (6, 66, GF-filled) | Wear strips, Gears, Insulators | Good | ±0.05 mm | Low friction; high toughness; hygroscopic—requires conditioning before machining |
All CNC block operations are supported by in-process inspection (CMM, laser probing) and first-article inspection reports (FAIR) upon request. We ensure full traceability, material certifications, and adherence to ISO 2768 and customer-specific GD&T standards.
From CAD to Part: The Process
Honyo Prototype’s CNC block manufacturing process delivers precision-machined components from digital design to physical part through a rigorously controlled workflow designed for speed, accuracy, and manufacturability. This process specifically addresses the production of parts machined from solid billet stock (blocks) using 3-, 4-, or 5-axis CNC milling and turning centers. Below is the detailed technical workflow.
CAD File Upload and Validation
The process initiates when the client uploads a native or neutral CAD file (STEP, IGES, Parasolid, or native formats including SolidWorks, Creo, NX) via Honyo’s secure customer portal. Our system performs immediate automated validation checks for geometry integrity, unit consistency, and file completeness. Files failing validation trigger a specific error report to the client, preventing downstream delays. Validated files proceed directly into the quoting engine without manual intervention.
AI-Powered Instant Quoting and Manufacturability Assessment
Honyo’s proprietary AI engine analyzes the validated CAD geometry in conjunction with material selection, quantity, and specified tolerances. This system calculates machine time, material utilization, fixture requirements, and secondary operations while simultaneously scoring manufacturability risks. The output is a comprehensive quote delivered within minutes, including: a firm price, estimated lead time, a DFM risk score (1-5, where 5 is high risk), and preliminary recommendations for potential geometry simplifications. Crucially, this AI stage identifies critical features requiring tight tolerance control or complex fixturing before human engineering review.
Engineer-Led DFM Analysis and Client Collaboration
All quotes undergo mandatory review by a Honyo Senior Manufacturing Engineer specializing in CNC block machining. The engineer validates the AI assessment, focusing on geometric complexity, tool access, wall thickness stability, and datum scheme feasibility. For parts scoring ≥3 on the DFM risk scale, the engineer generates specific, actionable recommendations—such as adjusting non-critical radii, modifying undercuts, or suggesting alternative stock sizes—to improve yield and reduce cost. These recommendations, alongside a detailed tolerance stack-up analysis for critical features, are presented to the client via the portal. Client approval or requested modifications must be formally acknowledged before production release, ensuring alignment on technical requirements.
CNC Production Execution

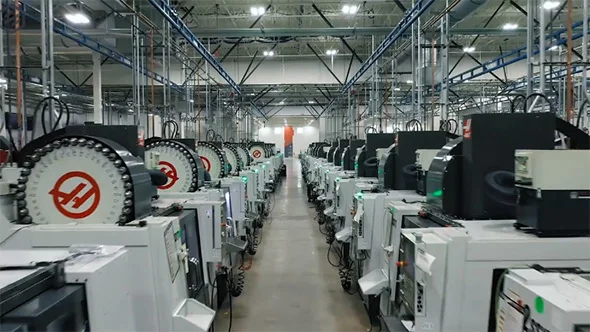

Upon client approval, the job enters production with strict adherence to Honyo’s documented procedures. Material certification (e.g., mill test reports for 6061-T6 aluminum or 304 stainless steel) is verified prior to cutting. Machining utilizes optimized, validated toolpaths generated in Mastercam or Siemens NX CAM, with in-process CMM verification at defined stages for features exceeding ±0.005″ tolerance. All blocks are machined on Haas, DMG MORI, or Makino equipment with real-time tool wear compensation. Secondary operations like deburring, heat treating (if specified), anodizing, or precision grinding are tracked via integrated MES, with full material and process traceability maintained.
Quality-Controlled Delivery and Documentation
Final inspection occurs against the approved drawing using calibrated CMMs, optical comparators, and surface roughness testers. A comprehensive inspection report (including FAI per AS9102 where applicable) and material certs are packaged with the shipment. Parts are vacuum-sealed with desiccant for moisture-sensitive materials and shipped via client-specified carriers with real-time tracking. Delivery includes digital access to all process documentation through the client portal, enabling full audit trail verification.
The following table summarizes typical throughput metrics for standard CNC block projects:
| Process Stage | Standard Block (≤ 150mm cube, Al 6061) | Complex Block (Multi-axis, Tight Tolerances) |
|---|---|---|
| AI Quote Generation | < 10 minutes | < 15 minutes |
| DFM Engineer Review | 4-8 business hours | 12-24 business hours |
| Production Lead Time | 3-5 business days | 7-12 business days |
| Typical First-Pass Yield | 98.5% | 92.0% |
This integrated process minimizes non-value-added time while ensuring engineering rigor at critical decision points. Honyo’s closed-loop system captures DFM feedback and production data to continuously refine the AI quoting engine, directly improving future manufacturability assessments for all clients.
Start Your Project
Looking for precision CNC block machining? Contact Susan Leo at [email protected] to discuss your project requirements.
Honyo Prototype operates a dedicated manufacturing facility in Shenzhen, ensuring tight tolerances, fast turnaround, and consistent quality for all CNC-machined components.
Reach out today to request a quote or technical consultation.
