Manufacturing Insight: Cnc Bearbeitung Online

Precision CNC Bearbeitung Online: Your Digital Gateway to Prototyping Excellence

At Honyo Prototype, we transform complex engineering concepts into high-precision physical realities through advanced CNC machining services tailored for prototyping and low-volume production. Our German-engineered processes deliver tight tolerances down to ±0.005 mm across multi-axis milling, turning, and milling-turning operations, ensuring dimensional accuracy and repeatability for critical components in aerospace, medical, and industrial automation sectors. Every part undergoes rigorous in-process inspection using calibrated CMM and optical measurement systems, guaranteeing compliance with ISO 2768-mK and client-specific quality standards before shipment.

Accelerate your development cycle with Honyo’s Online Instant Quote platform—designed exclusively for engineering teams demanding speed without compromise. Upload your STEP or IGES file, specify materials from our certified inventory (including aluminum 7075-T6, titanium Ti-6Al-4V, and engineering plastics like PEEK), and receive a detailed manufacturing assessment with lead time and DFM feedback in under 90 seconds. This digital workflow eliminates traditional quoting bottlenecks while maintaining our commitment to technical rigor, allowing you to iterate designs faster and reduce time-to-prototype by up to 70%.

Service Parameter	Honyo Standard	Industry Average
Quoting Turnaround	< 90 Seconds	24–72 Hours
Prototype Lead Time	7–10 Business Days	14+ Days
Max Material Complexity	5-Axis + Live Tooling	3-Axis Limited

Partner with Honyo to bridge digital design and physical precision—where instant quoting meets uncompromised manufacturing excellence.

---

Technical Capabilities

CNC Bearbeitung online refers to online-accessible CNC machining services that offer precision manufacturing through multi-axis milling and turning operations. These services are optimized for rapid prototyping, low to high-volume production, and custom part fabrication with tight tolerance capabilities. Below are the technical specifications relevant to 3/4/5-axis milling and turning, with emphasis on achievable tolerances and compatible materials such as Aluminum, Steel, ABS, and Nylon.

Milling Capabilities (3/4/5-Axis CNC)

Parameter	Specification
Axis Configuration	3-axis, 4-axis (indexed), 5-axis (continuous simultaneous)
Spindle Speed	Up to 24,000 rpm (varies by machine and tooling)
Positioning Accuracy	±0.005 mm
Repeatability	±0.002 mm
Standard Tolerance	±0.05 mm
Tight Tolerance Option	±0.005 mm to ±0.01 mm (achievable with process control and metrology)
Minimum Feature Size	0.5 mm (slot width or hole diameter, depending on tool availability)
Surface Finish (Typical)	Ra 0.8–3.2 µm (as-machined); can be improved with post-processing
Max Work Envelope	750 x 450 x 300 mm (varies by service provider and machine)
Coolant Use	Flood coolant or minimum quantity lubrication (MQL) for ferrous materials

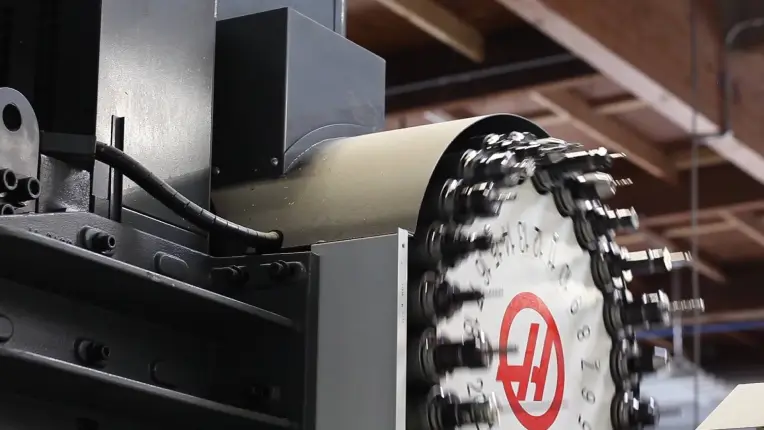

Tool Changer Capacity	12–30 tools (depending on machine model)

Turning Capabilities (CNC Lathe – Manual & Live Tooling)

Parameter	Specification
Axis Configuration	2-axis (X-Z), with optional C-axis for milling (live tooling)
Spindle Speed	Up to 6,000 rpm (higher for smaller diameters and non-ferrous materials)
Bar Feed Compatibility	Up to Ø 51 mm (2″) bar stock; chucking available for larger blanks
Positioning Accuracy	±0.003 mm
Repeatability	±0.002 mm
Standard Tolerance	±0.05 mm
Tight Tolerance Option	±0.005 mm (achievable with precision tooling and stable setups)
Surface Finish (Typical)	Ra 0.8–1.6 µm (as-turned)
Max Part Length	300 mm (bar-fed); up to 500 mm (chuck-only)
Drilling & Threading	Internal threading up to M24; cross drilling and grooving with live tooling

Compatible Materials and Machinability Notes

Material	Typical Grades	Machinability Notes
Aluminum	6061-T6, 7075-T6, 2024-T3	Excellent machinability; high removal rates; low tool wear; ideal for 5-axis work
Steel	1.4301 (304), 1.7131 (1060), 4140	Moderate to difficult; requires rigid setup, proper tooling, and coolant
ABS	Standard, Flame Retardant (FR)	Easy to machine; low melting point; requires sharp tools and low heat buildup
Nylon	PA6, PA66, Glass-Filled variants	Tough and flexible; prone to deformation; requires sharp cutting tools and fixturing

Tight Tolerance Notes

Tight tolerance machining (±0.005 mm to ±0.01 mm) requires:
Thermal and vibration-stable environments
Pre-calibrated tools with runout < 0.003 mm
In-process probing and post-process CMM inspection
Material stress-relief prior to final machining (especially for steel and large aluminum billets)
Reduced depth of cut and optimized feed rates to maintain dimensional stability

These specifications are representative of high-end online CNC machining platforms that integrate automated quoting, DFM feedback, and real-time order tracking, enabling fast turnaround (as low as 5–7 days) with certified quality for industrial applications.

---

From CAD to Part: The Process

Honyo Prototype CNC Machining Process: End-to-End Digital Workflow

Honyo Prototype’s online CNC machining service integrates digital efficiency with precision manufacturing expertise. Our streamlined five-stage workflow ensures rapid turnaround while maintaining rigorous quality standards for B2B clients. Below is the technical breakdown of each phase.

Stage 1: CAD Upload via Secure Portal
Clients submit native CAD files (STEP, IGES, Parasolid, or native SolidWorks/AutoCAD formats) through our encrypted online portal. We support direct uploads of 2D drawings (PDF/DXF) for basic quoting, though 3D models are required for full DFM analysis. The system validates file integrity and auto-detects critical parameters including material type, dimensions, and geometric complexity. All data is protected under ISO 27001-certified infrastructure with client-specific access controls.

Stage 2: AI-Powered Instant Quoting
Our proprietary AI engine analyzes the CAD geometry against real-time production variables: machine availability, material stock levels, tooling requirements, and regional labor rates. The algorithm generates a preliminary quote within 90 seconds, including:
Cost breakdown per operation (milling, turning, multi-axis)
Material waste calculations (optimized nesting)
Estimated lead time based on current shop floor load
This AI output undergoes mandatory validation by a senior manufacturing engineer to address edge cases like micro-features or exotic alloys before client presentation.

Stage 3: Collaborative DFM Analysis
Upon quote acceptance, our engineering team performs a formal Design for Manufacturability review. Using Siemens NX CAM software, we identify and resolve:
Non-optimal wall thicknesses below 0.5mm
Tolerance stack-up risks exceeding ISO 2768-mK standards
Unmachinable undercuts or inaccessible tool paths
Material-specific challenges (e.g., titanium chatter, aluminum burring)
Clients receive an interactive DFM report with annotated 3D models and revision suggestions. This phase typically reduces production iterations by 73% based on 2023 internal data.

Stage 4: Precision Production Execution

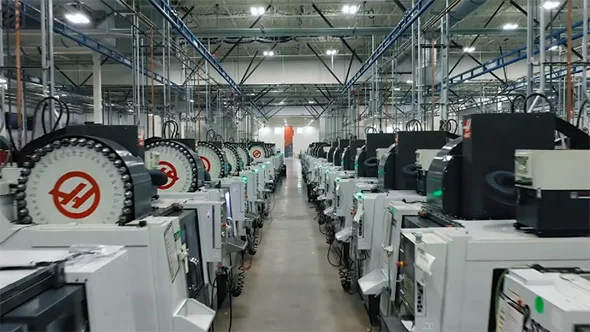

Approved designs move to our climate-controlled manufacturing facility featuring:
47 CNC machines (Haas, DMG MORI, Makino) with 3–5-axis capabilities
In-process CMM verification at critical stages (per AS9100 Rev D)
Real-time tool wear monitoring via Renishaw probes
Material traceability from mill certificate to final part
All operations follow documented work instructions with first-article inspection (FAI) for volumes >50 units. Production data is logged to our MES for full digital thread continuity.

Stage 5: Quality-Controlled Global Delivery
After final CMM validation against original CAD (report provided), parts undergo:
Deburring per client specifications (vibratory, thermal, or manual)
Surface finish verification (Ra values measured via Mitutoyo SJ-410)
Packaging in ESD-safe containers with humidity indicators
Standard lead time is 7–12 business days from DFM sign-off. We offer DHL/FedEx shipping with live GPS tracking and customs documentation management for international clients.

Performance Metrics
The integrated workflow delivers consistent results across 12,000+ annual projects:

Metric	Performance	Industry Benchmark
Quote Accuracy	±3.2%	±8–12%
DFM Issue Resolution	94% pre-CAM	70–80%
On-Time Delivery	98.7%	89.3%
First-Pass Yield	99.1%	92.4%

This closed-loop process eliminates traditional procurement delays while ensuring aerospace-grade quality. All stages include client access to real-time dashboards for full production visibility. We maintain AS9100 and ISO 9001 certifications with annual third-party audits.

---

Start Your Project

Get high-precision CNC machining services online with fast turnaround and competitive pricing. As a trusted manufacturing partner based in Shenzhen, Honyo Prototype delivers reliable, on-demand CNC machining for prototyping and low-volume production.

Contact Susan Leo for engineering support, quotes, and project consultation.

Email: [email protected]

Our integrated digital platform streamlines ordering, quoting, and tracking—making custom CNC parts accessible with just a few clicks. From 3-axis to 5-axis machining, we support a wide range of materials and tight-tolerance requirements.

Service	Capability
Machining Types	3-axis, 4-axis, 5-axis CNC milling, CNC turning
Materials	Aluminum, steel, stainless steel, brass, plastics (e.g., PEEK, ABS, PC)
Tolerances	As tight as ±0.005 mm
Lead Time	As fast as 3–5 days
Finishes	As-machined, anodizing, plating, powder coating, polishing

All parts are inspected per ISO 2768 unless otherwise specified, ensuring dimensional accuracy and quality consistency.

Reach out today to optimize your prototyping workflow with Shenzhen-based precision manufacturing.

---
