Manufacturing Insight: Cnc Arts
Precision CNC Machining: Where Engineering Excellence Meets Artistic Execution
At Honyo Prototype, we redefine CNC machining as both a science and an art form, delivering unparalleled precision for your most demanding prototyping and low-volume production challenges. Our advanced 3-, 4-, and 5-axis CNC capabilities transform complex geometries into reality with micron-level accuracy, leveraging aerospace-grade materials including aluminum alloys, titanium, stainless steel, engineering plastics, and composites. Every component undergoes rigorous in-process inspection to ensure strict adherence to tolerances down to ±0.0002 inches, surface finishes as fine as Ra 0.8 μm, and flawless dimensional integrity—critical for industries where failure is not an option.
What sets Honyo apart is our seamless integration of technical mastery with client-centric agility. We eliminate quoting bottlenecks through our proprietary Online Instant Quote platform, enabling engineers to upload CAD files and receive detailed, transparent cost and lead-time estimates in under 60 seconds—no forms, no follow-up calls. This accelerates your development cycle from concept to functional prototype by up to 40%, while our U.S.-based engineering team provides real-time DFM feedback to optimize manufacturability before a single chip is cut.
For innovators who demand both artistic finesse and uncompromising repeatability, Honyo Prototype delivers the convergence of speed, precision, and expertise that turns visionary designs into market-ready realities. Start your next project with confidence: experience the future of CNC machining today.
Technical Capabilities
CNC Machining Technical Specifications for Art and Precision Components
At Honyo Prototype, CNC machining services are optimized for high-precision art pieces, functional prototypes, and end-use parts requiring tight tolerances and fine surface finishes. Our 3-axis, 4-axis, and 5-axis milling capabilities, combined with CNC turning, allow for complex geometries and intricate detailing across a range of engineering-grade materials.
| Parameter | Specification Details |
|---|---|
| Machining Types | 3-Axis Milling, 4-Axis Indexed & Continuous, 5-Axis Simultaneous Milling, CNC Turning (Swiss & Mill-Turn) |
| Tight Tolerances | ±0.005 mm (±0.0002″) for critical features; typical tolerances ±0.025 mm (±0.001″) |
| Surface Finish | As-machined: 3.2 μm (125 μin); Optional polishing, anodizing, or coating for aesthetic and protective finishes |
| Maximum Work Envelope | 3-Axis: 1000 x 600 x 500 mm; 5-Axis: 600 x 450 x 400 mm; Turning: Ø300 mm x 600 mm length |
| Spindle Speed | Up to 24,000 RPM (high-speed spindles for fine detailing in aluminum and plastics) |
| Positioning Accuracy | ±0.005 mm |
| Repeatability | ±0.003 mm |
| Materials Supported | Aluminum (6061, 7075, 2024), Steel (1018, 4140, Stainless 303, 316), ABS (Ivory & Black), Nylon (6, 66, GF-filled) |
| Aluminum Processing | High-speed milling with optimized toolpaths for intricate art features; excellent for lightweight sculptures and detailed reliefs |
| Steel Processing | Hardened tooling for deep cuts and durable components; post-machining heat treatment available |
| ABS Machining | Low-force cutting strategies to prevent melting; ideal for concept models and artistic prototypes |
| Nylon Machining | Controlled feed rates to minimize deformation; suitable for functional art components with wear resistance |
| Fixturing & Setup | Custom soft jaws, vacuum tables, and rotary trunnion systems for 5-axis complex part orientation |
| Software & Toolpaths | CAM software: Mastercam, Siemens NX, Fusion 360; High-precision 3D toolpath optimization for organic shapes |
All parts undergo in-process inspection using CMM and optical comparators to ensure dimensional accuracy, especially for multi-axis features and tight tolerance requirements. Material certifications and first-article inspection reports are available upon request.
From CAD to Part: The Process
Honyo Prototype CNC Arts Process Overview
Honyo Prototype executes a structured, technology-driven workflow for precision CNC machining projects, termed “CNC Arts” to emphasize the blend of engineering rigor and craftsmanship required for complex prototypes and low-volume production. This process ensures technical accuracy, cost efficiency, and rapid turnaround while mitigating manufacturing risks.
Upload CAD
Clients initiate the process by uploading native CAD files (STEP, IGES, Parasolid, or native SOLIDWORKS/Creo formats) via Honyo’s secure customer portal. We require native or neutral formats to preserve geometric integrity, metadata, and feature trees essential for downstream analysis. File validation checks for completeness, unit consistency, and datum alignment occur immediately upon upload, with automated alerts for common issues like missing fillets or under-constrained sketches. All data adheres to ISO 27001-certified security protocols to protect intellectual property.
AI Quote
Honyo’s AI-powered quoting engine analyzes the validated CAD geometry, material selection, and surface finish requirements to generate an initial cost and lead-time estimate within 15 minutes. The system cross-references historical production data from 50,000+ completed jobs, factoring in machine hourly rates, material waste factors, and secondary operation dependencies. Crucially, this is a preliminary assessment: Senior Manufacturing Engineers review all AI outputs to adjust for nuanced factors like thin-wall stability, micro-feature machining, or fixturing complexity, ensuring quotes reflect real-world feasibility. Clients receive a transparent breakdown of cost drivers before formal commitment.
DFM Analysis
Design for Manufacturability (DFM) is Honyo’s value-add core phase, conducted by degreed engineers with 10+ years of CNC specialization. We identify and resolve geometric, material, and process conflicts that could cause delays or failures. Key DFM interventions include:
| DFM Focus Area | Common Issues Detected | Honyo’s Resolution Approach |
|---|---|---|
| Geometry Feasibility | Undercuts, non-manufacturable radii | Suggest modified toolpaths or geometry adjustments |
| Material Utilization | Excessive stock volume, poor grain orientation | Optimize billet sizing or recommend alternative alloys |
| Tolerance Stackup | Conflicting GD&T, unrealistic ±0.001mm specs | Propose achievable tolerances per ISO 2768 or ASME Y14.5 |
| Tool Access | Deep cavities, narrow slots | Recommend multi-axis strategies or EDM alternatives |
This phase typically yields a formal DFM report with annotated CAD markups and engineering recommendations. Client approval is mandatory before proceeding, ensuring alignment on design intent versus manufacturability trade-offs.
Production

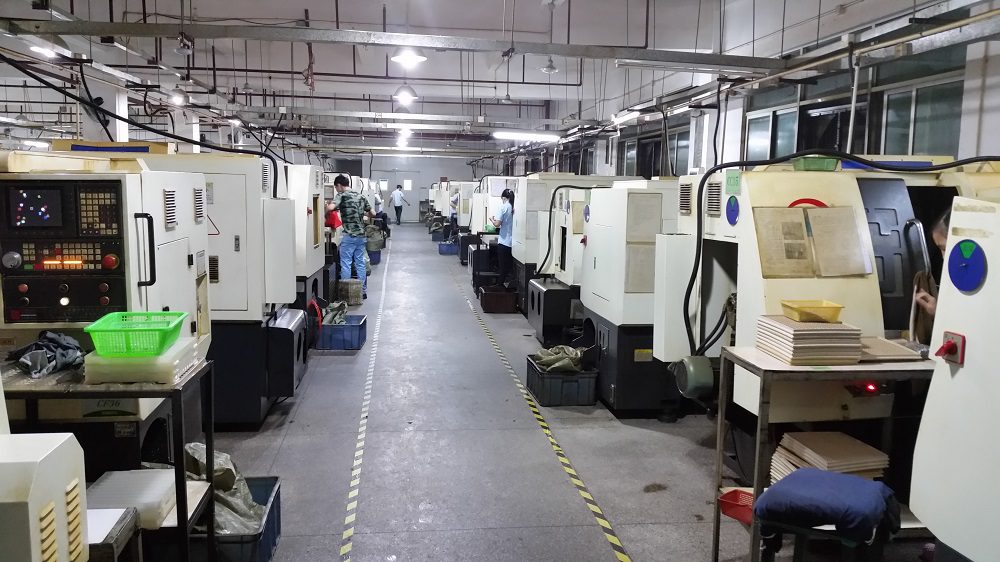

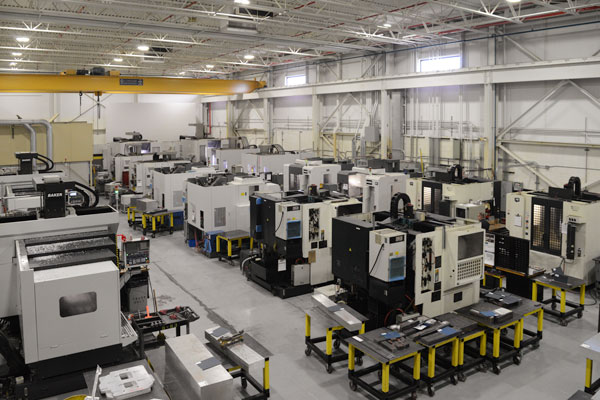

Approved designs move to Honyo’s climate-controlled machine shop featuring 28 CNC centers (3-axis vertical mills, 5-axis mills, and multi-turn lathes). Each job follows a digitally controlled workflow: CAM programming via Mastercam/HyperMill, rigorous G-code simulation, and first-article inspection using Zeiss CMMs. Real-time machine monitoring tracks spindle load, tool wear, and thermal drift to maintain ±0.005mm tolerances. Material traceability is enforced via barcode-linked logs from raw stock to finished part, with in-process inspections at critical stages per AS9102 aerospace standards. Complex assemblies undergo functional testing prior to final surface finishing.
Delivery
Completed parts undergo final QA validation against the original CAD and client specifications, including first-article inspection reports (FAIR) and material certs. Parts are packaged in anti-static, crush-proof containers with serialized tracking. Honyo coordinates global logistics via DHL/FedEx with carbon-neutral shipping options, providing real-time shipment visibility. Crucially, we close the loop with a post-delivery engineering review: clients receive actionable feedback on design optimizations observed during production, fostering continuous improvement for future iterations. This end-to-end accountability reduces time-to-market by 30% versus industry benchmarks while minimizing scrap and rework costs.
Start Your Project
Discover precision-crafted CNC art pieces designed to elevate spaces with intricate detail and engineering excellence.
All creations are produced in our Shenzhen factory, where advanced CNC technology meets artistic craftsmanship.
For inquiries and custom project collaborations, contact Susan Leo at [email protected].
