Introducing Honyo’s CNC 3: Precision Machining Engineered for Accelerated Prototyping
Honyo Prototype delivers industry-leading CNC machining services designed specifically for the demanding requirements of rapid, high-fidelity prototyping and low-volume production. Our CNC 3 capability represents the culmination of advanced multi-axis technology, stringent quality control protocols, and deep material science expertise, enabling us to consistently achieve tight tolerances down to ±0.0002″ across complex geometries. We specialize in machining a comprehensive range of engineering-grade materials including aerospace alloys like Inconel and titanium, medical-grade stainless steels, high-performance polymers, and specialty composites, ensuring your prototype meets exact functional and regulatory specifications.
The foundation of CNC 3 lies in our integrated digital manufacturing ecosystem. This includes seamless CAD/CAM integration, in-process inspection using calibrated CMMs, and a robust thermal compensation system within our state-of-the-art 5-axis machining centers. This technical infrastructure guarantees dimensional accuracy and surface finishes critical for form, fit, and functional validation, directly reducing iteration cycles during your product development phase. Crucially, Honyo eliminates traditional quoting bottlenecks through our proprietary Online Instant Quote platform. Engineering teams can now upload native CAD files directly to our secure portal and receive a detailed, factory-validated cost and lead time estimate within minutes, not days. This real-time pricing transparency, coupled with digital submission and tracking, significantly compresses the early stages of your procurement workflow.
By combining the precision and flexibility of CNC 3 with the operational efficiency of our Online Instant Quote system, Honyo Prototype provides a decisive advantage. We transform CNC machining from a potential project constraint into a strategic enabler, accelerating your path from initial concept to final validation while maintaining uncompromising quality standards essential for mission-critical applications. Partner with Honyo to de-risk your prototyping and leverage manufacturing intelligence from day one.
Technical Capabilities
CNC 3 Technical Specifications
The CNC 3 is a high-precision, multi-axis machining platform engineered for advanced 3-, 4-, and 5-axis milling operations, as well as precision turning. Designed for prototyping and low-volume production, it delivers consistent tight-tolerance performance across a range of engineering-grade materials including aluminum, steel, ABS, and nylon. The system integrates rigid construction, high-resolution feedback, and advanced motion control to maintain ±0.005 mm (±0.0002″) geometric accuracy across complex geometries.
| Parameter | Specification |
|---|---|
| Machining Axes | 3-axis standard, 4-axis (rotary B or C), 5-axis simultaneous (optional) |
| Spindle Speed | 24,000 RPM max, HSK-63 or BT30 interface |
| Positioning Accuracy | ±0.003 mm (±0.0001″) |
| Repeatability | ±0.002 mm (±0.00008″) |
| Tolerance Capability | ±0.005 mm (±0.0002″) typical for milled features; ±0.01 mm for turned parts |
| Work Envelope (XYZ) | 500 mm × 400 mm × 300 mm (19.7″ × 15.7″ × 11.8″) |
| Rapid Traverse Rate (XYZ) | 36 m/min (1,417 ipm) |
| Tool Changer | Automatic 24-tool ATC (optional 30-tool) |
| Control System | Fanuc 31i-B5 or Siemens 840D with 5-axis RTCP support |
| Coolant System | High-pressure through-spindle coolant (optional mist cooling) |
| Materials Supported | Aluminum (6061, 7075), Steel (1018, 4140, stainless), ABS, Nylon (6 & 66) |
| Max Material Hardness | 60 HRC (for hardened steel with appropriate tooling) |
| Surface Finish | As low as 0.8 µm Ra (32 µin) with fine milling |
| Turning Capability | Integrated live tooling for mill-turn operations; sub-spindle optional |
| Fixture Compatibility | Modular fixturing with T-slots and vacuum table options |
The CNC 3 demonstrates exceptional dimensional stability when machining both metallic and engineering thermoplastics. Aluminum and steel parts are routinely held within ±0.01 mm on critical dimensions, while ABS and nylon benefit from optimized feed rates and non-contact tool paths to minimize thermal deformation. 5-axis capability enables single-setup machining of complex contours, reducing cumulative tolerance stack-up. This system is ideal for aerospace, medical, and industrial applications requiring high repeatability and tight-tolerance outputs.
From CAD to Part: The Process
Honyo Prototype CNC 3 Process Overview
Honyo Prototype’s CNC 3 service delivers precision-machined prototypes and low-volume production parts through a streamlined, technology-driven workflow. This process prioritizes accuracy, manufacturability, and speed while maintaining rigorous quality control. Below is a detailed explanation of each stage.
CAD Upload
Clients initiate the process by uploading native or neutral CAD files (STEP, IGES, Parasolid, or native formats like SolidWorks, Fusion 360) via Honyo’s secure online portal. The system validates file integrity, confirms geometric completeness, and applies automated intellectual property safeguards under NDA coverage. Unsupported formats or incomplete geometries trigger immediate client notification for correction, preventing downstream delays. This stage establishes the foundational digital twin for all subsequent operations.
AI-Assisted Quoting
Uploaded CAD data feeds into Honyo’s proprietary AI quoting engine, which analyzes geometric complexity, material requirements, tolerances, and surface finish specifications. The AI cross-references real-time machine availability, material stock levels, and shop floor capacity to generate a preliminary quote within 2 hours. Crucially, this is not a fully automated output; Honyo’s application engineers review and refine the AI’s assessment, incorporating nuanced factors like multi-axis setup complexity or secondary operations. Clients receive a detailed quote including cost breakdown, lead time, and explicit assumptions about material grade or finishing.
DFM Analysis and Optimization
Upon quote acceptance, Honyo’s engineering team conducts a formal Design for Manufacturability (DFM) review. This stage identifies potential production hurdles such as non-optimal wall thicknesses, inadequate tool access, excessive tolerances in non-critical areas, or inefficient part orientation. The DFM report provides actionable recommendations—such as minor feature adjustments to reduce cycle time or eliminate secondary fixtures—with clear justification of time/cost impact. Client collaboration is mandatory; revisions are implemented only after explicit approval, ensuring alignment with functional requirements. This step typically reduces production iterations by 40–60% compared to non-DFM-reviewed designs.
Production Execution

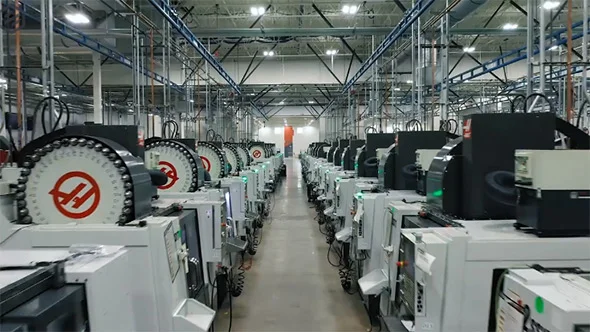

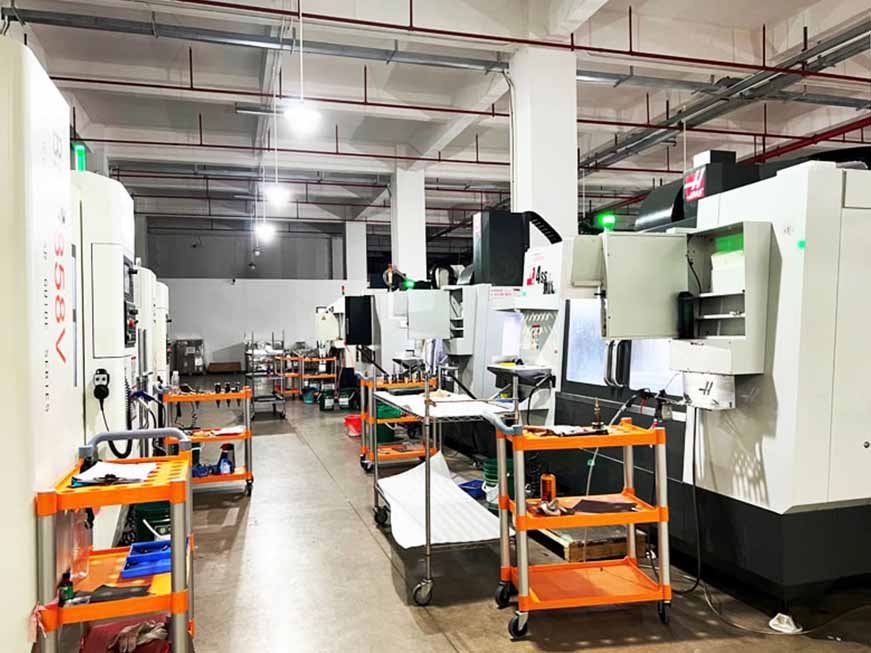

Approved designs move to Honyo’s climate-controlled CNC facility housing Haas and DMG MORI 3–5 axis machining centers. Each job undergoes:
Rigorous first-article inspection (FAI) using CMM and optical comparators against GD&T callouts
In-process checks at critical stages (e.g., after roughing, before finishing)
Material traceability from certified mills (with CoC documentation)
Real-time machine monitoring for tool wear and vibration anomalies
Complex assemblies receive dedicated project management, with weekly progress updates including inspection data. All processes adhere to ISO 9001:2015 and IATF 16949 standards, with full documentation archived for auditability.
Delivery and Quality Assurance
Final parts undergo 100% functional inspection against the client’s print, with critical dimensions verified via calibrated equipment. Certificates of Conformance (CoC) detailing material certs, process parameters, and inspection results accompany every shipment. Honyo manages global logistics through DHL/FedEx with real-time tracking, and offers kitting/packaging tailored to client assembly lines. Post-delivery, clients receive access to a digital quality dashboard showing process capability data (Cp/Cpk) for key features. Typical lead time from CAD upload to delivery is 5–12 business days for 3-axis work, depending on complexity.
Material and Tolerance Capabilities for CNC 3
| Parameter | Specification |
|———————|—————————————-|
| Materials | Aluminum 6061/7075, Steel 1018/4140, Stainless 303/316, Titanium Gr5, Plastics (PEEK, Delrin) |
| Standard Tolerance | ±0.005 mm (±0.0002″) |
| Precision Tolerance | ±0.001 mm (±0.00004″) with metrology-grade verification |
| Max Work Envelope | 1000 x 600 x 500 mm (39″ x 24″ x 20″) |
| Surface Finish | As-machined (Ra 1.6 µm) to mirror polish (Ra 0.05 µm) |
This integrated workflow ensures Honyo Prototype’s CNC 3 service minimizes time-to-market while delivering production-intent quality, with engineering collaboration embedded at every phase to mitigate risk and optimize value.
Start Your Project
Interested in learning more about CNC 3? Contact Susan Leo at [email protected] for detailed specifications, pricing, and lead times.

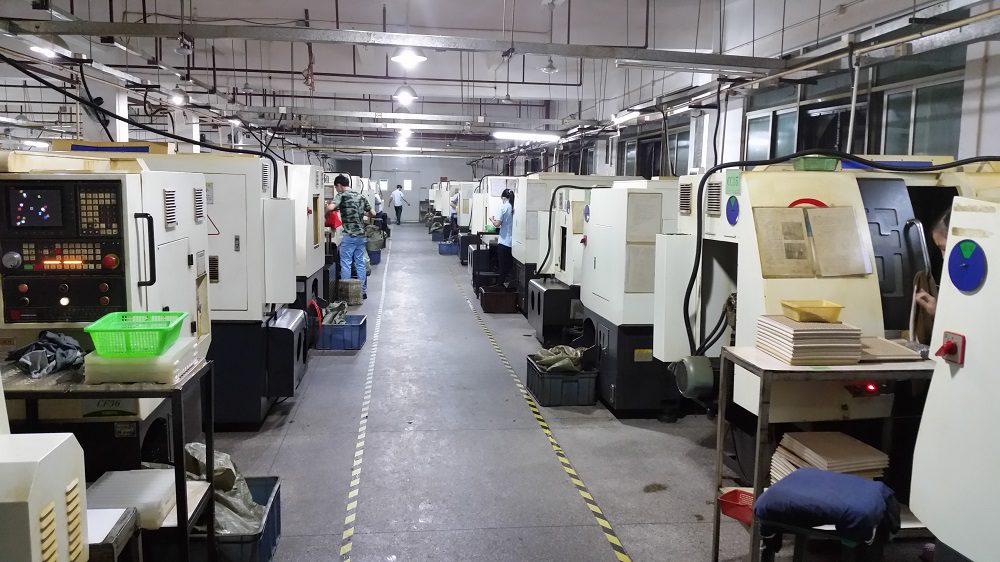

Honyo Prototype operates a fully equipped manufacturing facility in Shenzhen, enabling rapid prototyping and high-precision CNC machining for low to medium volume production runs.
Reach out today to discuss your project requirements and discover how our CNC 3 capabilities can support your product development timeline.
