China Cnc Prototyping Manufacturing Service

Manufacturing Insight: China Cnc Prototyping

Precision CNC Prototyping from China Engineered for Speed and Reliability

When global engineering teams require CNC prototyping from China that delivers uncompromising quality without sacrificing speed, Honyo Prototype stands as the strategic manufacturing partner of choice. We leverage advanced multi-axis CNC machining centers—including 5-axis milling and precision turning systems—paired with stringent ISO 9001-certified processes to transform complex CAD models into functional prototypes with tolerances down to ±0.005mm. Our facility specializes in rapid iteration across aerospace-grade aluminum, medical stainless steel, engineering plastics, and exotic alloys, ensuring your design intent is validated accurately for form, fit, and function.

Unlike conventional Chinese prototyping suppliers, Honyo integrates engineering rigor with responsive B2B workflows. Our proprietary Online Instant Quote platform eliminates procurement delays by providing detailed manufacturability feedback and turnkey pricing in under 60 seconds—directly from your browser. Upload STEP or IGES files to instantly assess lead times, material costs, and DFM insights tailored to your project’s technical specifications. This seamless digital interface, backed by dedicated U.S.-based engineering support, empowers product development teams to accelerate validation cycles while mitigating supply chain risk.

For OEMs and contract manufacturers demanding precision, transparency, and accelerated time-to-test, Honyo Prototype redefines what’s possible in China-based CNC prototyping. Begin your next project with confidence: validate designs faster, reduce iteration costs, and secure production-ready prototypes within 7–10 days.

---

Technical Capabilities

Honyo Prototype delivers precision CNC prototyping services from China with advanced 3, 4, and 5-axis milling capabilities, high-accuracy turning, and tight tolerance machining for rapid prototypes and low-volume production. Our processes support a wide range of engineering-grade materials including aluminum, steel, ABS, and nylon, ensuring optimal performance across diverse applications in aerospace, medical, automotive, and industrial sectors.

The following table outlines the technical specifications for our China-based CNC prototyping services:

Parameter	Specification
Machining Types	3-Axis, 4-Axis, and 5-Axis CNC Milling; CNC Turning (including mill-turn)
Typical Tolerances	±0.005 mm (±0.0002″) for critical features; standard tolerance ±0.025 mm
Tight Tolerance Capability	Up to ±0.002 mm (±0.0001″) achievable with process validation and inspection
Surface Finish	As-machined: Ra 3.2 μm (125 μin); optional polishing, anodizing, plating
Materials – Metals	Aluminum (6061, 7075, 2024), Stainless Steel (303, 304, 316), Mild Steel, Tool Steel
Materials – Plastics	ABS, Nylon (PA6, PA66), POM (Delrin), PC, PEEK, PMMA
Max Work Envelope (Milling)	5-Axis: 800 x 500 x 400 mm; 3-Axis: 1000 x 600 x 500 mm
Max Work Envelope (Turning)	Diameter up to 300 mm, Length up to 600 mm
Spindle Speed (Milling)	Up to 24,000 RPM (high-speed options available)
Positioning Accuracy	±0.005 mm
Repeatability	±0.003 mm
Inspection Equipment	CMM, Optical Comparator, Micrometers, Calipers, Surface Roughness Tester
Lead Time	As fast as 3–7 days for machined prototypes, depending on complexity
File Formats Accepted	STEP, IGES, DWG, DXF, SolidWorks, PDF with dimensions

All parts are manufactured under ISO 9001-compliant processes, with full first-article inspection and quality reporting available upon request. Honyo Prototype ensures dimensional accuracy, material integrity, and on-time delivery for mission-critical CNC prototypes.

---

From CAD to Part: The Process

Honyo Prototype China CNC Prototyping Process Overview

Honyo Prototype delivers precision CNC prototyping services from our ISO 9001-certified facilities in Dongguan, China. Our streamlined workflow ensures rapid turnaround without compromising quality, specifically designed for B2B engineering teams requiring functional prototypes. Below is a detailed technical breakdown of each phase.

Upload CAD
Clients initiate the process by uploading native or neutral CAD files (STEP, IGES, X_T, or native SOLIDWORKS/Creo formats) via our secure online portal. Our system automatically validates file integrity, checks for unit consistency (mm/inch), and identifies potential geometry errors like non-manifold edges or missing surfaces. All data is encrypted per ISO 27001 standards, with strict NDA enforcement. This phase typically completes within 15 minutes of submission.

AI-Powered Quoting
Immediately after CAD validation, our proprietary AI quoting engine analyzes 15+ technical parameters: material utilization efficiency, feature complexity (e.g., thin walls <0.5mm, deep cavities >10:1 aspect ratio), machine time estimation, and secondary operation requirements. The engine cross-references real-time data from 12,000+ historical projects and current workshop capacity. Clients receive a formal quotation within 2 business hours, including:
Detailed cost breakdown (machining, material, finishing)
Lead time commitment (standard: 5-7 business days)
Recommended material substitutions if requested grade is non-optimal

DFM Analysis and Engineering Review
Unlike automated-only competitors, Honyo integrates AI-driven DFM checks with mandatory human engineering validation. Our CNC specialists perform:
Automated Checks: Wall thickness validation, tool access verification, tolerance stack-up analysis
Manual Engineering Review: Critical feature assessment (e.g., datum alignment, chamfer requirements), manufacturability scoring against ISO 2768-mK standards

DFM Check Type	Parameters Verified	Resolution Method
Geometric Feasibility	Undercuts, draft angles, hole depth-to-diameter ratios	Toolpath simulation in Mastercam
Tolerance Validation	GD&T callouts vs. achievable Cpk (≥1.33)	CMM capability mapping
Material Optimization	Thermal stability, chip evacuation risk	Material science database cross-reference

Clients receive a formal DFM report within 24 hours, highlighting actionable improvements with engineering rationale. Zero-cost revisions are permitted at this stage.

Production Execution

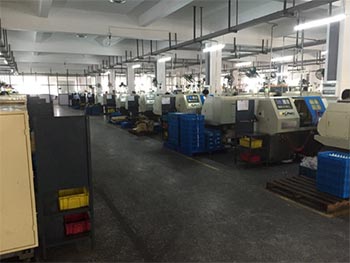

Approved designs move to our Dongguan facility equipped with 85+ CNC centers (DMG MORI, HAAS, MAKINO). Key production protocols:
Material certification: All metals (6061-T6, 7075, SS304) and engineering plastics (Delrin, Ultem 1010) include mill test reports
Process control: In-process inspections at 25%/75% completion using Zeiss CMMs; real-time tool wear monitoring via Renishaw probes
Traceability: Laser-etched part IDs linked to digital work orders showing machine parameters (RPM, feed rate, coolant pressure)

Complex assemblies undergo sub-assembly validation before final finishing (anodizing, powder coating, or precision plating per ASTM standards).

Delivery and Quality Assurance
All prototypes undergo final inspection against AS9102 aerospace standards (even for non-aerospace parts), including:
Full FAI report with dimensional results (±0.025mm typical tolerance)
Surface roughness verification (Ra 0.8µm standard)
Material certificate reconciliation

Parts ship globally via DDP terms with temperature-controlled logistics for sensitive materials. Every shipment includes:
Digital quality package (PDF inspection reports, CMM data)
Physical documentation (certificate of conformance, material certs)
On-time delivery tracking with 98.7% on-time rate (2023 performance data)

Honyo’s process eliminates traditional prototyping bottlenecks through engineered validation points, ensuring first-article approval rates exceed 92% for qualified designs. This integrated approach reduces time-to-test by 30-50% compared to conventional quoting-to-ship workflows.

---

Start Your Project

Looking for precision CNC prototyping in China? Partner with Honyo Prototype for fast, high-quality manufacturing solutions. Our state-of-the-art factory in Shenzhen ensures tight tolerances, rapid turnaround, and consistent quality for your prototyping needs.

Contact Susan Leo today to discuss your project.
Email: [email protected]

Leverage our expertise in CNC machining for functional prototypes and low-volume production—delivered with engineering support and strict quality control.

---
