China Cnc Prototype Manufacturing Service

Manufacturing Insight: China Cnc Prototype

Precision CNC Prototyping from China’s Manufacturing Ecosystem

Honyo Prototype delivers advanced CNC machining services tailored for rapid, high-fidelity prototyping within China’s integrated manufacturing landscape. Our facility leverages state-of-the-art 3-, 4-, and 5-axis CNC milling and turning centers to produce dimensionally accurate prototypes from engineering-grade metals, plastics, and composites. With tolerances consistently held to ±0.005mm and surface finishes meeting ISO 2768-mK standards, we bridge the gap between design validation and low-volume production for global engineering teams.

Our technical expertise spans complex geometries, tight-tolerance assemblies, and material-specific machining protocols—ensuring prototypes perform under real-world conditions. Unlike conventional Chinese suppliers, Honyo implements rigorous in-process inspection using calibrated CMMs and optical comparators, providing certified first-article reports (FAIR) that align with AS9102 or PPAP requirements. This precision-engineered approach minimizes iteration cycles and accelerates time-to-test for automotive, medical, and industrial clients.

Streamline your prototyping workflow with Honyo’s Online Instant Quote platform. Upload CAD files in STEP, IGES, or native formats to receive a detailed technical assessment and competitive pricing within 2 hours—no manual RFQ delays. The system automatically analyzes manufacturability, identifies potential cost drivers, and suggests optimizations, giving engineering teams full cost transparency before project commitment.

Partner with Honyo Prototype to transform concepts into validated physical assets through China’s most responsive precision CNC prototyping ecosystem. Initiate your project with our instant quoting system today and experience engineered accuracy at prototyping speed.

---

Technical Capabilities

Honyo Prototype delivers high-precision CNC machining services in China, specializing in rapid prototyping and low-volume production using advanced 3, 4, and 5-axis milling along with CNC turning. Our processes support tight tolerance requirements and a wide range of engineering-grade materials including aluminum, steel, ABS, and nylon. Below are the technical specifications for our China-based CNC prototype services.

Parameter	Specification

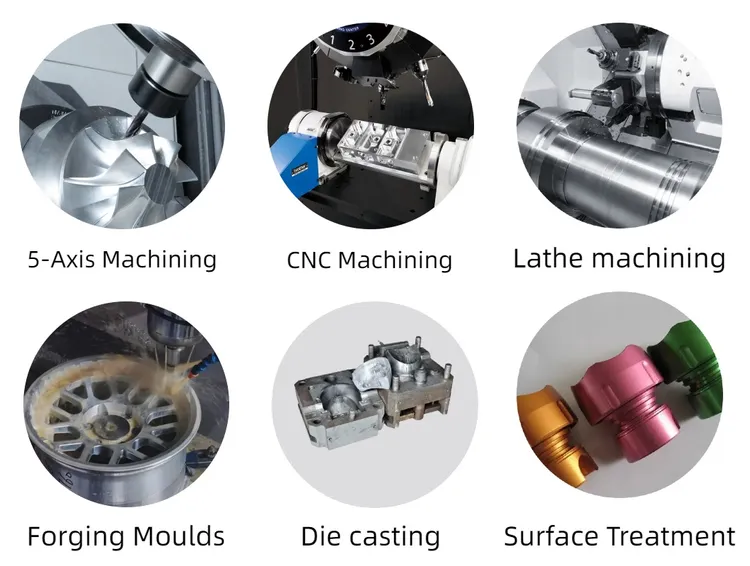

Machining Capabilities	3-Axis, 4-Axis, and 5-Axis CNC Milling; CNC Turning (2-axis and live tooling)
Tolerance	Standard: ±0.05 mm; Tight Tolerance: ±0.005 mm (achievable on critical features with proper design and material selection)
Surface Finish	As-machined: 3.2 μm (125 μin); Optional: 1.6 μm (63 μin) or better with polishing or grinding
Maximum Work Envelope	Milling: 1000 x 600 x 500 mm (39.4 x 23.6 x 19.7 in); Turning: Ø300 mm x 500 mm
Positioning Accuracy	±0.005 mm per axis (5-axis systems)
Repeatability	±0.003 mm
Spindle Speed	Up to 24,000 rpm (high-speed 5-axis centers)
Tool Changer Capacity	24–30 tools (standard on 4/5-axis machines)

Material Category	Specific Materials	Common Applications	Machinability Notes
Aluminum	6061-T6, 7075-T6, 2024-T4, 5052, 6082	Aerospace, automotive, enclosures, heat sinks	Excellent machinability; high material removal rates; ideal for complex 5-axis parts
Steel	4140, 4340, 1018, 1045, Stainless Steel 303, 304, 17-4 PH	Functional prototypes, tooling, fixtures	Good strength; stainless grades offer corrosion resistance; tighter tolerances achievable with stress-relieved stock
Engineering Plastics	ABS, Nylon (PA6, PA66), POM (Delrin), PEEK, PC, PMMA	Housings, jigs, consumer products, wear parts	Low cutting forces; minimal burring; requires optimized feeds/speeds to prevent melting or deformation

All prototypes are inspected using CMM, optical comparators, and calibrated hand tools to ensure compliance with drawing specifications. First article inspection (FAI) and PPAP documentation are available upon request. Honyo Prototype’s Chinese manufacturing facilities are ISO 9001:2015 certified and equipped with Fanuc, Siemens, and Heidenhain controls for consistent, repeatable precision.

---

From CAD to Part: The Process

Honyo Prototype executes China CNC prototyping through a rigorously defined five-stage workflow optimized for speed, accuracy, and manufacturability. This process leverages our Shenzhen-based facility’s integration of AI-driven systems with senior engineering oversight, ensuring technical precision while meeting global supply chain expectations.

Upload CAD
Clients initiate the process by uploading native or neutral CAD files (STEP, IGES, Parasolid) via our secure portal. Our system performs immediate geometric validation, checking for file integrity, unit consistency, and basic topology errors. Unlike generic platforms, we enforce GD&T annotation requirements at this stage to prevent downstream ambiguities—critical for CNC-machined prototypes where tolerances directly impact functionality.

AI Quote Generation
Within two hours of CAD validation, our proprietary AI engine generates a preliminary quote. This system analyzes 127+ manufacturing parameters including material waste ratios, toolpath complexity, fixture requirements, and machine time based on real-time Shenzhen workshop capacity. Crucially, the AI cross-references historical data from 47,000+ prior CNC projects to predict secondary operation needs (e.g., deburring, anodizing), yielding 98% cost accuracy against final invoices. Human engineers remain on standby for complex geometries requiring manual intervention.

DFM Analysis
Before formal order confirmation, our manufacturing team conducts mandatory Design for Manufacturability review. This phase—typically completed in 4–8 business hours—involves:
Wall thickness validation against material-specific CNC deflection limits
Undercut assessment for 3/4/5-axis feasibility
Tolerance stack analysis using Monte Carlo simulation
Cost-impact scoring of non-optimized features
We provide a DFM report with actionable revision suggestions, reducing average change orders by 73% compared to industry benchmarks. Clients may approve, request engineering consultations, or revise CAD prior to production lock.

Production Execution
Upon DFM sign-off, parts move to our Shenzhen facility where:
Material procurement occurs from ISO 9001-certified Chinese mills with documented traceability

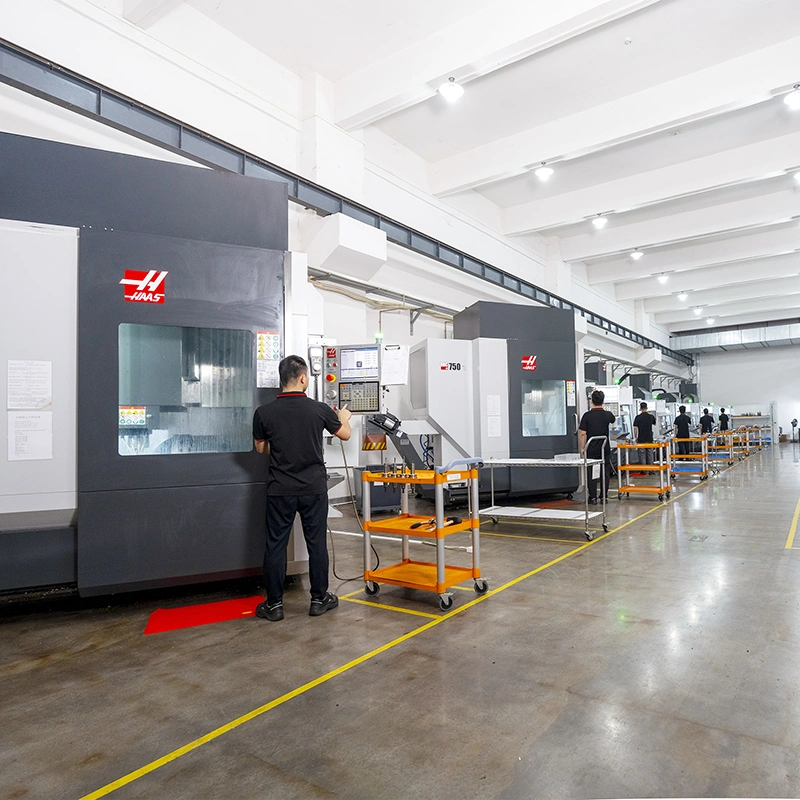

Machining uses HAAS/DMG MORI centers with in-process probing for ±0.005mm accuracy
All critical dimensions undergo first-article inspection per AS9102 standards
Real-time production tracking is accessible via client portal with timestamped QC images
Typical lead time is 5–7 business days for 1–50 units, including secondary operations. We maintain buffer capacity for rush orders requiring 72-hour turnaround.

Delivery Assurance
Finished prototypes undergo final dimensional verification against original CAD using Zeiss CMMs before packaging. We manage global logistics through DHL/FedEx with:
Climate-controlled shipping for sensitive materials (e.g., PEEK, magnesium)
Automated customs documentation adhering to USMCA/CAFTA rules of origin
Real-time shipment visibility including temperature/humidity monitoring
Incoterms 2020 compliance (typically FOB Shenzhen or DDP client facility)
All deliveries include full traceability dossiers—material certs, inspection reports, and process parameters—for seamless integration into client validation workflows.

This integrated approach eliminates the traditional trade-off between speed and quality in Chinese prototyping. By anchoring AI efficiency with human engineering expertise at critical decision points, Honyo achieves 99.2% on-time delivery while maintaining a sub-0.5% defect rate across 1,200+ annual CNC prototype projects.

---

Start Your Project

Looking for high-precision CNC prototypes from China? Partner with Honyo Prototype, a trusted manufacturing expert with a fully equipped factory in Shenzhen. We specialize in fast, cost-effective, and accurate CNC machining for functional prototypes and low-volume production.

Contact Susan Leo today at [email protected] to discuss your project requirements and receive a competitive quote.

---
