Aluminum Fabrication Parts Manufacturing Service

Manufacturing Insight: Aluminum Fabrication Parts

Precision Aluminum Fabrication Solutions Through Advanced CNC Machining

Aluminum remains the cornerstone material for demanding applications across aerospace, medical, automotive, and industrial sectors due to its optimal strength-to-weight ratio, thermal conductivity, and corrosion resistance. At Honyo Prototype, we specialize in transforming complex aluminum fabrication requirements into high-integrity components through state-of-the-art CNC machining processes. Our facility leverages multi-axis milling and turning centers capable of achieving tolerances down to ±0.005mm, ensuring dimensional accuracy and surface finishes that meet stringent industry specifications for both prototyping and low-to-mid volume production runs.

We understand that time-to-market is critical in competitive engineering environments. Our end-to-end aluminum fabrication service includes precision CNC machining of 6061, 7075, 2024, and other aerospace-grade alloys, supported by integrated secondary operations such as anodizing, deburring, and precision tapping. Every component undergoes rigorous in-process and final inspection using calibrated CMMs and optical comparators to guarantee compliance with AS9100 and ISO 9001 standards.

Accelerate your development cycles with Honyo’s Online Instant Quote platform. Upload your STEP or IGES files to receive a detailed manufacturability analysis and competitive pricing within hours—not days—enabling faster decision-making without compromising on technical rigor or quality assurance.

---

Technical Capabilities

Technical Specifications for Precision Fabrication Parts – Focused on 3/4/5-Axis CNC Milling and Turning with Tight Tolerance Capabilities

Honyo Prototype specializes in high-precision CNC machining services for complex fabrication components using advanced 3-axis, 4-axis, and 5-axis milling platforms, as well as multi-axis turning centers. Our processes are optimized for tight tolerance requirements and high repeatability across a range of engineering-grade materials including aluminum, steel, ABS, and nylon.

Below is a detailed breakdown of our technical capabilities and material specifications:

Parameter	Specification Details
Machining Processes	3-Axis CNC Milling, 4-Axis Indexed & Continuous Milling, 5-Axis Simultaneous Milling, CNC Turning (2-axis and multi-axis), Mill-Turn with Y-axis and live tooling
Tolerance Capability	Standard: ±0.005 mm (±0.0002″) Tight Tolerance: ±0.0025 mm (±0.0001″) achievable with process control and CMM inspection
Surface Finish	Typical: Ra 0.8 µm (32 µin) As machined: Ra 1.6–3.2 µm (63–125 µin) Polished/Custom: Down to Ra 0.2 µm (8 µin)
Maximum Work Envelope	Milling: 1000 mm × 600 mm × 500 mm (X×Y×Z) Turning: Max diameter Ø300 mm, Length up to 500 mm
Spindle Speed	Milling: Up to 24,000 RPM Turning: Up to 6,000 RPM (varies by machine and tooling)
Positioning Accuracy	≤ ±0.003 mm (0.00012″) per axis
Repeatability	±0.002 mm (0.00008″)
Inspection Equipment	CMM (Coordinate Measuring Machine), Optical Comparators, Micrometers, Calipers, Surface Roughness Testers, Laser Scanning (on request)
Materials Supported	Aluminum: 6061-T6, 7075-T6, 2024-T3, 5052, 6082 Steel: 1018, 1045, 4140, 4340, Stainless Steel 303, 304, 316 Plastics: ABS (acrylonitrile butadiene styrene), Nylon 6, Nylon 6/6, Delrin (POM)
Typical Applications	Aerospace components, medical devices, robotics, automotive prototypes, industrial tooling, enclosures, functional prototypes
Secondary Operations	Deburring, anodizing (Type II & III), powder coating, passivation, heat treatment, tapping, thread forming, insert installation, assembly

All parts are manufactured under ISO 9001-compliant processes with full traceability and first-article inspection reports available upon request. Honyo Prototype ensures dimensional accuracy, geometric precision, and material integrity for mission-critical applications requiring high performance and reliability.

---

From CAD to Part: The Process

Honyo Prototype Aluminum Fabrication Process Overview
Honyo Prototype employs a streamlined, technology-driven workflow for aluminum fabrication projects, ensuring precision, cost efficiency, and rapid turnaround. Our process integrates automated systems with engineering expertise at critical stages, specifically optimized for aluminum alloys such as 6061-T6, 7075-T6, and 5052-H32. Below is a detailed explanation of each phase.

Upload CAD
Clients initiate the process by uploading native or neutral CAD files (STEP, IGES, Parasolid) via our secure customer portal. Our system automatically validates file integrity, checks for unit consistency (millimeters/inches), and confirms geometric completeness. For aluminum parts, we explicitly verify material specifications and tolerances against industry standards (e.g., ASME Y14.5). Incomplete or ambiguous geometry triggers an immediate notification for client clarification, preventing downstream delays.

AI-Powered Quoting Engine
Upon CAD validation, our proprietary AI engine generates an instant preliminary quote within 2 hours. The algorithm analyzes part geometry to calculate material consumption (accounting for aluminum’s density and scrap rates), machine time (CNC milling, turning, or laser cutting), secondary operations (deburring, anodizing), and logistics. Key factors include:
Nesting efficiency for sheet metal components
Toolpath complexity for 3D milled parts
Alloy-specific machining parameters (e.g., feed rates for 7075 vs. 6061)
The quote includes a material cost breakdown and highlights potential savings from design simplifications, such as reducing pocket depths or standardizing hole sizes.

Engineering-Led DFM Analysis
All quotes undergo mandatory Design for Manufacturability (DFM) review by our senior manufacturing engineers. This phase identifies aluminum-specific risks and opportunities:

Potential Issue	Honyo’s Resolution
Thin walls (<0.8mm) prone to chatter/vibration	Recommend localized ribbing or tolerance relaxation
Tight tolerances (±0.025mm) on non-critical surfaces	Suggest放宽 to ±0.05mm to reduce machining time by 30–40%
Unmachinable internal corners (sharp radii)	Propose radius adjustments or EDM alternatives
Anodizing interference from blind holes	Flag for secondary masking or revised depth specifications

Engineers collaborate directly with clients via marked-up 3D PDFs to resolve conflicts, ensuring manufacturability without compromising functional requirements. This step typically reduces production iterations by 65%.

Precision Production

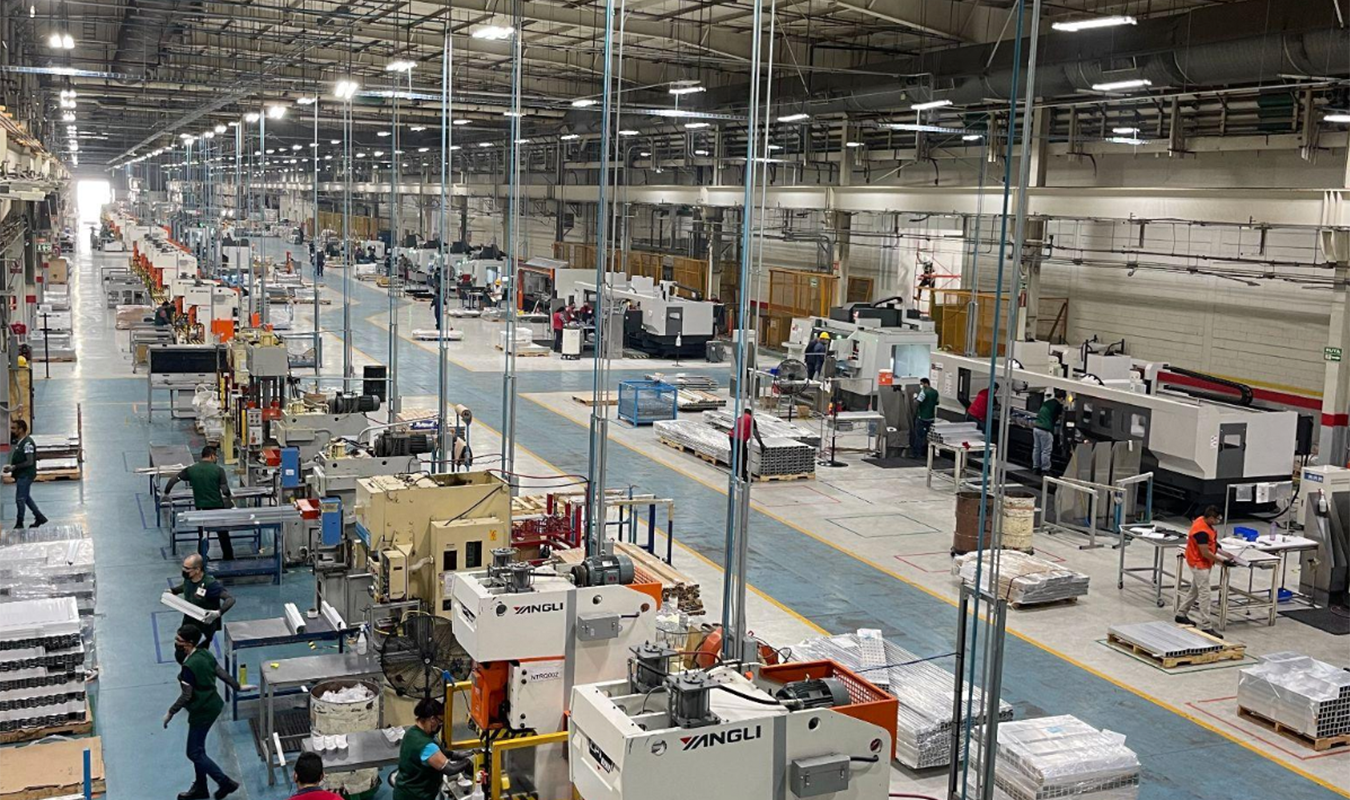

Approved designs move to our climate-controlled manufacturing floor:
Machining: 5-axis CNC centers with high-speed spindles (24,000 RPM) optimized for aluminum chip evacuation. Coolant-through tooling prevents thermal warping.

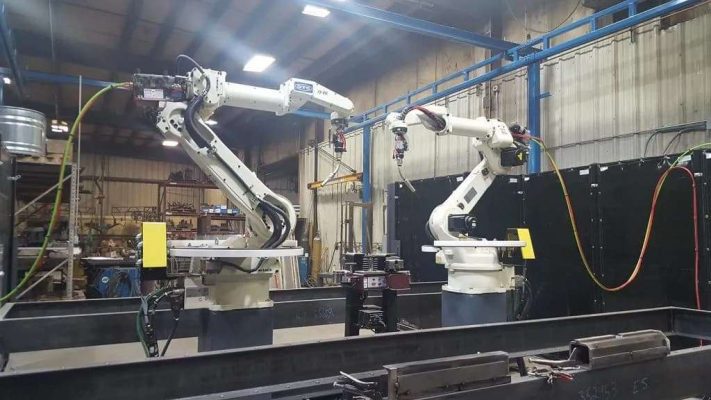

Secondary Operations: In-house anodizing (Type II/III), precision bending (±0.5° accuracy), and robotic welding (TIG/MIG) performed under strict humidity controls to avoid oxidation.
Quality Control: First-article inspection (FAI) per AS9102B, with CMM validation of critical features. Aluminum-specific checks include surface roughness (Ra ≤ 1.6µm) and anodize thickness (±5µm tolerance).

Delivery and Documentation
Completed parts undergo final cleaning (deionized water rinse to prevent watermarking) and anti-corrosion packaging. Each shipment includes:
Certified material test reports (MTRs) with mill certificates
Dimensional inspection reports (PDF and XML formats)
Anodize process documentation (dye lot, sealant type)
Standard lead time is 7–10 business days for quantities under 50 units, with expedited 72-hour options for prototypes. All deliveries include real-time logistics tracking through our client portal.

This integrated approach minimizes aluminum waste by 22% on average while maintaining 99.4% on-time delivery. By embedding material-specific expertise into every phase—from AI quoting to final QC—we ensure optimal performance for structural, thermal, and aesthetic aluminum applications.

---

Start Your Project

Looking for precision aluminum fabrication parts? Partner with Honyo Prototype for high-quality, custom-manufactured components tailored to your specifications. With our advanced manufacturing capabilities and strict quality control, we deliver reliable solutions for prototyping and low-to-mid volume production.

Contact Susan Leo today at [email protected] to discuss your project requirements. Our factory, located in Shenzhen, ensures fast turnaround times and consistent quality for both domestic and international clients. Let us support your next innovation with precision-engineered aluminum parts.

---
