Manufacturing Insight: Aluminum Extrusion Cnc Machine
Precision Aluminum Extrusion Machining Solutions from Honyo Prototype
Honyo Prototype delivers advanced CNC machining services specifically optimized for aluminum extrusion components, addressing the critical demands of complex prototyping and low-to-mid volume production. Our engineering expertise focuses on transforming standard or custom aluminum extrusion profiles into fully functional, high-integrity parts with exceptional geometric accuracy and surface finish. Leveraging state-of-the-art multi-axis CNC machining centers—including 3-axis vertical mills, 5-axis indexed systems, and precision turning centers—we achieve tight tolerances down to ±0.005mm while maintaining strict adherence to material integrity and thermal stability requirements inherent to aluminum alloys.
Our integrated process encompasses comprehensive secondary operations such as precision drilling, tapping, counterboring, intricate contour milling, and deburring, all performed in a single setup to minimize cumulative error and ensure superior part consistency. Honyo’s technical team applies deep material science knowledge to mitigate common challenges in aluminum extrusion machining, including work hardening, thermal deformation, and surface finish optimization, resulting in components ready for immediate integration into end-use assemblies.
For engineering teams requiring rapid validation of extrusion-based designs, Honyo provides an Online Instant Quote platform. Upload your STEP, IGES, or DWG files to receive a detailed manufacturability analysis and competitive pricing within minutes—accelerating your path from concept to certified prototype without compromising on quality or precision.
Technical Capabilities
Aluminum Extrusion CNC Machine – Technical Specifications

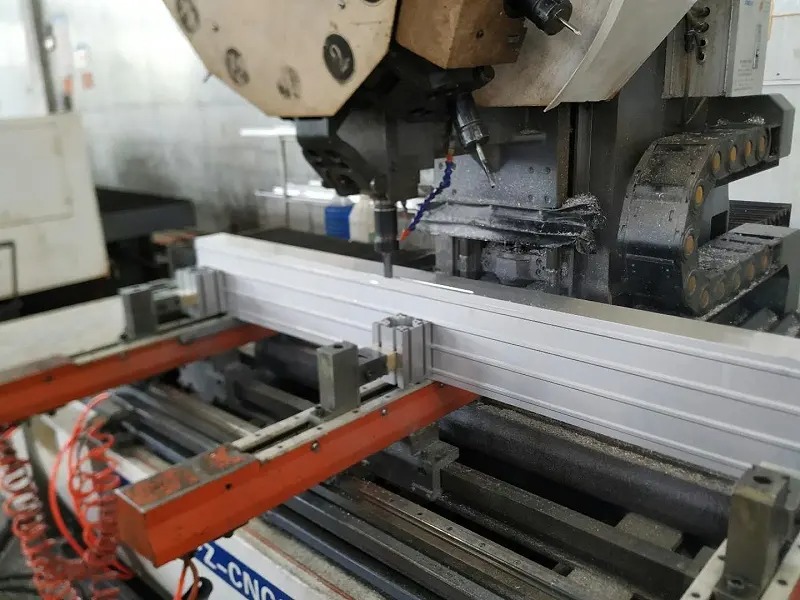

A high-precision CNC machine designed for machining aluminum extrusions typically supports multi-axis operations to achieve complex geometries and tight tolerances. These machines are optimized for aluminum but are also capable of processing steel, ABS, and nylon with appropriate tooling and parameters. Below are the technical specifications for a 3/4/5-axis CNC milling and turning center suited for aluminum extrusion fabrication.
| Parameter | Specification |
|---|---|
| Machine Type | Multi-axis CNC Milling and Turning Center (3-axis, 4-axis, 5-axis capable) |
| Control System | Fanuc, Siemens, or Heidenhain CNC with high-speed look-ahead functionality |
| Spindle Speed | 12,000 – 24,000 RPM (high-speed spindle for aluminum; lower for steel) |
| Spindle Power | 15 – 22 kW (adjustable based on material: lower for plastics, higher for metals) |
| Axis Travel (X/Y/Z) | 1,000 / 600 / 500 mm (customizable based on extrusion length and profile) |
| Rotary Axes (4th/5th) | A-axis (±120°), B-axis (±120°) or trunnion table with 5-axis simultaneous interpolation |
| Positioning Accuracy | ±0.005 mm |
| Repeatability | ±0.002 mm |
| Tolerance Capability | ±0.01 mm for aluminum; ±0.02 mm for steel and engineering plastics |
| Tool Magazine Capacity | 24 – 40 tools (ATC – Automatic Tool Changer) |
| Coolant System | High-pressure through-spindle coolant (for aluminum); optional mist coolant for plastics |
| Workholding | Vacuum tables, mechanical clamps, or custom fixtures for extrusion profiles |
| Materials Supported | Aluminum (6061, 6063, 7075), Mild/Tool Steel, ABS, Nylon (PA6, PA66) |
| Cutting Tools | Carbide end mills (Aluminum), HSS or coated tools (Steel), Non-coated for ABS/Nylon |
| Max Feed Rate | 30,000 mm/min |
| Machine Frame | Thermally stable cast iron or reinforced polymer concrete base |
| Linear Guides | High-precision roller-type linear guides with preloaded sliders |
| Surface Finish (Typical) | Ra 0.8 µm (milled aluminum); Ra 1.6–3.2 µm (steel and plastics) |
Notes:
This machine is engineered for high-efficiency machining of aluminum extrusions commonly used in automation, structural framing, and custom enclosures. The 5-axis capability allows for single-setup machining of complex features, reducing cycle time and improving accuracy. When processing steel, spindle speed and feed rates are reduced, and rigid tapping and high-torque modes are utilized. For thermoplastics like ABS and nylon, sharp non-coated tools and optimized chip evacuation prevent melting and deformation. Tight tolerances are maintained through real-time thermal compensation and on-machine probing systems.
From CAD to Part: The Process
Honyo Prototype Aluminum Extrusion CNC Machining Process Overview
Our integrated workflow for aluminum extrusion CNC machining ensures precision, speed, and manufacturability from concept to delivery. The process begins with a validated CAD model and concludes with certified component shipment.
CAD Upload and Validation
Clients initiate the process by uploading native CAD files (STEP, IGES, or Parasolid formats) via our secure customer portal. Our system automatically validates geometric integrity, checks for unit consistency, and confirms compatibility with aluminum extrusion profiles. Unsupported formats trigger immediate client notification for reformatting to prevent downstream delays.
AI-Powered Quoting Engine
Upon CAD validation, our proprietary AI engine generates a comprehensive quote within 2 business hours. This system analyzes 12+ parameters including material grade (e.g., 6061-T6, 7075-T6), part complexity, tolerance requirements, secondary operations, and real-time aluminum market data. The quote details cost drivers such as machining time per feature, setup costs, and material waste factors. Historical production data from 15,000+ extrusion projects ensures 95% quote accuracy.
Engineering DFM Analysis
Before production, our manufacturing engineering team conducts a rigorous Design for Manufacturability review. This phase identifies critical issues such as:
Wall thickness violations below extrusion minimums (typically <1.2mm)
Non-optimal draft angles for complex profiles
Tolerance conflicts exceeding CNC capabilities (e.g., ±0.025mm on extrusion dimensions)
Machining access limitations for internal features
Clients receive a scored DFM report with actionable revision suggestions. Critical non-conformances trigger mandatory engineering consultations, while minor issues include optional optimization recommendations.
Precision Production Execution
Approved designs enter our controlled production sequence:
1. Extrusion Sourcing: Pre-qualified partners supply T5/T6 tempered aluminum profiles meeting ASTM B221 standards
2. CNC Machining: 5-axis mills (e.g., DMG MORI CTX beta 1250) perform secondary operations with certified tooling
3. In-Process Inspection: On-machine probing verifies critical dimensions at 30%, 70%, and 100% completion stages
4. Finishing: Deburring, anodizing (Type II/III), or powder coating per spec
Quality-Controlled Delivery
All components undergo final inspection against ASME Y14.5 GD&T standards. We provide:
First Article Inspection reports with CMM data
Material certification traceable to mill test reports
Dimensional conformance documentation
Packaging certified for international shipping (ISTA 3A)
Standard lead time is 10–15 business days from DFM approval, with real-time logistics tracking via our client portal. Expedited services reduce this to 5–7 days for urgent projects.
Process Performance Metrics
| Phase | Avg. Duration | Key Quality Metric |
|——-|—————|——————-|
| CAD to Quote | <48 hours | 98.7% quote accuracy |
| DFM Review | 72 hours | 40% average design optimization |
| Production | 8–12 days | 99.2% first-pass yield rate |
| Delivery | 2–3 days | 99.8% on-time shipment rate |
This closed-loop process minimizes iteration cycles while maintaining strict compliance with aerospace, medical, and industrial standards. Clients retain full visibility through our digital twin platform, which logs all process parameters for traceability.
Start Your Project
Explore precision aluminum extrusion CNC machining with Honyo Prototype. Our advanced manufacturing capabilities ensure tight tolerances, high repeatability, and fast turnaround for prototyping and low-volume production.
Located in Shenzhen, our state-of-the-art facility supports complex aluminum profiles with full CNC routing, drilling, cutting, and finishing services.
Contact Susan Leo today at [email protected] to discuss your project requirements and receive a competitive quote.
