Manufacturing Insight: 5 Axis Machining Services

Precision 5-Axis Machining Services for Complex Manufacturing Challenges

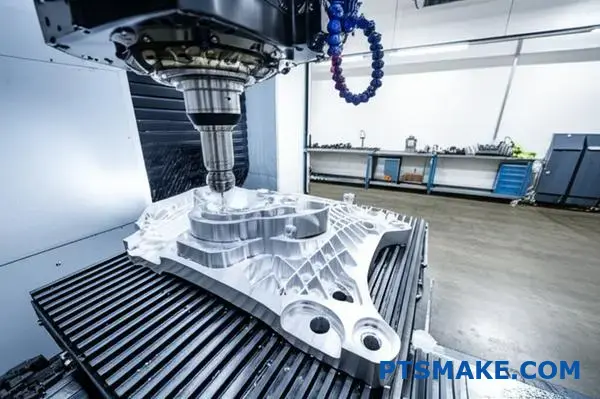

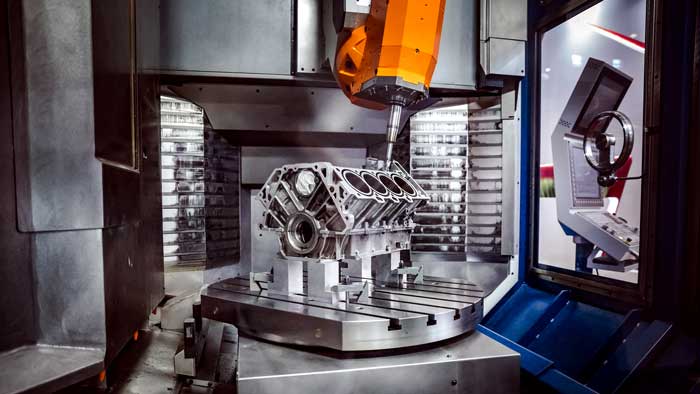

Honyo Prototype delivers advanced 5-axis CNC machining services engineered to tackle the most intricate geometries and stringent tolerances demanded by aerospace, medical, and defense industries. Our state-of-the-art 5-axis simultaneous machining centers eliminate the need for multiple setups, ensuring exceptional part accuracy, superior surface finishes, and significant reductions in lead times for complex components. By leveraging continuous five-axis interpolation, we achieve undercuts, organic contours, and tight-tolerance features in a single operation—minimizing human error and maximizing repeatability for mission-critical applications.

Our technical capabilities extend across high-performance materials including titanium alloys, Inconel, aluminum, and engineered plastics, with standard tolerances maintained to ±0.0002 inches. This precision is backed by rigorous in-process inspection protocols and ISO 9001-certified quality management systems, ensuring every component meets exacting engineering specifications.

Online Instant Quote Accelerates Your Prototyping and Production Workflow
Streamline your procurement process with Honyo Prototype’s Online Instant Quote system. Upload CAD files in STEP, IGES, or native formats to receive a detailed, transparent cost analysis and lead time estimate within minutes—no manual submission delays. This digital solution empowers engineering teams to iterate designs rapidly, validate manufacturability early, and accelerate time-to-market without compromising on quality or technical support.

Capability	Specification
Axis Configuration	5-Axis Simultaneous Milling
Typical Tolerances	±0.0002 inches (5µm)
Material Range	Aluminum, Titanium, Stainless Steel, Inconel, Plastics
Max Work Envelope	22″ x 16″ x 16″ (559 x 406 x 406 mm)

Partner with Honyo Prototype to transform complex design concepts into high-integrity machined components with unmatched efficiency. Access real-time pricing and engineering feedback through our digital platform to optimize your next precision manufacturing project.

---

Technical Capabilities

Honyo Prototype offers advanced multi-axis CNC machining services tailored for high-precision prototyping and low-to-medium volume production. Our capabilities span 3-axis, 4-axis, and 5-axis milling, as well as CNC turning, enabling complex geometries with tight tolerances. We specialize in machining a wide range of engineering-grade materials including aluminum, steel, ABS, and nylon.

Below is a summary of our technical specifications:

Feature	3-Axis Milling	4-Axis Milling	5-Axis Milling	CNC Turning
Axis Configuration	X, Y, Z linear axes	X, Y, Z + rotational A-axis	X, Y, Z + rotational A and B/C axes	X, Z linear + C-axis (optional)
Positioning Accuracy	±0.005 mm	±0.005 mm	±0.005 mm	±0.005 mm
Repeated Accuracy	±0.002 mm	±0.002 mm	±0.002 mm	±0.002 mm
Tight Tolerance Capability	±0.01 mm (typical), down to ±0.005 mm on critical features	±0.01 mm, ±0.005 mm on tight features	±0.01 mm, ±0.005 mm achievable on complex contours	±0.01 mm, ±0.005 mm on diameter and length
Max Work Envelope (mm)	1200 x 600 x 500	1000 x 600 x 400	800 x 600 x 400	Ø300 x 500 length
Spindle Speed	Up to 24,000 RPM	Up to 20,000 RPM	Up to 20,000 RPM	Up to 6,000 RPM
Feed Rate	Up to 15,000 mm/min	Up to 12,000 mm/min	Up to 12,000 mm/min	Up to 5,000 mm/min
Surface Finish	Ra 0.8 µm (standard), down to Ra 0.4 µm with polishing	Ra 0.8 µm, Ra 0.4 µm achievable	Ra 0.8 µm, Ra 0.2–0.4 µm with fine finishing	Ra 0.8 µm, Ra 0.4 µm with fine cuts
Common Materials	Aluminum (6061, 7075), Steel (1018, 4140), ABS, Nylon	Same as 3-axis, with improved access for complex setups	Same, optimized for intricate 3D contours	Aluminum, Steel, ABS, Nylon (bar stock compatible)
Typical Applications	Flat surfaces, prismatic parts	Index features, angled holes, mid-complexity parts	Aerospace components, medical devices, molds, organic shapes	Shafts, bushings, threaded parts, cylindrical components

All machining operations are supported by in-process inspection and final CMM verification for critical dimensions. We maintain strict process control to ensure repeatability and precision across all material types. Our 5-axis capabilities eliminate the need for multiple setups, reducing lead time and improving geometric accuracy on complex parts.

---

From CAD to Part: The Process

Honyo Prototype delivers precision 5-axis machining services through a tightly integrated digital workflow designed for speed, accuracy, and manufacturability. Our process eliminates traditional friction points between design and production, ensuring optimal outcomes for complex geometries in aerospace, medical, and industrial applications. Below is a detailed explanation of each phase.

Upload CAD
Clients initiate the process by uploading native or neutral CAD files (STEP, IGES, Parasolid, or native SOLIDWORKS) via our secure customer portal. Our system performs immediate validation checks for file integrity, unit consistency, and geometric completeness. Critical datums, tolerances, and material specifications embedded within the model are automatically parsed. This stage requires no manual intervention, reducing initial lead time to under 15 minutes for file processing and setting the foundation for accurate downstream analysis.

AI Quote Generation
Leveraging our proprietary AI engine trained on 12,000+ 5-axis production runs, the system analyzes the validated CAD geometry to generate a comprehensive technical quotation within 2 business hours. The AI evaluates toolpath complexity, fixture requirements, material utilization, and surface finish demands against real-time shop floor capacity and material costs. Quotes include detailed cost breakdowns by machining operation, explicit assumptions regarding stock material dimensions, and identification of potential high-risk features requiring designer input. This data-driven approach eliminates estimation guesswork and provides transparent cost visibility.

DFM Analysis and Collaboration
Our engineering team conducts a formal Design for Manufacturability review within 24 hours of quote acceptance, focusing specifically on 5-axis optimization opportunities. This phase involves direct collaboration with the client’s design team to address geometric constraints such as deep cavity reach, thin wall stability, and rotational axis interference. We provide actionable recommendations through marked-up 3D models and simulation snapshots, highlighting opportunities to reduce cycle time by 15-30% through minor feature adjustments. All DFM feedback is documented in a formal report with traceable revision tracking, ensuring alignment before metal cutting begins.

Production Execution
Approved designs move to our HAAS UMC-750 and DMG MORI CTX beta 1250 5-axis platforms, equipped with Renishaw probing and high-pressure coolant systems. Each job undergoes rigorous setup validation using master gauge blocks and laser calibration. Machining occurs under controlled environmental conditions with in-process inspections at critical waypoints. For materials like titanium 6Al-4V or Inconel 718, we implement adaptive toolpath strategies to manage heat generation and tool wear. All operations adhere to ISO 9001:2015 and AS9100D protocols, with full traceability from raw material certs to final inspection reports.

Delivery and Certification
Final parts ship with comprehensive documentation including first-article inspection reports (FAIR) against ASME Y14.5 GD&T standards, CMM coordinate data, and material test certificates. We utilize calibrated coordinate measuring machines for full 3D validation of complex contours, with results mapped directly to the original CAD model for deviation analysis. Standard delivery includes 48-hour shipping with real-time logistics tracking, while expedited options support 5-day turnaround for qualified geometries. Every shipment carries a unique traceability ID linking to digital process records accessible via client portal.

This closed-loop process ensures that 5-axis projects transition seamlessly from digital design to certified physical components, minimizing rework and accelerating time-to-market for technically demanding applications. We treat each engagement as a technical partnership, applying deep machining expertise to transform ambitious designs into production-ready realities.

---

Start Your Project

Discover precision and efficiency with our advanced 5-axis machining services at Honyo Prototype. Engineered for complex geometries and tight tolerances, our CNC solutions deliver high-quality prototypes and production parts with faster turnaround times.

Our state-of-the-art facility in Shenzhen is equipped with cutting-edge 5-axis technology, ensuring superior surface finishes and dimensional accuracy for aerospace, medical, automotive, and industrial applications.

Partner with us for reliable, scalable, and technically superior machining services—backed by strict quality control and engineering expertise.

Contact Susan Leo today to discuss your project requirements:
Email: [email protected]

Let’s build precision together.

---
