Manufacturing Insight: 5 Axis Machining Centers
Precision Manufacturing Through Advanced 5-Axis Machining at Honyo Prototype
Honyo Prototype delivers exceptional complexity and accuracy for demanding industrial components through our state-of-the-art 5-axis CNC machining centers. These advanced systems enable simultaneous multi-directional tool movement, eliminating the need for multiple fixtures and secondary operations. This capability is critical for producing intricate geometries found in aerospace turbine blades, medical implants, and complex automotive assemblies with superior surface finishes and tight tolerances unattainable with conventional 3-axis methods. Reduced setup times and minimized human intervention directly translate to accelerated lead times and enhanced part consistency for your most challenging projects.
Our dedicated fleet of Haas and DMG MORI 5-axis machining centers operates under stringent quality protocols, achieving sub-micron repeatability across materials including titanium, Inconel, high-performance polymers, and hardened steels. Each machine is maintained to OEM specifications and monitored via integrated sensors for thermal compensation and real-time process validation, ensuring dimensional integrity from prototype to low-volume production. Honyo engineers leverage proprietary fixturing strategies and adaptive toolpathing to maximize material removal rates while preserving critical feature accuracy, particularly for thin-walled or highly contoured components.
Accelerate your development cycle with Honyo Prototype’s Online Instant Quote system. Upload your STEP or IGES file directly to our platform for immediate, transparent pricing and manufacturability feedback—no manual RFQ delays. This seamless integration between your design data and our machining capabilities provides actionable insights within minutes, allowing rapid iteration and confident project planning. Experience how our 5-axis expertise combined with digital procurement efficiency solves your toughest precision manufacturing challenges. Request your instant quote today to advance from concept to certified hardware faster.
Technical Capabilities

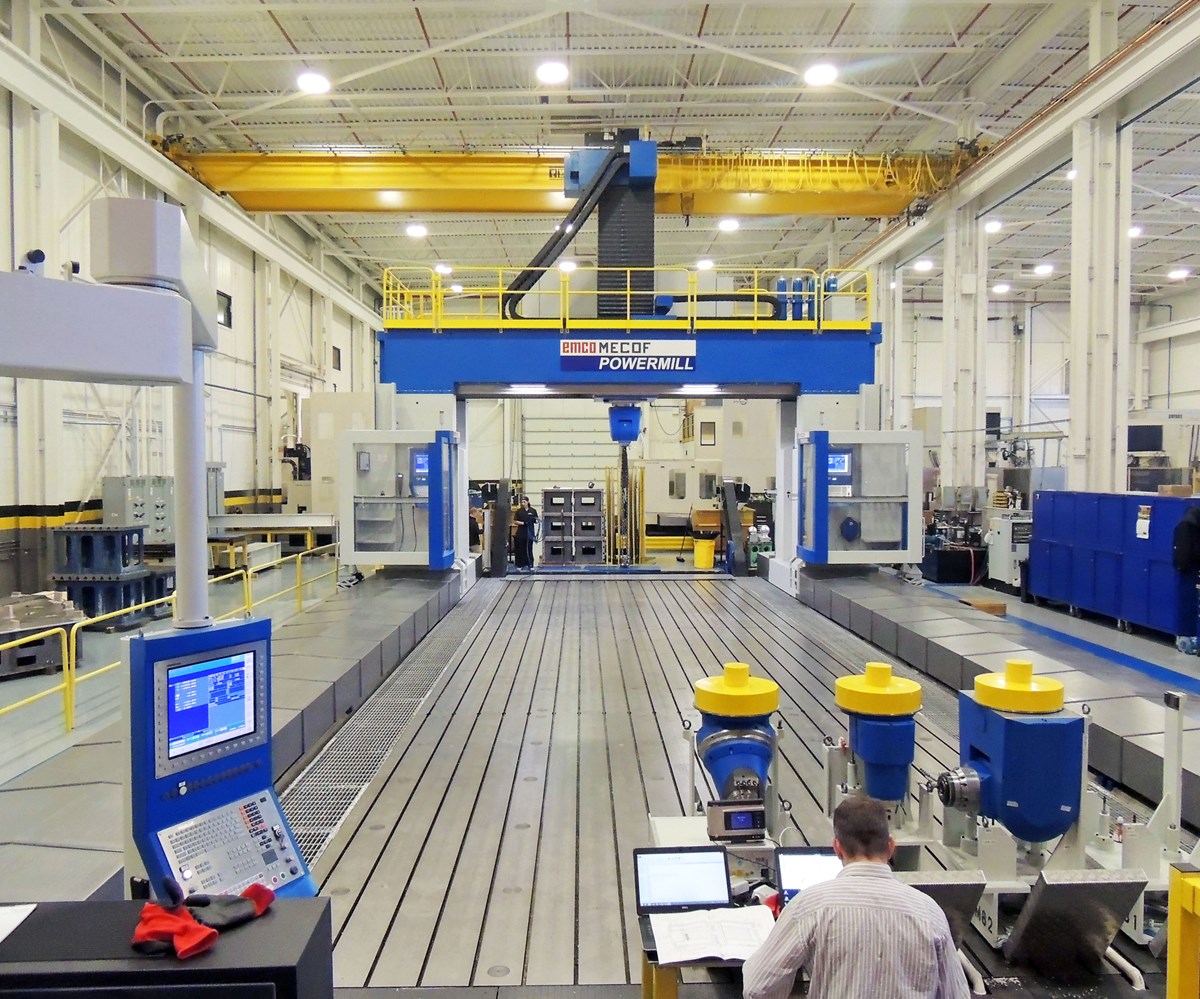

5-Axis Machining Centers – Technical Specifications Overview

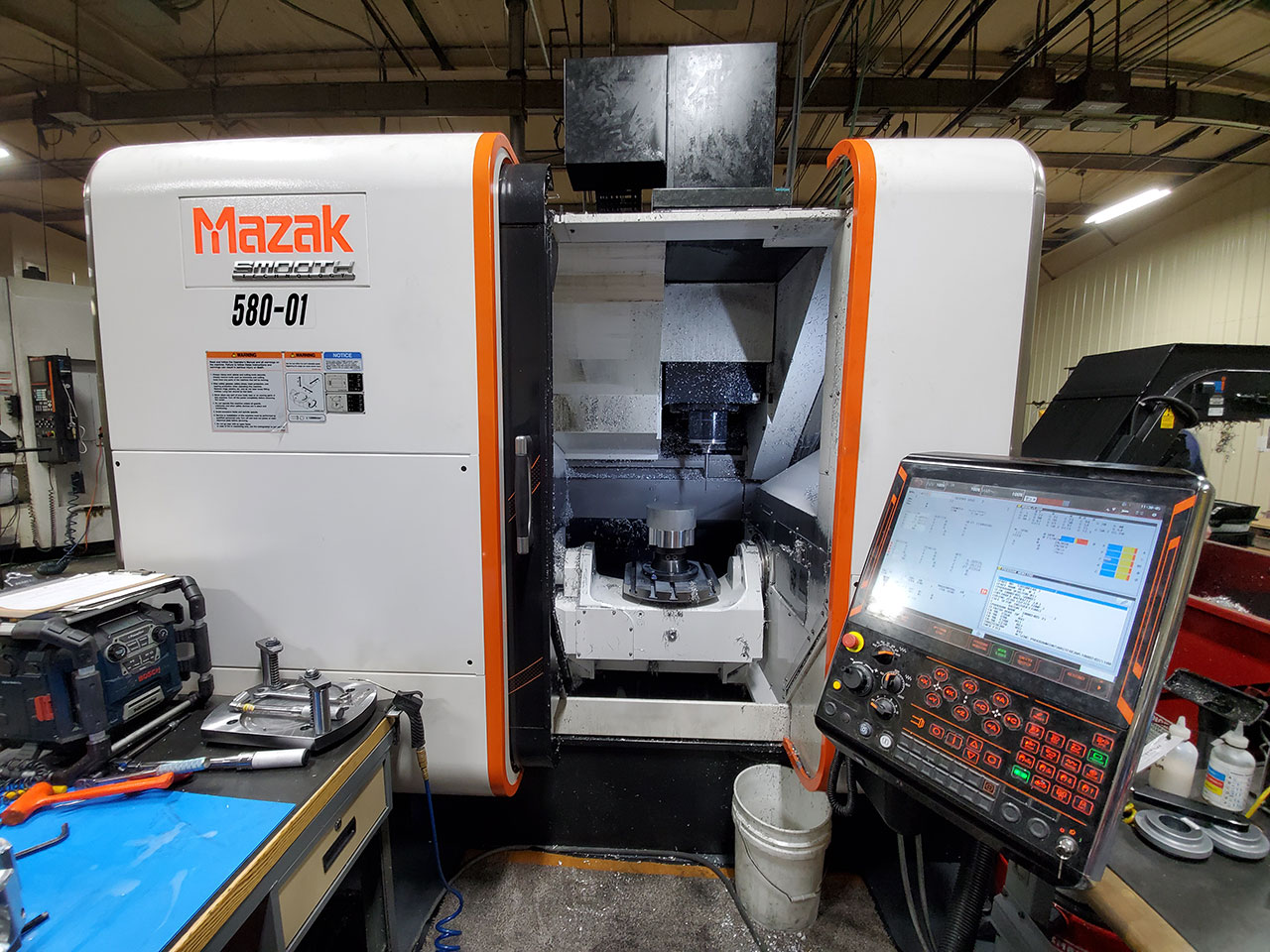

5-axis machining centers are advanced CNC systems capable of moving a cutting tool or workpiece along five axes simultaneously (X, Y, Z, and two rotational axes—typically A and B). These machines support complex geometry machining with high precision, making them ideal for aerospace, medical, automotive, and prototyping applications. Below is a detailed technical specification table covering capabilities in 3-axis, 4-axis, and 5-axis milling, turning integration, tight tolerance performance, and material compatibility.
| Feature | Specification |
|---|---|
| Axes Configuration | 5-axis simultaneous: X, Y, Z linear axes with A (rotation about X) and B (rotation about Y); Some models offer C-axis (rotation about Z) for turning integration |
| Control System | High-speed CNC with multi-channel control (e.g., Siemens 840D, Fanuc 31i, Heidenhain TNC7) enabling real-time interpolation of all 5 axes |
| Spindle Speed Range | 10,000 – 30,000 RPM (standard); High-speed variants up to 40,000 RPM for aluminum and plastics |
| Spindle Power | 20 – 50 kW depending on machine size and application |
| Positioning Accuracy (ISO 230-2) | ±0.005 mm over full travel |
| Repeatability (ISO 230-2) | ±0.002 mm |
| Tolerance Capability | Achieves tight tolerances down to ±0.005 mm (±0.0002″) consistently; micro-machining options available for ±0.001 mm |
| Surface Finish (Ra) | As low as 0.4 µm (16 µin), depending on material and tooling |
| Work Envelope (Typical) | Up to 1,200 mm (X) × 1,000 mm (Y) × 1,000 mm (Z); compact models available for smaller parts |
| Tool Changer Capacity | 24 – 120 tools (automatic tool changer, ATC) with tool length up to 300 mm |
| Rapid Traverse Rates | 30 – 60 m/min per linear axis |
| Rotary Axis Speed | A-axis: ±360° continuous; B-axis: ±120° typical; max rotary speed 200 RPM |
| Integrated Turning Capability | Optional mill-turn configuration with C-axis synchronization, enabling live tooling and part turning in same setup |
| Coolant System | High-pressure through-spindle coolant (up to 70 bar) for deep cavity and hard material machining |
| Materials Compatible | Aluminum (6061, 7075), Steel (4140, 1018, Stainless 303/316), Plastics (ABS, Nylon 6/66, PEEK, Delrin), Titanium, Composites |
| Aluminum Machining Performance | High-speed capability with fine finishes; optimized chip evacuation and low vibration |
| Steel Machining Performance | High-torque spindles for deep cuts; suitable for hardened steels up to 60 HRC with proper tooling |
| Plastic Machining (ABS, Nylon) | Low cutting forces; specialized toolpaths and speeds to prevent melting or deformation; dust extraction recommended |
| Fixturing Options | Rotary tables, tombstones, vacuum chucks, custom fixtures; supports multi-part batch processing |
| Probing Systems | On-machine touch probes for in-process measurement, tool setting, and workpiece alignment |
| Software Integration | Compatible with CAM systems (Mastercam, Fusion 360, PowerMill) for 5-axis toolpath generation and collision detection |
These machining centers deliver superior precision and flexibility for complex components, reducing setup times and enhancing dimensional consistency—especially critical when producing tight-tolerance parts in materials ranging from lightweight aluminum to high-strength steel and engineering plastics.
From CAD to Part: The Process
Honyo Prototype 5-Axis Machining Center Workflow
Honyo Prototype executes precision 5-axis machining through a rigorously defined digital workflow designed for speed, accuracy, and manufacturability. The process begins with secure CAD file ingestion via our encrypted client portal, where native formats (STEP, IGES, Parasolid) undergo automated validation for geometric integrity and unit consistency. Invalid submissions trigger immediate client notification with specific error diagnostics, minimizing project initiation delays.
Subsequently, our proprietary AI quoting engine processes the validated CAD geometry against live databases of material costs, machine availability, and labor rates. The algorithm dynamically evaluates feature complexity—including undercuts, thin walls, and compound curvature—to generate a technically grounded cost and timeline estimate within 90 minutes. This phase incorporates real-time feed/speed simulations for exotic alloys (e.g., Inconel 718, Ti-6Al-4V) and non-ferrous materials, ensuring quote accuracy exceeds ±5%.
The Design for Manufacturability (DFM) stage follows, where senior manufacturing engineers conduct collaborative reviews. Unlike automated-only DFM tools, Honyo mandates human validation to address nuanced challenges inherent in 5-axis operations. Critical checks include:
| DFM Check Category | Specific Criteria |
|---|---|
| Geometric Feasibility | Minimum wall thickness (>0.5mm), cavity aspect ratios (<10:1), avoidance of trapped features requiring secondary operations |
| Tool Access & Collision | Verification of 5-axis reachability without rotary table interference, minimum tool shank clearance (3mm), and optimal workpiece orientation |
| Surface Finish Requirements | Feasibility of specified Ra values (e.g., Ra 0.8µm achievable via fine-step finishing passes; Ra 0.4µm requiring specialized tooling) |
| Material-Specific Constraints | Heat-sensitive material allowances (e.g., magnesium requiring sub-25°C coolant), vibration-prone geometries needing adaptive toolpaths |

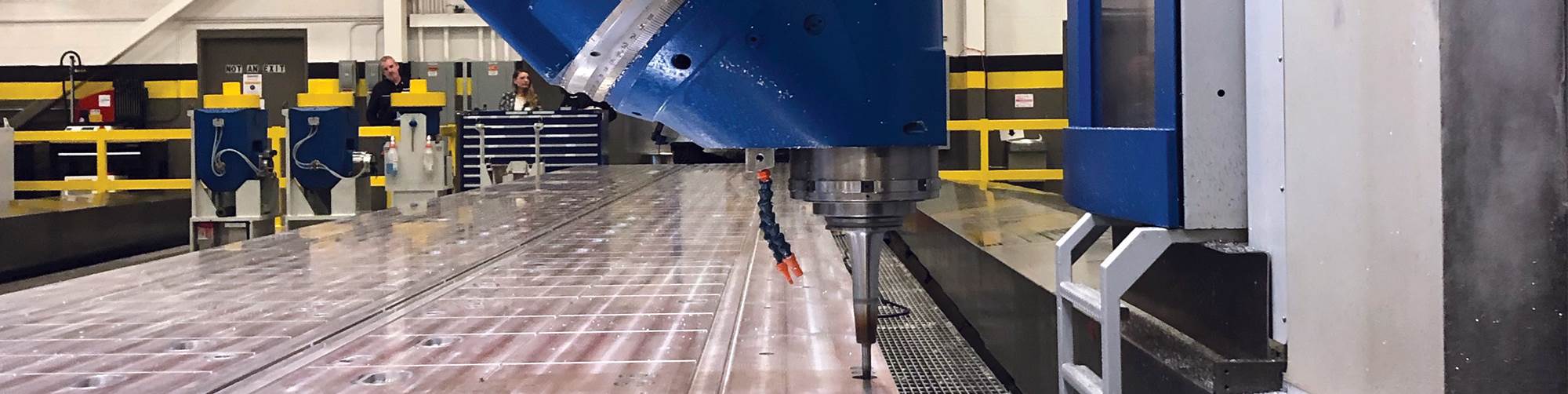

Upon DFM sign-off, production commences on Makino D200Z or DMG MORI CTX beta 1250 systems. Each workpiece undergoes:
Vacuum-chuck or custom fixture mounting validated via FEA simulation
In-process probing for workpiece alignment (accuracy ±0.005mm)

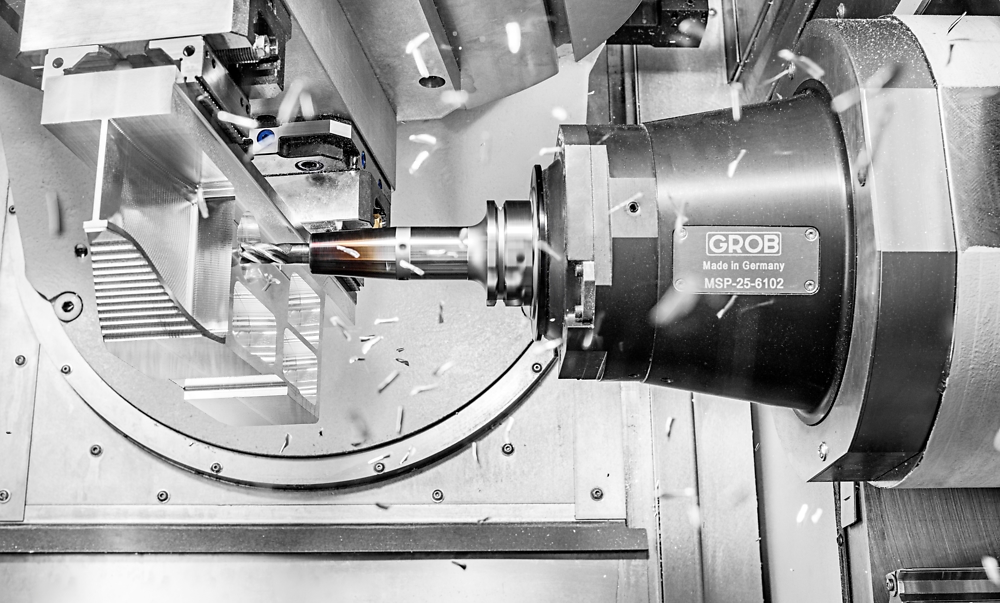

Adaptive high-speed toolpaths (Mastercam Multiaxis) with real-time chip-load monitoring
On-machine inspection at critical stages using Renishaw RFP probes
Final delivery includes certified dimensional reports (per ASME Y14.5), material test certificates, and a digital twin of the as-machined part via our client dashboard. Typical lead time from CAD approval to shipment is 7–12 business days for first-article prototypes, with expedited 72-hour options for qualified geometries. All components undergo cross-departmental quality audits before release, ensuring conformance to ISO 9001:2015 standards.
For complex aerospace or medical components requiring tighter tolerances (±0.001mm), we initiate pre-production metrology planning during DFM to integrate CMM validation protocols seamlessly. Contact Honyo Engineering to discuss your specific 5-axis machining requirements.
Start Your Project
Discover precision and efficiency with our advanced 5-axis machining centers, engineered for complex geometries and tight tolerances. Ideal for aerospace, medical, and automotive prototyping and production.
Located in Shenzhen, our state-of-the-art facility leverages cutting-edge technology to deliver high-speed, high-accuracy machining solutions. Whether you’re producing intricate components or scaling for volume, our 5-axis capabilities ensure superior surface finishes and reduced cycle times.
Contact Susan Leo today to discuss your project requirements or request a quote.
Email: [email protected]
Let Honyo Prototype be your trusted partner in precision manufacturing.
