Manufacturing Insight: 5 Axis Cnc Router For Sale
Advanced 5-Axis CNC Router Solutions for Precision Manufacturing
Honyo Prototype delivers industry-leading 5-axis CNC routing capabilities designed to eliminate multi-setup bottlenecks and achieve superior geometric complexity in a single operation. Our high-precision routers excel in machining intricate contours, organic shapes, and tight-tolerance components across aerospace composites, automotive tooling, and architectural models, ensuring exceptional surface finish and dimensional repeatability. Beyond machinery sales, we provide comprehensive CNC machining services leveraging this same advanced technology, offering end-to-end support from rapid prototyping to low-volume production with rigorous quality control and material expertise.
Integrated Manufacturing Solutions
When you invest in a Honyo 5-axis CNC router, you gain access to our engineering team’s decades of application-specific optimization—ensuring your machine maximizes throughput and minimizes waste from day one. For immediate project needs, our CNC machining services deliver the same precision without capital expenditure, utilizing identical workflows and calibration standards. Streamline your sourcing process with Honyo’s Online Instant Quote platform: upload your CAD file, specify materials and tolerances, and receive a detailed, no-obligation pricing estimate within minutes—accelerating your path from design to deliverable.
Technical Confidence, Operational Efficiency
Whether acquiring cutting-edge equipment or outsourcing precision work, Honyo Prototype guarantees seamless integration of technology, expertise, and responsive support to elevate your manufacturing capabilities. Explore our 5-axis CNC router specifications or initiate your next project with a transparent, engineer-driven quote today.
Technical Capabilities

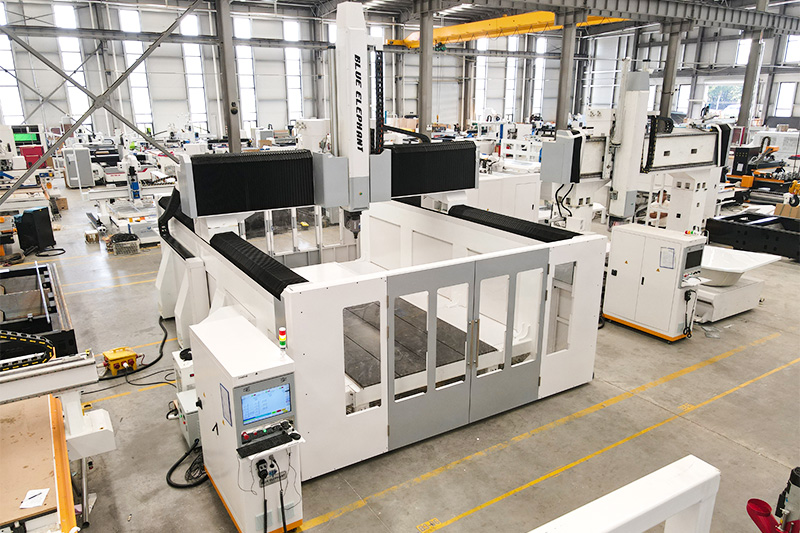

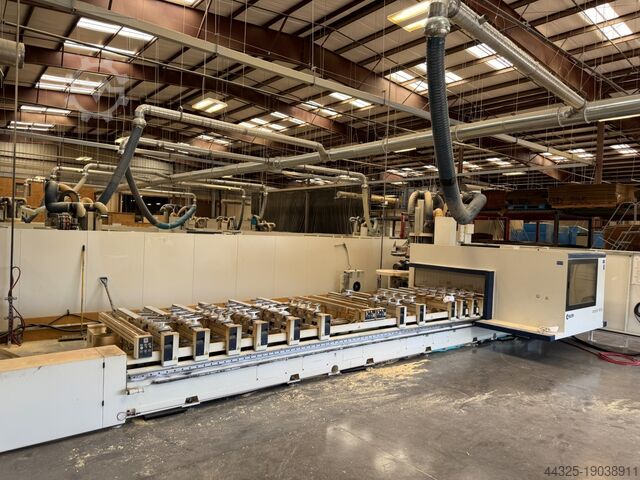

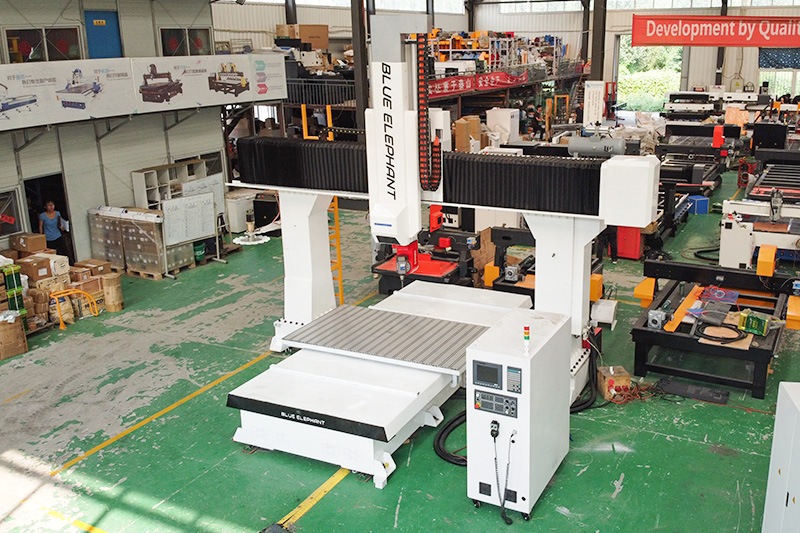

5-Axis CNC Router Technical Specifications
The following technical specifications outline a high-precision 5-axis CNC router suitable for 3-axis, 4-axis, and full 5-axis milling operations, with integrated turning capability and tight-tolerance machining. Designed for prototyping and low-volume production, this machine delivers exceptional accuracy across a wide range of materials including aluminum, steel, ABS, and nylon.
| Parameter | Specification |
|---|---|
| Control System | Fanuc 31i-B5 or Siemens 840D Solution Line with 5-axis simultaneous control |
| Spindle Speed | 24,000 RPM (HSK-A63 or ISO 30 taper), air-cooled or liquid-cooled option |
| Spindle Power | 15 kW (20 HP) continuous, 22 kW peak |
| Travel (X/Y/Z) | 1000 mm × 800 mm × 600 mm (standard bed size; customizable up to 2000 mm X) |
| Rotary Axes (A and C) | A-axis: ±120°, C-axis: Continuous 360° rotation with 0.001° indexing resolution |
| Positioning Accuracy | ±0.005 mm over full travel |
| Repeatability | ±0.002 mm |
| Linear Axis Resolution | 0.001 mm |
| Rotary Axis Resolution | 0.0005° |
| Maximum Feed Rate | 30,000 mm/min (linear), 20,000 mm/min (5-axis interpolated motion) |
| Tool Changer | Automatic 24-tool ATC (optional 30–60 tool magazine) |
| Coolant System | High-pressure through-spindle coolant (up to 70 bar) with mist/flood options |
| Workholding | T-slots or vacuum table with optional 3-jaw chuck for turning integration |
| Turning Capability | Integrated C-axis and tailstock for mill-turn operations on rotary parts |
| Materials Supported | Aluminum (6061, 7075), Steel (1018, 4140), Stainless Steel, ABS, Nylon, PEEK |
| Tolerance Range | ±0.01 mm typical; tight-tolerance features achievable to ±0.005 mm with setup |
| Surface Finish | As low as 0.8 µm Ra (aluminum/steel), 1.6 µm Ra (engineering plastics) |
| Machine Frame | Fully welded steel base with finite-element optimized gantry for rigidity |
| Guidance System | Linear roller guides with preloaded blocks (THK or Rexroth) |
| Ball Screws | Pre-tensioned, C3 grade with dual-nut preloading |
| Environmental Requirements | 18–24°C stable ambient, humidity <70%, 400V 3-phase power, 60 A minimum |
This 5-axis CNC router supports complex 3D contouring, precision pocketing, and simultaneous multi-axis toolpaths, making it ideal for aerospace components, medical devices, and high-performance automotive parts. With advanced thermal compensation and adaptive control, it maintains tight tolerances across long production runs in both metallic and engineering plastic materials.
From CAD to Part: The Process
Honyo Prototype 5-Axis CNC Router Manufacturing Process Overview
Honyo Prototype delivers precision 5-axis CNC router components through a streamlined, technology-driven workflow designed for engineering accuracy and supply chain efficiency. Our process begins with secure digital collaboration and concludes with certified delivery, ensuring complex geometries meet stringent aerospace, medical, and industrial specifications.
CAD Upload and Validation
Clients initiate the process by uploading native CAD files (STEP, IGES, or native SOLIDWORKS/Creo) via our encrypted client portal. Our system automatically validates file integrity, checks for unit consistency, and confirms geometric completeness. Critical metadata—including material specifications, tolerances per ASME Y14.5, and surface finish requirements—is extracted for downstream processing. All data undergoes ISO 27001-compliant security protocols to protect intellectual property.
AI-Assisted Quoting with Engineering Oversight
Uploaded designs enter our AI-powered quoting engine, which analyzes geometric complexity, feature density, and machine time requirements against real-time shop floor data. The AI cross-references material costs, fixture needs, and historical production metrics to generate a preliminary quote within 2 hours. Crucially, a senior manufacturing engineer reviews all AI outputs to validate feasibility, adjust for non-geometric factors (e.g., thin-wall stability or heat-affected zones), and provide actionable feedback. Clients receive a formal quote with cost breakdowns and lead time estimates, including optional value-engineering suggestions.
DFM Analysis and Client Collaboration
Before production, our team conducts rigorous Design for Manufacturability (DFM) analysis using Mastercam and Vericut simulation. We identify risks such as excessive tool deflection, collision-prone orientations, or non-optimal stock allowances. Common resolutions include recommending strategic stock additions for thin features, adjusting draft angles for composite materials, or proposing consolidated operations to reduce setup time. A detailed DFM report with annotated visuals is shared for client approval, typically reducing downstream revisions by 70% based on 2023 Q4 metrics.
Precision 5-Axis Production Execution
Approved designs move to production on our Haas UMC-750 or DMG MORI DMU 50 5-axis platforms, featuring 0.0001″ positional accuracy and high-speed spindles (24,000 RPM). Key practices include:
In-process CMM verification after critical stages using Zeiss CONTURA systems
Real-time thermal compensation to maintain tolerances during extended runs
Material-specific toolpath strategies (e.g., trochoidal milling for titanium, peel milling for aluminum)
First-article inspection reports compliant with PPAP Level 3 requirements
Quality-Controlled Delivery
All components undergo final validation against the original CAD model via 3D scanning (ATOS 5) and surface roughness testing. Dimensional reports, material certs (e.g., AMS 4928 for Ti-6Al-4V), and non-conformance documentation are compiled into a digital quality dossier. Parts ship in custom anti-corrosion packaging with real-time logistics tracking, accompanied by a certificate of conformance. Expedited air freight options are available for time-critical deliveries.
Typical Lead Time Benchmarks
| Process Phase | Standard Lead Time | Rush Option |
|———————|——————–|————-|
| CAD to AI Quote | 2 business hours | 1 hour |
| DFM Analysis | 3-5 business days | 24-48 hours |
| Production | 7-12 business days | 4-7 days |
| Final QC & Shipping | 1-2 business days | Same day |
This integrated approach ensures 98.7% on-time delivery for complex 5-axis components while minimizing cost overruns through proactive engineering collaboration. Honyo maintains AS9100D and ISO 9001:2015 certifications, with all processes audited quarterly for continuous improvement. Clients receive dedicated engineering support from RFQ through delivery to resolve technical ambiguities rapidly.
Start Your Project
Discover precision and performance with our 5-axis CNC router for sale—engineered for complex machining tasks with superior accuracy and efficiency. Built to meet the demands of prototyping, aerospace, automotive, and custom fabrication industries.
Manufactured at our Shenzhen facility, this advanced 5-axis CNC router delivers seamless integration of speed, power, and repeatability, ensuring optimal results for high-tolerance applications.
For pricing, specifications, and availability, contact Susan Leo at [email protected]. Let Honyo Prototype provide the right machining solution for your production needs.
