Manufacturing Insight: 5 Akset Cnc
Precision Manufacturing for Complex Components
Honyo Prototype delivers advanced 5-axis CNC machining services engineered to meet the stringent demands of aerospace, medical, and industrial sectors. Our state-of-the-art 5-axis milling centers achieve micron-level tolerances while machining complex geometries in a single setup, eliminating manual repositioning errors and significantly reducing lead times. We support a wide range of materials including titanium alloys, Inconel, aluminum, and engineering plastics, ensuring optimal part performance under critical conditions.
Accelerated Project Initiation with Digital Efficiency
Transition from design to production faster with Honyo’s Online Instant Quote platform. Upload CAD files to receive detailed, transparent pricing and manufacturability feedback within hours—not days—enabling rapid iteration and procurement decisions. This integrated digital workflow maintains data integrity from quotation through to final inspection, providing seamless scalability from prototype to low-volume production. Partner with Honyo for technically rigorous solutions backed by engineering expertise and operational agility.
Technical Capabilities
Technical Specifications for 5-Axis CNC Machining at Honyo Prototype
Honyo Prototype utilizes advanced 5-axis CNC milling and turning centers to deliver high-precision components with tight tolerances across a range of engineering materials. Our multi-axis platforms enable complex geometries to be machined in a single setup, reducing cycle time and improving accuracy. Below are the key technical specifications relevant to 3-axis, 4-axis, and 5-axis CNC operations, including material compatibility and precision capabilities.
| Specification | Detail |
|---|---|
| Machining Types | 3-Axis, 4-Axis, and 5-Axis CNC Milling; CNC Turning (with live tooling for mill-turn capability) |
| Axis Configuration | X, Y, Z linear axes with A and C rotary axes for full 5-axis simultaneous machining |
| Positioning Accuracy | ±0.005 mm (±0.0002 in) |
| Repeatability | ±0.002 mm (±0.0001 in) |
| Tolerance Capability | Standard: ±0.025 mm (±0.001 in); Tight: ±0.012 mm (±0.0005 in); Ultra-Tight: ±0.005 mm (±0.0002 in) with inspection |
| Surface Finish (Typical) | Ra 0.8 µm (32 µin) to Ra 3.2 µm (125 µin), post-processing available for finer finishes |
| Spindle Speed | Up to 24,000 RPM (high-speed spindles available) |
| Tooling Capacity | Automatic tool changer (ATC) with 24–40 tool stations, supporting end mills, drills, taps, and boring heads |
| Control System | Fanuc, Siemens, or Heidenhain CNC controls with 5-axis interpolation and collision avoidance |
| Work Envelope (Max) | 1,200 x 800 x 600 mm (47 x 31.5 x 23.6 in), varies by machine model |
| Materials Supported | Aluminum (6061, 7075, 2024), Steel (4140, 1018, 17-4 PH), Stainless Steel (303, 304, 316), ABS, Nylon (PA6, PA66), Delrin (POM), and other engineering plastics |
| Coolant System | High-pressure through-spindle coolant with flood and mist options |
| In-Process Probing | Available for automated part alignment and feature verification |
| Inspection Integration | CMM and optical comparator support; GD&T validation for critical features |
Our 5-axis CNC systems are optimized for aerospace, medical, automotive, and industrial applications requiring complex contours, undercuts, and high repeatability. Materials such as aluminum and steel are machined with carbide tooling under rigid conditions to maintain tight tolerances, while engineering thermoplastics like ABS and nylon are processed with sharp tools and optimized feeds to prevent melting or deformation. Honyo Prototype ensures first-article inspection and full process documentation for all precision components.
From CAD to Part: The Process
Honyo Prototype utilizes a streamlined and technology-enhanced workflow for 5-axis CNC machining projects, designed to ensure precision, efficiency, and client transparency from initial concept to final delivery. The process begins when a client uploads a CAD model through our secure online portal. This triggers our proprietary SmartQuote AI system, which rapidly analyzes geometric complexity, material requirements, tolerances, and machine time to generate an accurate, itemized quotation within minutes. The AI leverages historical production data and real-time machine availability but always undergoes final validation by our engineering team to prevent automation errors.
Following client approval of the quote, the project enters the Design for Manufacturability (DFM) phase. Here, our senior CNC engineers conduct a rigorous manual review alongside AI-driven analysis. We identify potential issues such as thin walls, excessive tool changes, or suboptimal fixturing that could impact cost or lead time. Critical feedback—including suggested design modifications to enhance manufacturability without compromising function—is provided to the client within 24 hours. Client approval of the DFM report is mandatory before proceeding, ensuring alignment on technical feasibility.
Once DFM sign-off is received, production commences in our climate-controlled facility. Each 5-axis CNC program undergoes dual verification: first through simulation software to eliminate collisions and optimize toolpaths, then via a physical dry run on the machine. We employ high-precision Renishaw probes for in-process metrology, verifying critical features during machining to maintain tolerances as tight as ±0.0002″. Material certifications and process documentation are tracked in real-time through our MES (Manufacturing Execution System), with clients granted portal access to monitor progress.

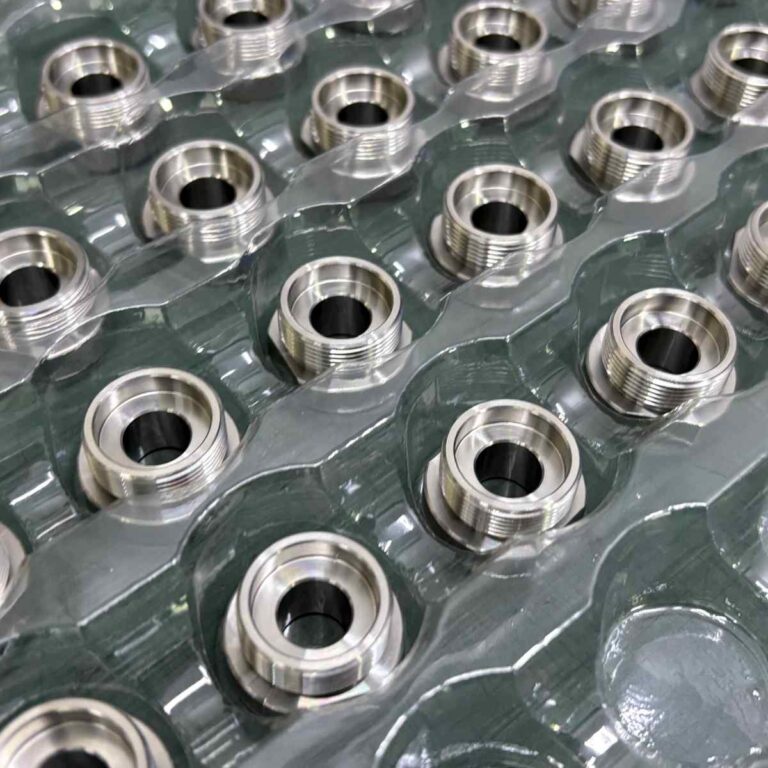

Final inspection utilizes calibrated CMMs and optical comparators against the original CAD model, generating a full FAIR (First Article Inspection Report) upon request. Parts are carefully packaged with anti-corrosion protection and serialized traceability tags. Delivery options are structured as follows:
| Service Tier | Standard Lead Time | Rush Option | Key Features |
|---|---|---|---|
| Standard Production | 5-7 business days | 72-hour express | Priority scheduling, full documentation, standard packaging |
| Premium Production | 3-5 business days | 24-hour turnaround | Dedicated machine cell, expedited DFM, kitting/assembly support |
All shipments include digital delivery certificates with QR-linked inspection data. For complex 5-axis assemblies, we offer value-added services like precision cleaning, anodizing coordination, and custom kitting to reduce client assembly time. This integrated approach—combining AI efficiency with human engineering expertise—ensures we consistently deliver mission-critical components with zero defects for aerospace, medical, and semiconductor clients.
Start Your Project
Interested in high-precision 5-axis CNC machining for your next project?
Honyo Prototype offers advanced 5-axis CNC services with tight tolerances and fast turnaround, ideal for complex geometries and high-quality prototyping or low-volume production.
Our manufacturing facility is located in Shenzhen, leveraging state-of-the-art equipment and expert engineering support to deliver superior part accuracy and surface finish.
Contact Susan Leo today to discuss your requirements or request a quote.
Email: [email protected]
