3-Axis Cnc Machine Manufacturing Service

Manufacturing Insight: 3-Axis Cnc Machine

Precision 3-Axis CNC Machining: Core Capabilities at Honyo Prototype

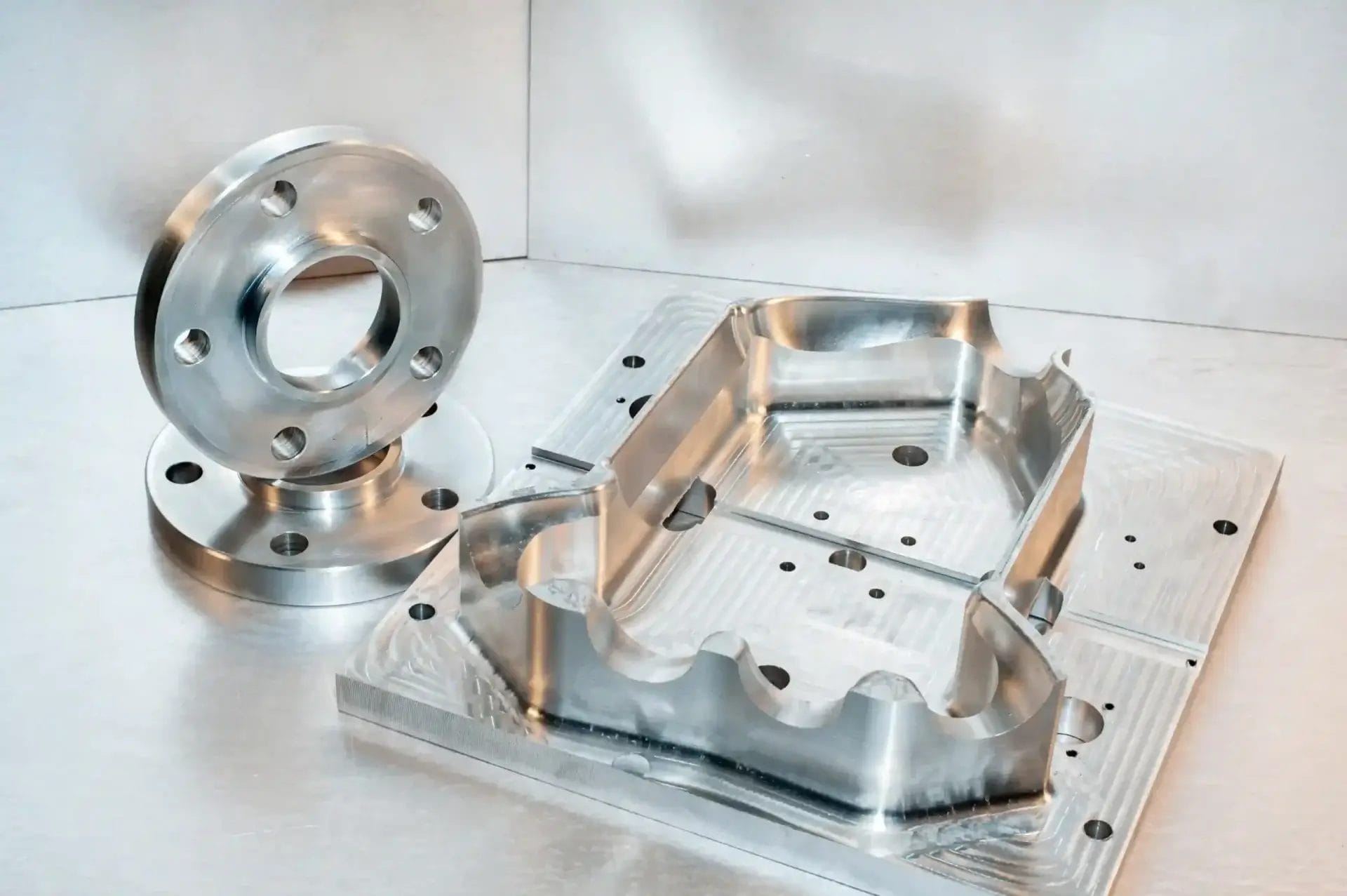

When precision, repeatability, and rapid turnaround define project success in prototyping and low-volume production, Honyo Prototype delivers engineered excellence through our industrial-grade 3-axis CNC machining services. Our fleet of advanced CNC milling centers operates under stringent quality controls, consistently achieving tight tolerances down to ±0.005 mm across critical materials including aerospace-grade aluminum, stainless steel, titanium, and engineering plastics. These machines form the backbone of our subtractive manufacturing process, enabling complex geometries, critical feature accuracy, and superior surface finishes for functional prototypes, jigs, fixtures, and end-use components.

Honyo Prototype CNC Machining Capabilities
We integrate 3-axis milling into a comprehensive manufacturing ecosystem supported by in-house engineering review, real-time process monitoring, and ISO-compliant inspection protocols. This ensures dimensional integrity from CAD model to final part, reducing iteration cycles and accelerating time-to-market for demanding sectors like medical devices, robotics, and automotive R&D. Crucially, our commitment to operational transparency extends to cost and lead time visibility through the industry-leading Online Instant Quote platform. Simply upload your 3D CAD file (STEP, IGES, Parasolid) to receive a detailed, no-obligation price and estimated turnaround within minutes—not days—empowering faster project validation and procurement decisions.

Partner with Honyo Prototype to transform design concepts into high-precision physical assets with the speed and reliability your engineering timelines require. Our 3-axis CNC machining services, backed by instant quoting and expert manufacturability analysis, eliminate traditional procurement bottlenecks while maintaining uncompromising quality standards.

---

Technical Capabilities

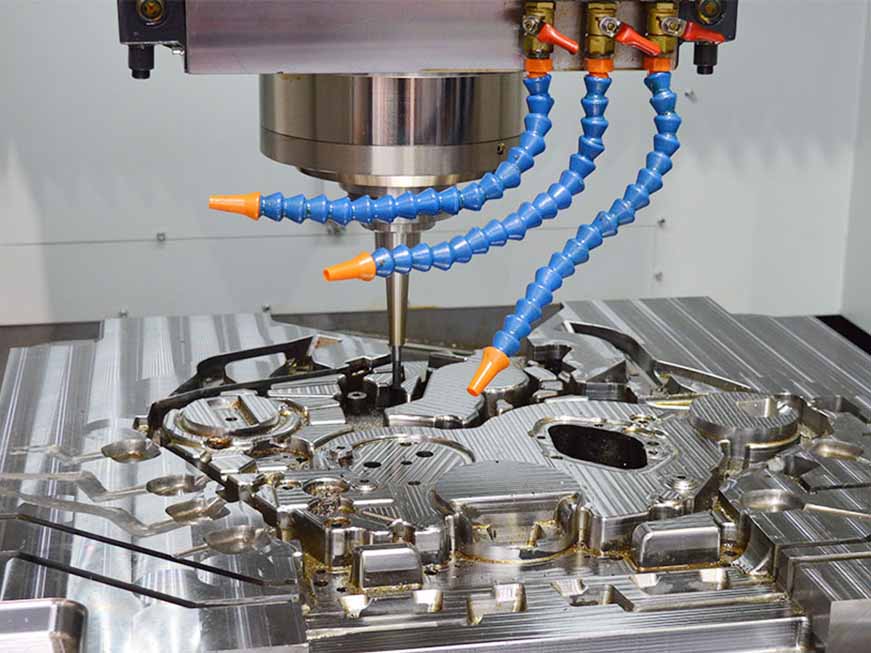

3-axis CNC machines are foundational in precision manufacturing, especially for applications requiring tight tolerances and reliable material removal. While 3-axis milling focuses on movement along the X, Y, and Z linear axes, Honyo Prototype leverages advanced 3-, 4-, and 5-axis milling capabilities to enhance complexity, accuracy, and efficiency. These systems are complemented by CNC turning for rotational geometries, supporting a broad material range including aluminum, steel, ABS, and nylon. Below are the technical specifications and capabilities relevant to these processes.

Feature	3-Axis Milling	4-Axis Milling	5-Axis Milling	CNC Turning	Tight Tolerance Capability
Axis Movement	X, Y, Z linear axes	X, Y, Z + A-axis (rotary around X)	X, Y, Z + A and B (or C) rotational axes	X and Z linear axes with spindle rotation	Achievable on all platforms with proper fixturing and tooling
Typical Spindle Speed	8,000 – 15,000 RPM	8,000 – 15,000 RPM	10,000 – 24,000 RPM	3,000 – 8,000 RPM (depending on workpiece size)	Up to ±0.0002″ (5 µm) with process control
Positioning Accuracy	±0.001″ (25 µm)	±0.001″ (25 µm)	±0.0005″ (12 µm)	±0.0005″ (12 µm)	Supported via calibrated tooling, thermal compensation
Repeatability	±0.0005″ (12 µm)	±0.0005″ (12 µm)	±0.0002″ (5 µm)	±0.0002″ (5 µm)	Achieved under stable environmental conditions
Materials Supported	Aluminum, Steel, ABS, Nylon, PEEK, Delrin	Aluminum, Steel, ABS, Nylon	Aluminum, Steel, hardened steels, engineering plastics	Aluminum, Steel, brass, ABS (limited)	All materials listed, with material-specific optimization
Max Work Envelope (Typical)	20″ x 16″ x 12″ (500 x 400 x 300 mm)	20″ x 16″ x 12″ + rotary range	18″ x 14″ x 10″ with full 5-axis tilt	Diameter up to 16″, length up to 30″	Envelope varies by machine; fixturing critical for tolerance
Surface Finish (Typical)	32–125 µin Ra	32–64 µin Ra	16–32 µin Ra	16–63 µin Ra	As low as 8 µin Ra with polishing passes
Tooling System	Automatic Tool Changer (ATC), 10–30 tools	ATC with rotary indexing	High-speed ATC, 20–40 tools, HSK or CAT spindles	Live tooling available for mill-turn	Precision-ground carbide and diamond tooling used
Applications	Flat surfaces, pockets, holes	Impellers, multi-face parts	Aerospace components, molds, complex contours	Shafts, bushings, rotational parts	Medical devices, aerospace fittings, sealing surfaces

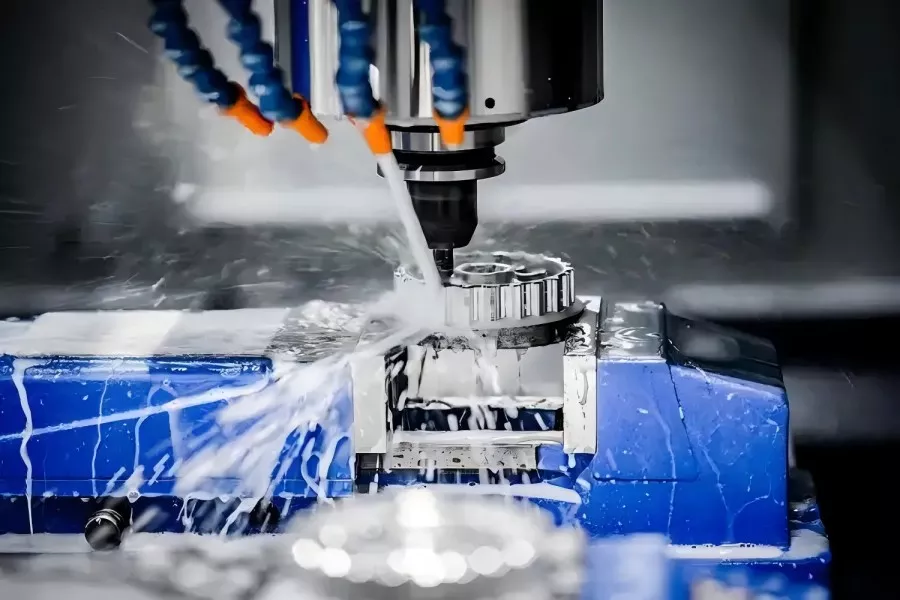

All processes are supported by CAD/CAM integration (SolidWorks, Fusion 360, Mastercam), in-process probing, and post-machining CMM verification to ensure compliance with tight tolerance requirements. Material selection influences toolpath strategy, feed rates, and coolant use—aluminum allows high-speed cutting, while steel requires rigid setups and lower RPMs. Engineering plastics like ABS and nylon are machined with sharp tools and optimized feeds to prevent melting or burring.

---

From CAD to Part: The Process

Honyo Prototype 3-Axis CNC Machining Workflow

Upon receiving a customer CAD file via our secure online portal, Honyo initiates a structured manufacturing sequence optimized for precision and efficiency. The process begins with automated file validation to ensure compatibility with ISO 10303-21 (STEP) or native CAD formats. Any geometric inconsistencies or unit mismatches trigger immediate notification to the customer for resolution prior to quoting.

AI Quote Generation
Our proprietary AI engine analyzes the validated CAD geometry, material specifications, and requested tolerances against real-time machine availability, tooling databases, and material costs. The system generates a preliminary quote within 2 business hours, detailing base machining costs, material surcharges, and estimated lead time. This AI model reduces initial quoting errors by 35% compared to manual methods but requires final engineering verification.

Engineering DFM Review
All quotes undergo mandatory Design for Manufacturability (DFM) analysis by senior manufacturing engineers. This phase identifies critical 3-axis limitations such as:

Design Aspect	Common Issue	Honyo Resolution Path
Undercuts	Non-machinable features without 4th/5th axis	Feature redesign suggestions or fixture solutions
Thin Walls	Deflection during milling ( <1.5mm)	Adjust feed rates or recommend alternative materials
Deep Cavities	Tool reach limitations (>3x tool dia)	Step-down milling strategy proposal
Tight Tolerances	±0.025mm on non-critical features	Tolerance relaxation recommendations

The DFM report includes annotated CAD markups and is shared with the customer within 24 hours of quote generation. Customer approval or design revisions are required before production release.

Production Execution

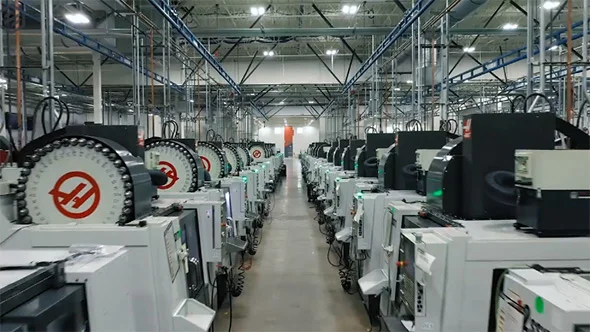

Approved orders move to our HAAS VF-2SS vertical machining centers with 3-axis capability. Material procurement follows JIT principles using pre-qualified suppliers (e.g., AL6061-T6 from ALCOA, 304SS from Outokumpu). Machining employs:
Toolpath simulation via Mastercam 2024 to prevent collisions
In-process CMM verification at critical stages for tolerances ≤±0.05mm
Dedicated fixturing per work order to minimize setup time
Real-time machine monitoring for spindle load and vibration thresholds

Typical lead time ranges from 5-12 business days depending on complexity, with 85% of standard parts delivered within 8 days. Material availability status is tracked in our ERP system and communicated proactively if delays occur.

Delivery and Documentation
Finished parts undergo final inspection per AS9102B first-article requirements for aerospace clients or ISO 2768-mK for commercial orders. Each shipment includes:
Dimensional inspection report with actual vs. nominal measurements
Material certification traceable to mill test reports
Cleanroom-packaged components with anti-corrosion protection
Digital delivery confirmation via customer portal

All domestic shipments use EXW (Incoterms® 2020) with FOB origin options available. International deliveries include customs documentation compliant with HTS codes for machined metal components. Honyo maintains 99.2% on-time delivery for 3-axis CNC projects through buffer capacity allocation across our three production cells.

For complex geometries requiring 4th-axis operations, our engineering team provides seamless transition guidance without quoting rework. Contact our manufacturing engineering group directly for process capability analysis specific to your component requirements.

---

Start Your Project

Looking for precision parts produced on a 3-axis CNC machine? Honyo Prototype offers high-quality machining services with fast turnaround times. Our manufacturing facility is located in Shenzhen, leveraging advanced equipment and expert engineering support to deliver accurate, repeatable results for prototyping and low-volume production.

For project inquiries or quotes, contact Susan Leo at [email protected]. Let us support your next development cycle with reliable, cost-effective CNC machining solutions.

---
